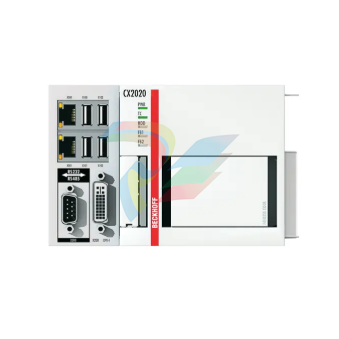

Beckhoff CX2020 | Basic CPU module (service phase)

CX2020 | Basic CPU module (service phase)

The CX2020 has a 1.4 GHz Intel® Celeron® CPU, it is fanless and has no rotating components.

In addition to the CPU and chipset, the CX2020 also contains the main memory with 2 GB RAM as standard.

4 GB is possible as an option. The controller boots from the CFast flash memory card.

The basic configuration of the CX2020 includes a CFast memory card, two independent Gbit Ethernet interfaces, four USB 2.0 interfaces and a DVI-I interface.

The CPU has a 128 kB NOVRAM persistent data memory for situations where no UPS is used.

The unit can optionally be ordered with a fieldbus or serial interface. Other components from the CX2000 family can be connected via the multi-pin terminals on either side.

The operating system is Microsoft Windows Embedded Compact 7 or Windows 10 IoT Enterprise 2016 LTSB.

TwinCAT automation software transforms a CX2020 system into a powerful PLC and motion control system that can be operated with or without visualization.

Due to its high-performance the CX2020 can be used for interpolating 3-D path movements with TwinCAT NC I.

Up to four modules can be connected to the basic CPU module. The connection order is irrelevant.

Internally the modules are connected via PCI Express® and can be connected subsequently to the CPU in the field.

The power supply for the CPU module comes from a CX2100 power supply module, which is connected on the right-hand side of the CPU.

Two further CFast memory card modules (CX2550-0010) can be connected between the power supply unit and the CPU, so that a total of up to three CFast cards can be used.

RAID can be used in situations where more than one CFast card is used.

The extended operating temperature range between -25 and +60°C enables application in climatically demanding situations.

Technical data    CX2020

Processor    Intel® Celeron® 827E 1.4 GHz

Number of cores    1

Flash memory    20 GB or 40 GB CFast flash card (depending on the operating system), optionally extendable

Main memory    2 GB DDR3 RAM (expandable ex factory to 4 GB)

Interfaces    2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0. 1 x optional interface

Cooling    passive, optionally with active cooling ex factory

Diagnostics LED    1 x power, 1 x TC status, 1 x flash access, 2 x bus status

Clock    internal battery-backed clock for time and date (battery exchangeable)

Operating system    Windows Embedded Compact 7. Windows Embedded Standard 7. Windows 10 IoT Enterprise 2016 LTSB, TwinCAT/BSD

Control software    TwinCAT 2 runtime

TwinCAT 3 runtime (XAR)

I/O connection    via power supply module (E-bus or K-bus, automatic recognition)

Power supply    24 V DC (-15%/+20%)

NOVRAM    128 kB

Max. power consumption    21 W

Weight    approx. 1160 g

Dimensions (W x H x D)    144 mm x 99 mm x 91 mm

Relative humidity    95%, no condensation

Operating temperature    -25…+60°C

Storage temperature    -40…+85°C

Vibration/shock resistance    conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission    conforms to EN 61000-6-2/EN 61000-6-4

Protection rating    IP20

Approvals/markings    CE, UL

TwinCAT 3 platform level    Performance Plus (50); please see here for an overview of all the TwinCAT 3 platform level

Ordering information

CX2020-0100    CPU module, no operating system, no TwinCAT

CX2020-0110    CPU module, Microsoft Windows Embedded Compact 7. no TwinCAT

CX2020-0111    CPU module, Microsoft Windows Embedded Compact 7. TwinCAT 2 PLC runtime

CX2020-0112    CPU module, Microsoft Windows Embedded Compact 7. TwinCAT 2 NC runtime

CX2020-0113    CPU module, Microsoft Windows Embedded Compact 7. TwinCAT 2 NC I runtime

CX2020-0115    CPU module, Microsoft Windows Embedded Compact 7. TwinCAT 3 runtime (XAR), no licenses included

CX2020-0120    CPU module, Microsoft Windows Embedded Standard 7 P, 32 bit, no TwinCAT

CX2020-0121    CPU module, Microsoft Windows Embedded Standard 7 P, 32 bit, TwinCAT 2 PLC runtime

CX2020-0122    CPU module, Microsoft Windows Embedded Standard 7 P, 32 bit, TwinCAT 2 NC runtime

CX2020-0123    CPU module, Microsoft Windows Embedded Standard 7 P, 32 bit, TwinCAT 2 NC I runtime

CX2020-0125    CPU module, Microsoft Windows Embedded Standard 7 P, 32 bit, TwinCAT 3 runtime (XAR), no licenses included

CX2020-0130    CPU module, Microsoft Windows Embedded Standard 7 P, 64 bit, no TwinCAT

CX2020-0135    CPU module, Microsoft Windows Embedded Standard 7 P, 64 bit, TwinCAT 3 runtime (XAR), no licenses included

CX2020-0140    CPU module, Microsoft Windows 10 IoT Enterprise 2016 LTSB, 32 bit, no TwinCAT

CX2020-0141    CPU module, Microsoft Windows 10 IoT Enterprise 2016 LTSB, 32 bit, TwinCAT 2 PLC runtime

CX2020-0142    CPU module, Microsoft Windows 10 IoT Enterprise 2016 LTSB, 32 bit, TwinCAT 2 NC runtime

CX2020-0143    CPU module, Microsoft Windows 10 IoT Enterprise 2016 LTSB, 32 bit, TwinCAT 2 NC I runtime

CX2020-0150    CPU module, Microsoft Windows 10 IoT Enterprise 2016 LTSB, 64 bit, no TwinCAT

CX2020-0155    CPU module, Microsoft Windows 10 IoT Enterprise 2016 LTSB, 64 bit, TwinCAT 3 runtime (XAR), no licenses included

CX2020-0185    CPU module, TwinCAT/BSD, TwinCAT 3 runtime (XAR), no licenses included

Options

CX2900-0010    Operating system preequipped on 2½-inch HDD/SSD for CX20x2 and CX20x3.

Requires the extension module CX2550-0020 and one 2½-inch HDD/SSD.

CX2900-0011    Basic CPU module without 20 GB CFast flash card, less price

CX2900-0012    Basic CPU module without 40 GB CFast flash card, less price

CX2900-0039    40 GB CFast card, 3D flash, extended temperature range, instead of 20 GB CFast card

CX2900-0043    80 GB CFast card, 3D flash, extended temperature range, instead of 20 GB CFast card

CX2900-0045    80 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card

CX2900-0047    160 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card

CX2900-0200    “Active cooling”: factory conversion of the CX2020 CPU module for active cooling in order to enable flexible

installation positions (see documentation). Active cooling takes place via a fan cartridge. This option requires the use of a power supply unit type CX2100-0014 or CX2100-0914.

CX2900-0204    memory extension to 4 GB DDR3 RAM, instead of 2 GB DDR3 RAM

Accessories

CX1900-0101    DVI-to-VGA passive adaptor for connecting a standard desktop VGA monitor to the CX system (singles out the VGA signals of the DVI-I interface).

CX2900-0026    20 GB CFast card, 3D flash, extended temperature range (only for Windows CE or TwinCAT/BSD operating systems)

CX2900-0038    40 GB CFast card, 3D flash, extended temperature range

CX2900-0040    80 GB CFast card, 3D flash, extended temperature range

CX2900-0042    160 GB CFast card, 3D flash, extended temperature range

CX2900-0101    Housing locking clips (black) for the CX52x0. CX53x0. CX56x0 and CX20xx series

10 locking pin sets (each set consisting of two pieces)

CX2900-0102    Cover for left-side module bus connector, 5 pieces

CX2900-0103    Spare fan cartridge for CX20xx with fan option

– cartridge consisting of chassis and 60 mm fan

– simple exchange in the field due to wireless installation

– dimensions (W x H x D) 67 x 62 x 16 mm
