HIMax-TECHNICALFACTS

Flexible Safety for Maximum Profitability

HIMax is a flexible platform for critical production processes that you can never afford to have go down. HIMax adapts to all I/O-count, response-time and fault-tolerance requirements as well as centralized and distributed applications. HIMax delivers availability for life by enabling uninterrupted system operation throughout your plant’s life cycle. Hardware and software changes can be performed without system interruption. Alternative CPU modules make HIMax suitable for meeting high performance and critical control requirements as well as for use in small and mid-sized safety applications.

HIMax systems

 • SIL 3, PL e

 • SIL 4 CENELEC

 • Nonstop operation

 • Maximum performance

 • Maximumconfiguration f lexibility for life

 • Different mechanical concepts

 • Small, mid-sized and large applications

Certificates/standards

 • IEC 61508:2010, Part 1–7

 • IEC 61511:2004, Part 1–3

 • ANSI/ISA-84.00.01-2004

 • ENISO13849-1:2008 (PL e)

 • EN 62061:2005

 • EN50156-1:2004

 • EN12067-2:2004

 • EN 298:2012

 • EN61131-2:2007

 • EN61000-6-2:2005

 • EN61000-6-4:2007 + A1:2011

 • EN54-2:1997/A1:2006

 • EN50130-4:1998-2003

 • EN 50495:2010

 • ANSI/ISA-S 71.04 Class G3 (Tropicalization)

 • UL(UL508)

 • cUL(CSA-C22.2 No. 142)

 • FM CLASS 1 DIV2

 • Achilles Level I Certification

 • EN50126:1999 (SIL 4)

 • EN50129:2003 (SIL 4)

 • EN50128:2011 (SIL 4)

 • BUREAUVERITAS

 • DNV(DETNORSKEVERITAS)

 • Lloyd’s Register Type Approval

 • Russia EAC

 • NFPA 72:2010, 85:2011, 86:2011

 • EN60079-15:2010 ATEX(Zone2, T4), IEC Ex (Zone 2, T4)

 • EN 50271:2010

 • ABSDesignAssessment Additional certificates available on website

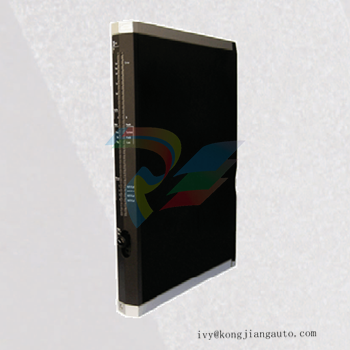

List of Modules

Processormodule X-CPU01 Forhighperformanceandcriticalcontrolrequirements

Processormodule X-CPU31 Forsmallandmid-sizedsafetyapplications

Systembusmodule X-SB01

Communicationmodule X-COM01 4xRJ-45,2x9-poleD-Sub,upto6differentprotocols

Input modules

Digital inputmodule X-DI6401 64channels,24VDC,SIL3

Digital inputmodule X-DI6451 64channels,24VDC

Digital inputmodule X-DI3201 32channels,24VDC,SIL3

Digital inputmodule X-DI3202 32channels,8.2VDC,proximityswitch, linemonitoring,SIL3

Digital inputmodule X-DI3203 32channels,48VDC,SIL3

Digital inputmodule X-DI3204 32channels,24VDC,SOE,SIL3

Digital inputmodule X-DI3205 32channels,8.2VDC,proximityswitch, linemonitoring,SOE,SIL3 Digital inputmodule X-DI3251 16channels,120VAC,SIL3

Digital inputmodule X-DI3252 32channels,8.2VDC,proximityswitch, linemonitoring

Digital inputmodule X-DI1601 16channels,120VAC,SIL3

Analoginputmodule X-AI1651 16channels,0/4…20mA,± 280mV,galvanicallyisolated,thermocoupleTC,Pt100

Analoginputmodule X-AI3201 32channels,4...20mA, linemonitoring,SIL3

Analoginputmodule X-AI3202 32channels,4...20mA, linemonitoring,SOE,SIL3

Analoginputmodule X-AI3251 32channels,0/4...20mA, linemonitoring

Countermodule X-CI2401 24channels,0...20kHz,SIL3

Countermodule X-CI2451 24channels,0...20kHz

Output modules

Digitaloutputmodule X-DO3201 32channels,24VDC,0.5A,short-circuitmonitoringLS, individualchannelshut-off,SIL3

Digitaloutputmodule X-DO3251 32channels,24VDC,0.5A,protectedoutputs,groupshut-off

Digitaloutputmodule X-DO2401 24channels,24VDC,0.5A, linemonitoringLS/LB, individualchannelshut-off,SIL3

Digitaloutputmodule X-DO2402 24channels,48VDC,0.5A, linemonitoringLS/LB, individualchannelshut-off,SIL3

Relayoutputmodule X-DO1201 12channels,230VAC/DC,currentmeasurement,cyclecounting,SIL3

Digitaloutputmodule X-DO1202 12channels,24VDC,2A,short-circuitmonitoringLS, individualchannelshut-off,SIL3

Relayoutputmodule X-DO1251 12channels,230VAC/DC

Analogoutputmodule X-AO1601 16channels,4...20mA,pairwisegalvanicallyisolated

Analogoutputmodule X-AO1651 16channels,4...20mA

Furthermodules

HARTcommunicationmoduleX-HART320132modems,SIL3,X-AI3201,X-AI3202,X-AI3251,X-AO1601,X-AO1651

Overspeedtripmodule X-MIO7/601 3counter,4digital input,5digitaloutput,1relaychannel,SIL3

Dimensions

Sizeofmodules All 310 x 29 x 230 mm

Specificationsaresubjecttochange

Highlights

• XMRarchitectureandintegratedredundancymanagementdeliver“availabilityforlife”

 • Uniquecommon-causeprotection

 • Allchanges,additionsandmaintenanceproceduresarepossiblewithoutstopping aHIMaxsystem

 • CPUself-educateswhenprocessormoduleisreplaced

 • Prooftestscanbeconductedonline

 • Storesupto2,500diagnosticentriesintheprocessormoduleand500entriesper I/Omoduleautomatically

 • Multitasking–runupto32userprogramssimultaneously

 • Sequenceofevent(SOE),storagefor5,000events,1msresolutionquality

 • Redundantintegratedandprotectedpowerdistribution

 • Twoorthreewiringinputs/outputsperchanneltohelpeliminateadditionalwiring

 • Remoterackfunctionalityenablesstartopology

 • HIMax–HIMatrixPES,redundantlinkviaSafeEthernet

 • OptimizeprocesssimulationandoperatortrainingwiththeHIMaxSafetySimulatorX-OTS
