AMAT 0010-00019 Analog Power Supply Assembly

AMAT 0010-00019 | Analog Power Supply Assembly

Introduction

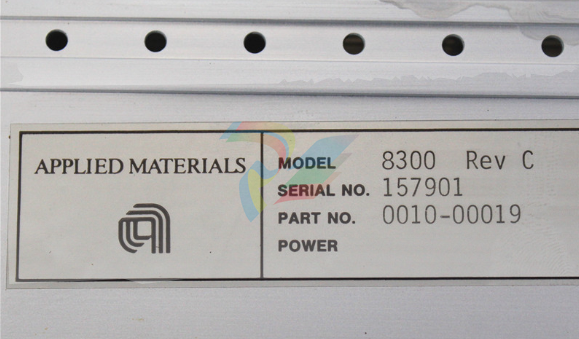

The AMAT 0010-00019 is a critical Analog Power Supply Assembly developed by Applied Materials (AMAT) for use in semiconductor manufacturing platforms.

As a core power regulation component, it provides stable and precise voltage outputs required for sensitive analog control circuits.

This assembly is frequently utilized within the 8300 Hexode series and other legacy AMAT systems to ensure the accuracy of sensor feedback and the consistency of plasma control modules.

Technical Parameter Table

Unique Product Description

Engineered for high-reliability semiconductor environments, the AMAT 0010-00019 serves as the backbone for analog signal integrity. Unlike standard power supplies,

this assembly is designed with low-ripple architecture to prevent electrical noise from interfering with delicate process measurements.

Its robust build quality ensures long-term stability under the continuous 24/7 duty cycles of modern fabrication facilities,

making it an essential replacement part for maintaining system uptime in legacy AMAT configurations.

Product Advantages and Features

Low Noise Floor: Specifically filtered to support sensitive analog input/output boards.

Seamless Integration: Designed as a direct OEM replacement for 0010-series power modules.

Thermal Management: Features passive or integrated heat dissipation to ensure stable voltage even in high-temperature racks.

Legacy Support: Critical for extending the operational life of 8300 Hexode and similar systems.

High Precision: Maintains strict voltage tolerances to ensure process repeatability.

Related Models

AMAT 0010-00017: Ion TC/AC Control Module (often used in the same power loop).

AMAT 0100-11000: PWB Analog Input Board (directly powered by this assembly).

AMAT 0010-00028: System Power Supply (+/-15V variant).

AMAT 0100-00022: PCB Interconnect PWB.

Other Models in the Same Series

The 0010 Series consists of various specialized sub-assemblies for AMAT mainframes:

0010-00016: Exhaust Panel System Control Assembly.

0010-00024: N2 Purge Panel Assembly.

0010-09297: 15V Precision Power Supply.

0010-00701: HE Pressure Control Assembly.

Application Cases

Etch Systems (8300 Hexode): Provides the reference power for ion gauges and analog control loops.

Chemical Vapor Deposition (CVD): Supports the analog feedback systems used in gas flow and pressure monitoring.

Legacy Maintenance: A preferred component for global refurbishing centers specializing in extending the life of 200mm semiconductor equipment.

Installation and Maintenance

Installation:

Power Down: Ensure the mainframe AC breaker is locked out before removal.

ESD Protection: Use a grounded wrist strap to prevent electrostatic discharge to the internal analog boards.

Connector Check: Verify that all multi-pin connectors are free of oxidation before seating the unit.

Maintenance:

Voltage Calibration: Periodically verify the DC output rails using a calibrated digital multimeter.

Airflow: Ensure the surrounding rack area is free of dust to maintain optimal cooling.

Visual Inspection: Check for any signs of capacitor bulging or discoloration during scheduled PM (Preventative Maintenance).
