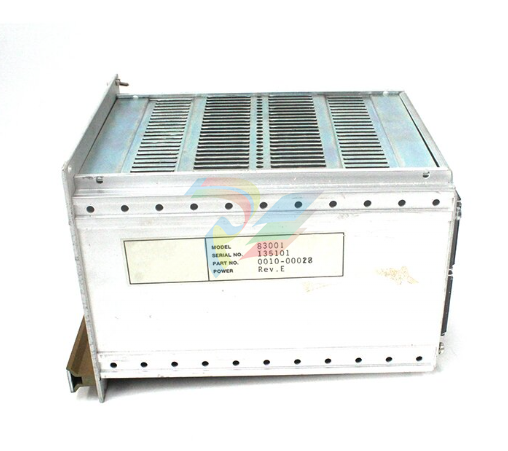

AMAT 0010-00028 Power Supply Module

AMAT 0010-00028 is a specialized 15 Volt DC Power Supply Module specifically engineered for Applied Materials 8300 Series semiconductor manufacturing platforms.

As a core power conversion component, it provides the regulated low-voltage DC current necessary to drive the tool's sensitive control logic, sensor arrays, and low-power automation subsystems.

Technical Parameter Table

Related Models

The 0010-00028 is often found in the same Power Distribution Assembly (PDA) or rack as these components:

0010-00017: Ion TC/AC Control Module (Model 8300M).

0010-00015: AC Outlet System Controller.

0010-00032: Turbo Control Interface Assembly.

0010-00033: VME System Controller (Basic).

Application Cases

In the AMAT 8300 architecture, this 15V module serves several critical functions:

Sensor Powering: Providing the stable reference voltage for Thermocouple (TC) gauges and ion gauges used for vacuum monitoring.

Logic Gates: Supplying secondary power to various PCB assemblies that manage the tool's internal "handshake" signals.

8300M Maintenance: Acting as a drop-in replacement part for aging power systems in 200mm fabrication lines to prevent tool-wide crashes caused by voltage sagging.

Product Advantages and Features

Precision Regulation: Designed with high noise rejection to ensure that sensitive analog measurements (like vacuum pressure) are not distorted by electrical ripple.

Legacy System Optimization: Specifically tuned for the electrical load profiles of the 8300 series, ensuring longer life cycles than generic industrial power supplies.

Plug-and-Play Integration: Features standardized AMAT-coded connectors to prevent wiring errors during field replacement.

Robust Thermal Design: Engineered to operate within the dense, high-heat electronics cabinets of a semiconductor tool.

Other Models in the Same Series

The 0010 series represents early-to-mid generation assembly components for AMAT:

0010-00021: Related system interface module.

0010-00040: Blade Drive Assembly (Robot control hardware).

0010-07213: ESC/RF Assembly (300mm transition modules).

Installation and Maintenance

Installation: Ensure the system's main AC breaker is locked out. Slide the module into the designated power tray. Verify that all grounding straps are securely attached to the chassis to prevent electrical noise.

Maintenance: Check the output voltage at the designated test points every 12 months.

 If the voltage drifts outside of a +/- 0.5V range, the unit should be calibrated or replaced to avoid erratic tool behavior.

Troubleshooting: If the system reports "TC Gauge Fail" or "VME Bus Alarms," the 0010-00028 is a primary suspect. Check for signs of thermal stress on the output capacitors.

Unique Product Description

The AMAT 0010-00028 is the "electrical foundation" for the Applied Materials 8300 platform. In the delicate environment of wafer processing, inconsistent power leads to inconsistent results.

By providing a rock-solid 15V DC rail, this power supply module ensures that the tool's brain and eyes (sensors) stay perfectly calibrated. Its rugged, industry-proven design has made it a staple for fabs globally that rely on the enduring performance of the AMAT 8300 fleet.
