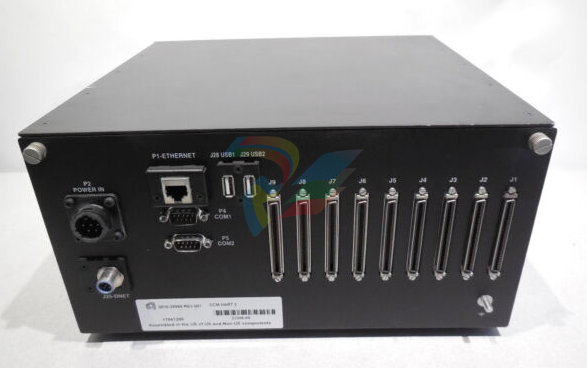

AMAT 0010-29958 CCM HART 3 Mainframe Control Assembly

AMAT 0010-29958 | CCM HART 3 Mainframe Control Assembly

Introduction

The AMAT 0010-29958 is a specialized CCM (Chamber Control Module) HART 3 assembly manufactured by Applied Materials.

It serves as a central control interface within the mainframe electronics of advanced semiconductor processing tools.

This module is specifically designed to facilitate communication and power management for HART (Highway Addressable Remote Transducer) compatible sensors and actuators,

 ensuring precise synchronization between the system controller and chamber-level hardware in Endura, Centura, or P5000 platforms.

Technical Parameter Table

Unique Product Description

The AMAT 0010-29958 is a critical "intelligent" interface that bridges the gap between digital system commands and analog field instrumentation.

By utilizing the HART 3 protocol, this assembly allows for simultaneous digital and analog signaling, enabling the tool to perform advanced diagnostics and calibration on sensors without interrupting the primary process signal.

Its robust 2.45 kg chassis is engineered for the high-uptime demands of 200mm fabrication lines, providing a stable, noise-shielded environment for the sensitive CCM electronics that govern gas flow, pressure, and temperature monitoring.

Product Advantages and Features

Dual-Signal Communication: Supports the HART protocol for enhanced device management and remote configuration.

Mainframe Integration: Specifically balanced for the CCM (Chamber Control Module) architecture of AMAT 5000/5200/5500 platforms.

Enhanced Diagnostics: Allows operators to retrieve device status and secondary process variables in real-time.

Signal Integrity: Features high-quality internal shielding to prevent electromagnetic interference from RF generators.

Reliability: Built to OEM standards, ensuring long-term compatibility with legacy system software.

Related Models

AMAT 0010-29957: Previous generation CCM interface module.

AMAT 0010-20003: System Controller Card Cage (housing for this assembly).

AMAT 0100-01950: Associated Arc Interrupt PCB.

AMAT 0010-59798: Ceramic Heater control interface often managed via CCM.

Other Models in the Same Series

The 0010-29xxx series includes various specialized mainframe control modules:

0010-29959: High-speed digital I/O variant.

0010-29100: Power distribution control assembly.

0010-29412: Vacuum system monitor module.

Application Cases

Chamber Monitoring: Used to interface with mass flow controllers (MFCs) and pressure transducers that require HART-based feedback.

Legacy Tool Refurbishment: A common replacement part for 200mm Centura/Endura tools undergoing a "life extension" or "automation upgrade."

Process Control Precision: Employed in CVD and Etch processes where real-time secondary sensor data is vital for maintaining thin-film uniformity.

Installation and Maintenance

Installation:

ESD Protocol: Always use an ESD-safe wrist strap and conductive mat when handling the 0010-29958 to protect CMOS components.

Backplane Check: Inspect the card cage backplane for bent pins before sliding the module into its slot.

Software Sync: Ensure the system software recognizes the HART 3 interface after power-up; a re-initialization of the CCM may be required.

Maintenance:

Pin Cleaning: Periodically clean the gold-plated finger connectors with electronic-grade isopropyl alcohol (IPA).

Status LEDs: Regularly monitor the diagnostic LEDs on the faceplate for "Health" or "Fault" indications.

Firmware: During major PMs, check if the module requires firmware updates to maintain compatibility with new sensor types.
