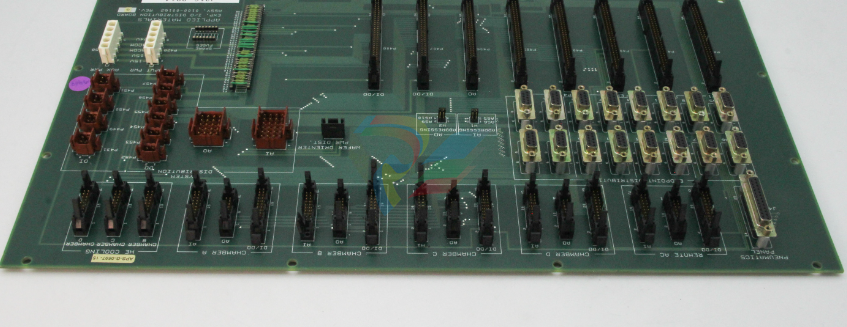

The AMAT 0100-00162 is a specialized Dual Channel Serial Communication Board manufactured by Applied Materials.

Designed for the VME (Versa Module Europa) bus architecture, this board acts as the critical data link between the system’s main controller and external peripheral devices.

It is a core component in the electronics rack of AMAT Centura, Endura, and P5000 systems, facilitating high-speed, reliable communication with subsystems such as RF generators, heat exchange controllers, and remote gas panels.

Technical Parameter Table

Unique Product Description

The AMAT 0100-00162 is engineered to maintain data integrity in the high-noise environments of semiconductor fabrication.

While standard serial cards may suffer from packet loss due to electromagnetic interference (EMI) from plasma sources, the 0100-00162 features enhanced signal conditioning and optical isolation on its communication lines.

This ensures that command strings sent to critical subsystems—like a temperature setpoint to a chiller or a power level to an RF match—are received without corruption.

Its dual-channel design allows for the consolidation of multiple peripheral links onto a single VME slot, optimizing space within the system controller's card cage.

Product Advantages and Features

Dual-Channel Versatility: Operates two independent serial links simultaneously, reducing the need for multiple communication cards.

EMI Resilience: Built-in filtering and shielded circuitry specifically designed for the RF-heavy environment of etch and deposition tools.

Seamless Bus Integration: Fully compliant with AMAT’s VME backplane protocols for immediate recognition by the system software.

Reliable Handshaking: Supports advanced hardware and software flow control to prevent data buffer overflows during high-traffic sequences.

Industrial Durability: Features high-grade components capable of sustained 24/7 operation in cleanroom environments.

Related Models

AMAT 0100-00001: Master CPU Controller Board.

AMAT 0100-00005: High-speed Serial Interface Board.

AMAT 0100-00137: Stepper Motor Controller Interface.

AMAT 0190-01121: Serial signal breakout cable assembly.

Other Models in the Same Series

The 0100-xxxxx series includes a wide variety of interface and logic boards:

0100-00161: Quad-channel serial interface variant.

0100-00202: Advanced motion control board.

0100-01051: Single Board Computer (SBC) module.

0100-20161: Digital I/O Expansion PWB.

Application Cases

RF Generator Control: Providing the communication link to adjust power levels and monitor reflected power in real-time.

Heat Exchanger Interface: Sending and receiving status data from the system’s Neslab or Edwards chiller units.

Remote Gas Panel Communication: Coordinating gas flow sequences with external valve manifolds and MFC controllers.

Installation and Maintenance

Installation:

ESD Protection: This board contains sensitive communication ICs. Always use a grounded wrist strap when handling.

Jumper Settings: Verify that the onboard jumpers for the serial standard (RS-232 vs RS-422) and VME address match the system's specific requirements.

Physical Insertion: Use the card cage's guide rails and injector handles to seat the board firmly; do not apply pressure directly to the electronic components.

Maintenance:

Port Inspection: Periodically check the external DB-9 or multi-pin connectors for bent pins or dust accumulation.

Loopback Testing: In case of communication errors, perform a loopback test via the system diagnostics to determine if the fault lies with the board or the external cable.

Cleaning: Use only electronic-grade isopropyl alcohol (IPA) to clean gold-plated edge connectors if oxidation is observed.
