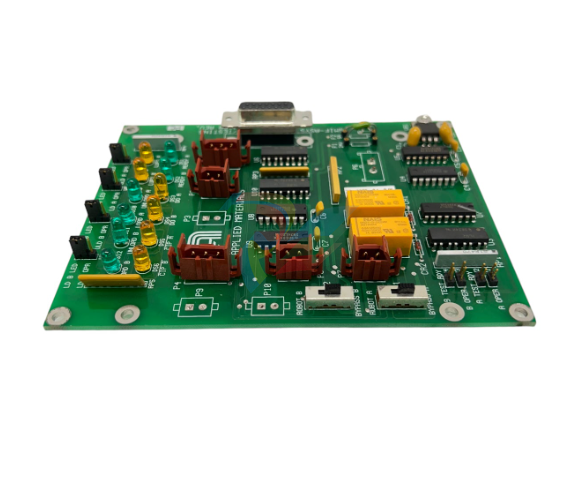

Applied Materials (AMAT) 0100-16009 SMIF-Asyst Wide Body Interlock PCB

Applied Materials (AMAT) 0100-16009: SMIF-Asyst Wide Body Interlock PCB

The AMAT 0100-16009 is a high-performance Interlock and Testing PCB Assembly designed for Applied Materials semiconductor platforms, specifically integrated with Asyst Technologies SMIF (Standard Mechanical Interface) systems.

This board serves as a critical safety and communication bridge, managing the interlock signals between the "Wide Body" load port and the mainframe tool.

It ensures that wafer transfer sequences only initiate when vacuum integrity and mechanical alignment are fully verified.

Technical Parameter Table

Related Models & Same Series

The 0100-16xxx series is often associated with the automation and factory interface (EFEM) components of AMAT tools.

0100-16008: Narrow Body SMIF Interface variation.

0100-00426: MCVD Dual TC Amp Interlock Board (Internal chamber interlock).

0040-22196: The complete panel mounting assembly that houses the 0100-16009.

0100-76113: 300mm Gen Rack Interlock Select PCB (Next-gen equivalent).

Application Cases

The 0100-16009 is essential for safe wafer handling in cleanroom environments:

SMIF Load Port Operation: Managing the handshakes between the Asyst SMIF pod opener and the AMAT factory interface.

Safety Interlocks: Preventing the tool's atmospheric robot from entering the load port area if the SMIF pod is not properly seated or the wide-body door is not sealed.

Field Diagnostics: Using the "W/Testing" capabilities of the board to trace signal faults between the automation layer and the mainframe controller.

Product Advantages and Features

Integrated Testing Ports: Features dedicated testing points that allow field engineers to probe I/O signals without dismantling the load port assembly.

Wide Body Optimization: Specifically tuned for the "Wide Body" Asyst enclosures, supporting broader pod footprints used in various specialized 200mm and early 300mm fab flows.

Hardware-Level Security: Operates on a physical interlock logic, providing a fail-safe that software glitches cannot override during wafer transfer.

High Durability: Engineered for high-cycle industrial automation, where load ports are accessed thousands of times per week.

Unique Product Description

The AMAT 0100-16009 is the "safety gatekeeper" for the tool's factory interface.

In a SMIF-controlled fab, the transition from the atmospheric pod to the tool's vacuum environment is the most vulnerable moment for wafer safety.

This board ensures that every mechanical move is double-checked by electrical interlocks.

It is the gold standard for fabs utilizing Asyst SMIF technology to maintain ultra-low contamination and zero-collision transfer protocols.

Installation and Maintenance

Warning: Improper installation of interlock boards can result in wafer breakage or tool collision. Only certified automation technicians should perform replacements.

Installation: Power down the EFEM/Load Port sub-system. Slide the 0100-16009 into its mounting bracket (typically 0040-22196).

Secure all DIN connectors and verify that the interlock jumpers match the tool's specific safety configuration.

Testing: After installation, utilize the onboard testing interface to run a "Load/Unload" dry cycle to confirm the interlock LEDs trigger at the correct mechanical intervals.

Maintenance: Periodically inspect the high-density interface pins for oxidation or "fretting," especially in fabs with high chemical humidity.
