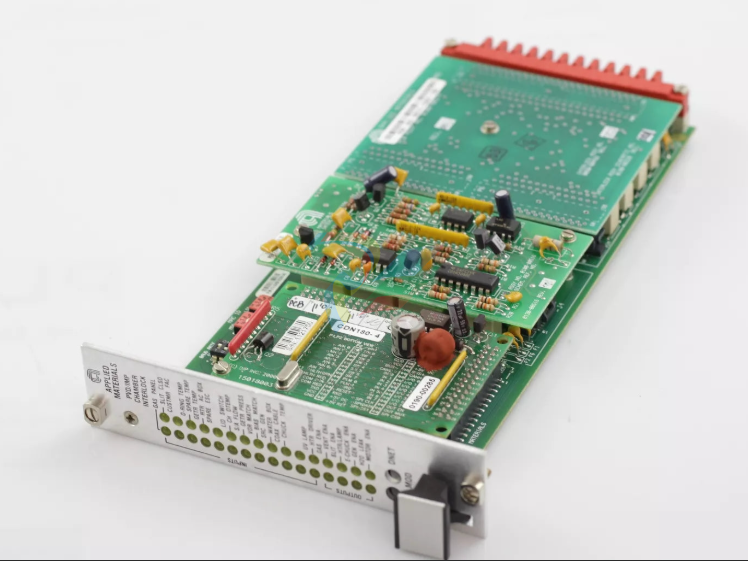

AMAT 0100-20458 high-reliability Configurable Interlock Personality Board

AMAT 0100-20458 is a high-reliability Configurable Interlock Personality Board manufactured for Applied Materials.

This PCB assembly acts as a critical safety and logic interface within the chamber control architecture, specifically designed to manage interlock signals for gas boxes and pre-clean chambers in advanced semiconductor platforms.

Technical Parameter Table

Related Models

The 0100-20458 is often part of a modular stack or shares compatibility with these components:

0090-02788: Pre-clean Chamber Interlock Assembly.

0090-02233: HDPCVD Interlock Control Module.

0100-00516: Chamber Interlock PCB (Base Board).

0090-00354: Transfer Interlock PCB (Configurable).

0130-20458: Software/Firmware specific revision code for this hardware.

Application Cases

This interlock board is utilized in high-risk zones where hardware state verification is mandatory:

TxZ Gas Boxes: Ensuring all gas valves are in a safe "Fail-Closed" state before allowing chamber access or maintenance.

Pre-clean Chambers: Synchronizing the interlock loop between the robotic transfer arm and the pre-clean vacuum environment.

HDPCVD (High-Density Plasma): Protecting the system from RF-induced damage by verifying that cooling and pressure parameters are met before plasma ignition.

Transfer Interlocks: Coordinating the safe movement of wafers through the mainframe to prevent collisions or vacuum loss.

Product Advantages and Features

Configurable Logic: Designed with "Personality" headers or jumpers that allow the board to be tuned for specific chamber types or gas configurations.

Fail-Safe Architecture: Built with hardware-level redundancy to ensure the system defaults to a safe state in the event of a power loss or CPU failure.

Diagnostic LEDs: Includes on-board status indicators for rapid troubleshooting of active interlocks, enabling technicians to quickly identify "open" safety loops.

High Shielding: Engineered with specialized grounding planes to resist the high levels of EMI/RFI found in plasma-rich environments.

Other Models in the Same Series

The 0100 series represents the core logical interconnects of AMAT tools:

0100-20063: PCB Assy for Thermocouple (TC) Gauges.

0100-01483: Contactor Interlock PCB (12" End).

0100-01363: Signal Conditioning PCB Assembly.

0100-00510: Standard Interlock Base Module.

Installation and Maintenance

Installation: Verify that the "Personality" settings (jumpers/switches) match the previous board's configuration. Align with the card cage guide rails and ensure the 0100-20458 is fully seated in the backplane before applying power.

ESD Protection: Extreme Caution. This board contains sensitive logic gates. Always use a calibrated ESD wrist strap and conduct repairs in a static-controlled zone.

Maintenance: Inspect the edge connectors for signs of carbon scoring or oxidation, which can cause intermittent "Interlock Open" alarms.

 Use only non-residue electronic contact cleaners.

Verification: After replacement, a full "Interlock Test" must be performed via the tool software to confirm that all safety parameters (E-Stop, door switches, gas valves) are reporting correctly.

Unique Product Description

The AMAT 0100-20458 is the "Safety Warden" of the Applied Materials control tower.

While other boards manage process timing, this Configurable Interlock Personality Card ensures that the process never starts—and immediately stops—if unsafe conditions are detected.

 By providing a bridge between physical sensors (gas valves, doors, vacuum levels) and the tool’s software, it protects the equipment, the environment, and the wafer yield with absolute precision.
