AMAT 0100-71047 safety and logic control module

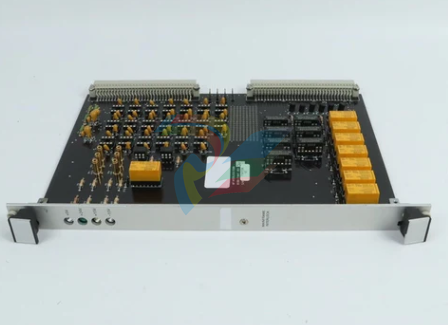

Applied Materials (AMAT) 0100-71047 is a critical safety and logic control module, specifically identified as the MF Interlock / 5500 PCB Board.

This board is a primary component within the AKT (Applied Komatsu Technology) 5500 series, which is used for Large Area Substrate processing (LCD and Flat Panel Displays).

It functions as the "Mainframe Interlock," ensuring that all hardware safety conditions are met before allowing the system to initiate high-voltage or high-pressure processes.

Technical Parameter Table

Related Models

The 0100-71047 works in tandem with other chamber and mainframe control boards in the AKT 5500 ecosystem:

0100-71113: Chamber Interlock 5500PX Board.

0100-71222: MF VME Interlocks #1 Board.

0100-71102: Chamber Control CVD 15K Board.

0100-71171: Chamber Interlock Gen7 Board.

Application Cases

This board is a safety watchdog for large-scale vacuum systems:

Mainframe Safety Monitoring: Monitors the status of load lock doors, transfer robot positions, and vacuum integrity across the AKT 5500 mainframe.

Emergency Shutdown (EMO): Acts as the hardware-level receiver for EMO signals, ensuring that power to hazardous subsystems is cut instantly if an alarm is triggered.

Process Authorization: Prevents the system software from opening gas valves or firing RF power if the "interlock chain" (vacuum, cooling water, and door status) is incomplete.

Product Advantages and Features

Redundant Safety Logic: Built with fail-safe circuitry to ensure that even a board-level component failure will default to a "Safe/Open" state.

High-Speed Fault Detection: Capable of interrupting system power in milliseconds to protect both the expensive substrate and the tool hardware.

RFI/EMI Shielding: Designed specifically for CVD environments where high-power radio frequency (RF) generators are active, preventing false interlock triggers.

Gold-Plated Connectors: Features high-reliability contact points to prevent oxidation in the chemical-rich environments of display manufacturing.

Other Models in the Same Series

0100-71048: Mainframe Interface Board.

0100-71049: Signal Distribution Module.

0100-71593: Logic Control Expansion Board.

Installation and Maintenance

Installation: Ensure the AKT tool is in a "Maintenance Mode" or completely powered down before insertion.

Slide the board into the designated interlock slot of the control rack, ensuring the rear pins are fully seated before securing the front panel.

Troubleshooting: This board often features a row of diagnostic LEDs. If a "Mainframe Interlock" error occurs on the tool console, check these LEDs to identify which specific safety loop (e.g., Water, Vacuum, or Door) is currently open.

Cleaning: Inspect the board for "whiskering" or dust buildup, which can cause high-resistance shorts in interlock loops.

Clean using only ESD-safe air and non-conductive electronics cleaner.

Unique Product Description

The AMAT 0100-71047 is the silent protector of the AKT 5500 platform.

 In the production of giant glass substrates for modern displays, a single valve opening at the wrong time can result in catastrophic tool damage.

The 0100-71047 provides the physical logic barrier that prevents such accidents.

It is not just a circuit board; it is the final hardware "handshake" that ensures the system is vacuum-tight, safely closed, and ready for high-precision chemical vapor deposition.
