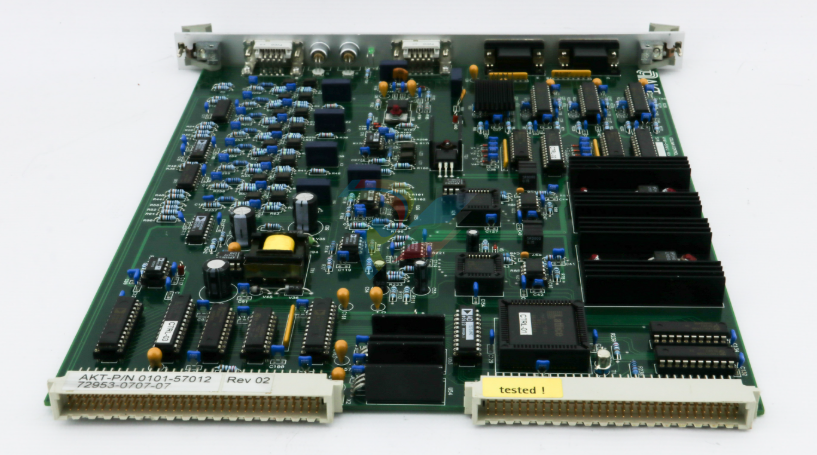

AMAT 0101-57012 AKT Column Control PCB (COL-C 50-10)

AMAT 0101-57012 is a high-precision electronic control component manufactured by Applied Materials (AMAT).

It is specifically identified as a PCB (Printed Circuit Board) Column Control unit, primarily utilized in the AKT series of equipment, which is widely used in the production of large-scale flat panel displays (FPDs) and thin-film transistor (TFT) arrays.

Introduction

The AMAT 0101-57012 (often associated with the COL-C 50-10 designation) is a critical board responsible for the regulation and synchronization of column-based control signals within AKT processing systems.

As display technology moves toward higher resolutions and larger glass substrates, the stability of the control electronics—such as this PCB—becomes essential for ensuring uniform electrical characteristics across the entire display panel.

Technical Parameter Table

Below are the general specifications for the AMAT 0101-57012 Column Control Board:

Related Models

The 0101-57012 is part of a specialized electronic ecosystem for AKT tools, often working with:

AMAT 0111-57012: A closely related version or upgraded assembly for the same control series.

AKT V2.0 Control Boards: The secondary generation of column management hardware.

AMAT 0101-XXXXX Series: Various power distribution and logic boards within the AKT display architecture.

Application Cases

Flat Panel Display (FPD) Manufacturing: Used in the deposition and etching phases of TFT-LCD and OLED panel production.

High-Precision Signal Routing: Managing complex signal arrays to ensure that column drivers across massive glass substrates receive synchronized data.

Legacy System Support: Vital for the maintenance and "life extension" of AKT 50K and 55K series tools still active in high-volume manufacturing environments.

Product Advantages and Features

Enhanced Signal Integrity: Built with high-grade multi-layer PCB materials to minimize electromagnetic interference (EMI) and signal crosstalk.

Industrial Durability: Designed for continuous 24/7 operation within the vacuum-isolated electronics racks of large-scale display tools.

Precise Synchronization: Engineered to handle high-frequency control signals with nanosecond-level timing accuracy.

Direct OEM Replacement: Ensures 100% compatibility with existing AKT control software, avoiding the "handshake" errors common with third-party repairs.

Other Models in the Same Series

AMAT 0101-57011: (Previous generation or alternate channel count)

AMAT 0101-57013: (Next-gen or high-bandwidth variant)

AMAT 0110-XXXXX: Power supply and driver interface boards for AKT systems.

Installation and Maintenance

Electrostatic Discharge (ESD) Protection: This board is highly sensitive to static. Always use a grounded wrist strap and ESD-safe workstation during installation.

Slot Alignment: Ensure the PCB is fully seated into the backplane of the control rack before engaging the locking levers.

Firmware Verification: After replacement, verify through the system diagnostic menu that the 0101-57012 is recognized and that the revision matches the tool's software requirements.

Visual Inspection: Regularly check the gold edge connectors for signs of oxidation or thermal stress during annual preventative maintenance (PM).

Unique Product Description

The AMAT 0101-57012 acts as the "brain" for column-level operations in the AKT display fabrication environment.

Its role in maintaining signal fidelity is what allows modern manufacturers to produce massive, high-definition screens without pixel defects or timing delays.

For fabrication facilities operating AKT Column Control V2 systems, the 0101-57012 is an indispensable asset for maintaining tool uptime and ensuring that every pixel on a 3000mm substrate is perfectly addressed.
