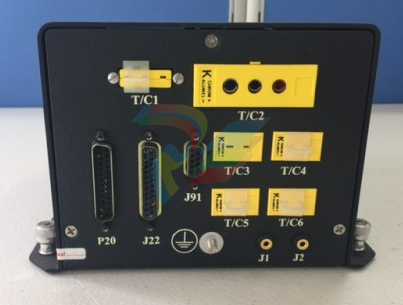

AMAT 0190-22205 6-Channel Temperature Controller

Introduction

The AMAT 0190-22205 (Revision 001) is a high-performance 6-Channel Temperature Controller primarily manufactured by Yamatake (Azbil) under the Silvia product line for Applied Materials.

This module is a critical component in the control architecture of 300mm wafer processing tools, such as the Centura and Reflexion platforms.

It is responsible for the precise regulation of heating elements within the process chamber, ensuring that thermal profiles remain consistent during sensitive deposition or polishing cycles.

Technical Parameter Table

Product Advantages and Features

Multi-Channel Precision: Manages up to 6 independent thermal zones simultaneously, allowing for uniform temperature distribution across the entire wafer surface.

High-Speed Feedback: Designed with the SDC10 control logic, providing rapid PID (Proportional-Integral-Derivative) response times to minimize thermal overshoot.

Industrial Hardening: Optimized for the harsh EMI (Electromagnetic Interference) environments found in plasma-enhanced CVD and etch chambers.

Reliable Integration: Explicitly engineered to communicate with the Applied Materials system controller, ensuring seamless software handshakes and error reporting.

Application Cases

Reflexion GT/HVM Polishing: Used in Chemical Mechanical Planarization (CMP) tools to control the temperature of the slurry or the polishing platen.

Chamber Heater Regulation: Managing multi-zone heater jackets in Centura or Endura mainframe chambers to prevent gas condensation or promote reaction stability.

Legacy Tool Refurbishment: A standard replacement part for fabs maintaining high-volume 300mm manufacturing lines that require original OEM thermal stability.

Other Models in the Same Series

The 0190-series features several variants optimized for different I/O and control requirements:

Unique Product Description

The AMAT 0190-22205 is the "thermal architect" of the process chamber.

While standard industrial controllers focus on basic setpoints, this 6-channel unit is specifically tuned for the non-linear thermal dynamics of semiconductor processing.

By managing six zones with a single module, it reduces the complexity of the control rack while providing the granular control necessary to eliminate "hot spots" that can lead to wafer defects.

Its integration with the Yamatake Silvia platform ensures it meets the strictest MTBF (Mean Time Between Failures) standards in the industry.

Installation and Maintenance

Installation: Ensure the system is powered down before inserting the controller into the specialized card cage.

Verify that all 6 thermocouple/heater connectors are seated firmly and that the grounding strap is secure to prevent electrical noise interference.

Configuration: Note that all parameter and program settings are typically loaded from the system's main computer.

Upon replacement, a "Learning" or "Autotune" cycle may be required via the tool's HMI.

Maintenance: Inspect the front-panel status LEDs. A flashing error code often indicates a mismatch in resistance from one of the heater zones or a disconnected thermocouple.

Cleaning: Use only ESD-safe cleaning procedures. Do not use compressed air directly on the internal circuitry if the housing is open.
