AMAT 0190-32372 Analog Input/Output (I/O) Board

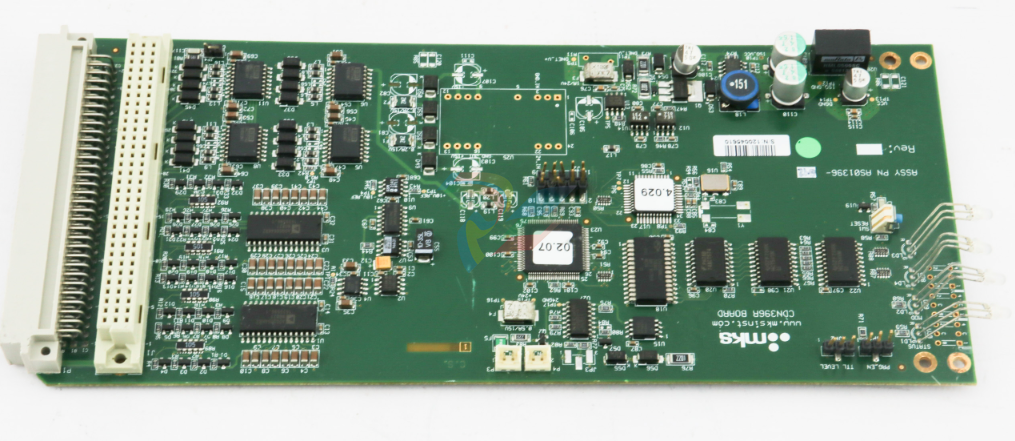

AMAT 0190-32372 is a specialized 300mm Analog I/O Interface Board manufactured by MKS Instruments (specifically the CDN396R series, model AS01396-6-12) for Applied Materials.

This PCB is a critical component in the control architecture of 300mm semiconductor wafer processing tools,

facilitating high-speed analog signal conversion and communication between the system controller and chamber-level sensors or actuators.

Technical Parameter Table

Related Models

These boards are often part of a coordinated MKS CDN-series I/O set within AMAT racks:

0190-25905: MKS CDN396R variant PCBA.

0190-27708: MKS CDN396R Board (AS01396-6-5 variant).

0190-24115: MKS CDN391R Digital I/O Card.

0100-01781: 300mm HDPCVD Chamber Distribution Board.

Application Cases

The 0190-32372 is used in high-precision feedback loops where analog data must be converted for digital processing:

Chamber Pressure Control: Interfacing with Baratron capacitance manometers to regulate vacuum levels.

Mass Flow Management: Coordinating with Analog-based Mass Flow Controllers (MFCs) for precise gas delivery.

HDP-CVD Systems: Managing power and signal distribution in 300mm High-Density Plasma Chemical Vapor Deposition chambers.

Signal Conditioning: Converting raw sensor voltage from thermal or pressure probes into actionable data for the mainframe.

Product Advantages and Features

Precision Signal Conversion: High-resolution A/D and D/A converters minimize signal noise in the sensitive wafer environment.

MKS Reliability: Built by MKS Instruments, the industry leader in vacuum and process control electronics.

300mm Optimization: Specifically tuned for the timing and data throughput requirements of advanced 300mm fab lines.

Multi-Channel Support: Allows for the simultaneous monitoring of multiple analog sensors from a single slot.

Other Models in the Same Series

The 0190 Series and CDN396R series represent a generation of high-speed interconnects:

0190-28651: CPCI-3840 Single Board Computer (often the master to this I/O board).

0190-32974: Comet RF Auto Match Controller (associated RF subsystem component).

0190-46809: Remote I/O Module for distributed control architectures.

Installation and Maintenance

Handling: This board is an ESD-sensitive device. Always use a grounded wrist strap.

Installation: Align the card with the sub-rack guide rails. Ensure the multi-pin DIN or cPCI-style connectors are clean. Firmly push until the board seats; if equipped with mounting plates, tighten captive screws to ensure a proper ground.

Maintenance: Check for firmware compatibility if replacing a board of a different revision (e.g., swapping REV 02 for REV 03). Inspect connectors for pin "walk-out" or oxidation if intermittent signal loss occurs.

Warning: Do not "hot-swap" this board unless the system manual explicitly states the backplane supports live insertion, as voltage spikes can damage the analog circuitry.

Unique Product Description

The AMAT 0190-32372 (MKS CDN396R) acts as the "sensory translator" for 300mm Applied Materials platforms.

While digital logic handles the commands, this board handles the reality of the chamber—converting physical pressures, flows, and temperatures into the digital language the tool understands.

By bridging the gap between the analog world of plasma physics and the digital world of process software, it ensures that every 300mm wafer is processed with the extreme repeatability required for modern node sizes.
