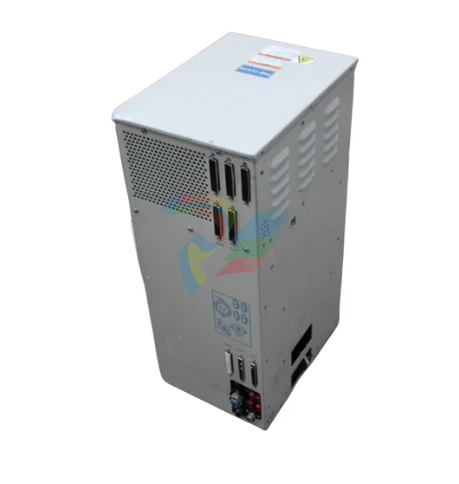

AMAT 0190-36787B ISAC CP I/O Block 2 (Top) - Revision B

AMAT 0190-36787B: ISAC CP I/O Block 2 (Top) - Revision B

The AMAT 0190-36787B is the upgraded Revision B of the ISAC CP I/O Block 2 (Top) assembly.

Designed for Applied Materials (AMAT) 300mm semiconductor platforms, this module is a core component of the Integrated System Area Controller (ISAC) architecture.

Revision B features enhanced electrical stability and revised internal trace routing to better handle the high-speed data throughput required by modern sub-10nm etching and deposition processes.

Technical Parameter Table

Parameter    Specification

Manufacturer    Applied Materials (AMAT)

Part Number    0190-36787B

Model Designation    ISAC CP I/O Block 2 (Top), Rev B

Application    300mm Mainframe Control (Centura/Endura/Producer)

Weight    Approx. 11.75 kg

Revision Differences    Enhanced Shielding & Revised Signal Pathways

I/O Protocol    Proprietary ISAC Parallel/Serial Interface

Mounting Position    Upper Electronics Rack / ISAC Tray

Product Advantages and Features

Backward Compatibility: Specifically designed to be a direct "drop-in" replacement for the standard 0190-36787. ensuring seamless tool upgrades.

Revision B Reliability: Includes improved capacitive filtering to mitigate "noise spikes" that can occur in high-power RF environments.

Optimized Airflow: The block layout is structured to facilitate better heat dissipation across the internal circuit boards compared to legacy versions.

Integrated Test Points: Features accessible voltage and signal test points on the front interface, allowing for "live" diagnostics without dismantling the rack.

Related Models & Series

This module belongs to the ISAC Generation 2 electronics series. It is almost always paired with:

0190-36788: The corresponding "Bottom" block for the ISAC controller.

0190-20122: VME-based Central System Controller.

0190-36511: DIP294 DeviceNet I/O modules used for distributed sensor monitoring.

0010-09287: Associated backplane interface assemblies.

Application Cases

HVM (High Volume Manufacturing): Utilized in 300mm logic and memory fabs where tool uptime and signal consistency are critical for yield.

Chamber Synchronization: Managing the high-speed handshake between the tool’s robot arm and the slit valves to maximize "Wafers Per Hour" (WPH).

Process Monitoring: Converting raw analog signals from chamber vacuum gauges and gas flow controllers into digital data for the system CPU.

Unique Product Description

The AMAT 0190-36787B represents the "refined" version of the ISAC I/O architecture. While the original 36787 provided the foundation, the "B" revision focuses on signal integrity under load.

In a modern fab environment flooded with electromagnetic noise from multiple RF generators, the 0190-36787B acts as a "hardened" gatekeeper, ensuring that control signals remain pure and timing remains precise down to the millisecond.

Installation and Maintenance

Installation Guidelines

Rev Check: Confirm your tool's software constants (S/W Constants) support the Revision B hardware profile.

Weight Management: At nearly 12kg, the module should be supported from underneath during insertion into the rack to prevent damage to the lower guide rails.

Grounding: Ensure the star-washers on the mounting screws are used to maintain a low-impedance ground path to the tool frame.

Maintenance Best Practices

Connector Reseating: During biennial (two-year) PM cycles, it is recommended to reseat the high-density ribbon cables to prevent "fretting" oxidation.

Thermal Monitoring: Use an infrared thermometer to check for "hot spots" on the module face during full-power plasma runs.

Cleaning: If the tool is located near chemical delivery lines, check the gold-plated pins for signs of "green-corrosion" (oxidation) and clean with electronics-grade contact cleaner if necessary.
