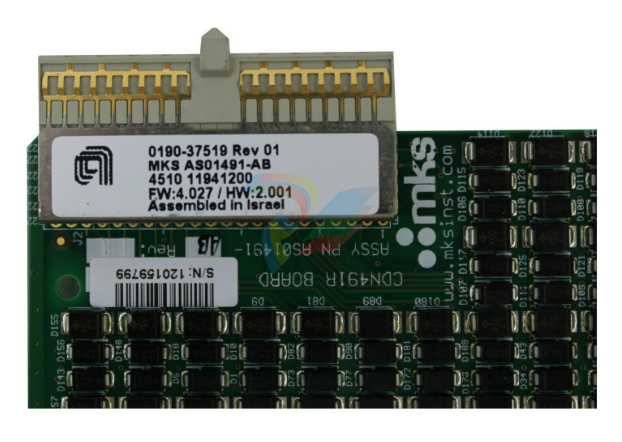

AMAT 0190-37519 high-precision RF (Radio Frequency) Interface Module

AMAT 0190-37519 is a high-precision RF (Radio Frequency) Interface Module manufactured by Applied Materials.

It is a critical component within the RF delivery system of semiconductor fabrication tools, specifically designed for Etch and CVD (Chemical Vapor Deposition) chambers.

This module acts as the communication and control link between the system’s central controller and the RF generators or match networks,

ensuring that plasma stability is maintained with millisecond accuracy during the wafer processing cycle.

Technical Parameter Table

Related Models

The 0190-37519 is part of a broader family of RF control hardware used in AMAT systems:

AMAT 0190-01967: Advanced RF Match Controller.

AMAT 0190-25642: RF Filter/Distribution Module.

AMAT 0010-35002: RF Generator Assembly (hosted by the 0190 series interface).

AMAT 0190-48210: Newer generation Digital RF Interface.

Application Cases

Plasma Etching: Managing the "Forward" and "Reflected" power signals to ensure a stable plasma sheath for sub-10nm feature etching.

PECVD Deposition: Controlling the RF bias to optimize the film density and stress of dielectric layers on 300mm wafers.

Chamber Cleaning: Coordinating the high-power RF cycles used during NF3 (Nitrogen Trifluoride) plasma cleans to remove byproduct buildup.

Product Advantages and Features

EMI Immunity: Encased in a precision-machined aluminum housing to prevent interference from the high-wattage RF environment it manages.

Fiber Optic Isolation: Utilizes optical links for data transmission, eliminating ground loops and protecting sensitive logic from high-voltage surges.

Ultra-Low Latency: Optimized for "Arc Detection"—the module can signal a power reduction in microseconds to prevent damage to the electrostatic chuck (ESC) or the wafer.

Plug-and-Play Calibration: Factory-calibrated gain settings ensure that replacing a module does not require a complete re-tuning of the RF match network.

Installation and Maintenance

Installation

Mounting: Secure the module to the RF rack or chamber bulkhead using the specified mounting screws to ensure proper thermal contact.

Cabling: Connect fiber optic cables first to prevent static discharge into the optical transceivers. Ensure D-Sub connectors are tightened to maintain a consistent ground plane.

Address Setting: If applicable, verify the rotary hex switches or DIP switches match the original unit's ID for system recognition.

Maintenance

Optical Port Inspection: Periodically check fiber ports for "fab dust." Clean only with specialized optical swabs and 99% IPA.

Thermal Check: Use an infrared thermometer to ensure the module is not exceeding its 65°C operational limit, which could indicate a failing RF generator or poor airflow.

Firmware: Ensure the module’s Rev (Revision) code is compatible with the system's current software release (e.g., E3.5 or G6 software).

Unique Product Description

The AMAT 0190-37519 is the "Nerve Center" of the plasma chamber. In an environment where a single millisecond of unstable RF power can scrap a multi-thousand dollar wafer,

this interface module provides the unwavering stability required for high-volume manufacturing.

Its dual-path architecture—combining high-speed digital logic with isolated analog monitoring—makes it a cornerstone of Applied Materials' reputation for process repeatability.
