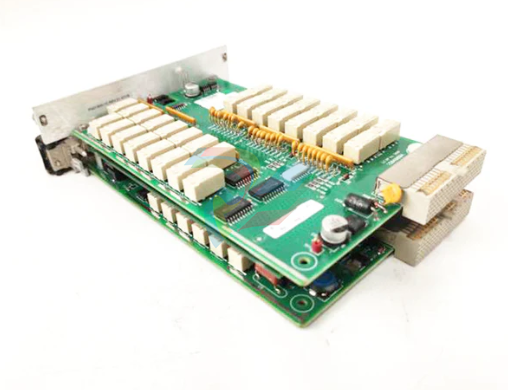

AMAT 0190-37833 MKS CDN500R-5 EPI 300mm Interface Module

AMAT 0190-37833: MKS CDN500R-5 EPI 300mm Interface Module

The AMAT 0190-37833 is a specialized communication and interface module manufactured by MKS Instruments (Model AS00497-01 / CDN500R-5) for Applied Materials.

 This unit is a critical component of the EPI (Epitaxial) 300mm wafer processing platforms.

 It functions as a high-integrity DeviceNet interface node, managing the signal flow between the tool's central controller and the localized hardware in the epitaxial growth environment.

Technical Parameter Table

Product Advantages and Features

EPI Platform Optimization: Specifically tuned for the thermal and chemical requirements of epitaxial silicon growth.

Stable DeviceNet Connectivity: Provides a robust node for the CDN500R network architecture, ensuring data packets are delivered without loss in EMI-heavy environments.

Integrated Signal Isolation: Features internal galvanic isolation to protect the main tool controller from electrical surges originating in the chamber hardware.

Direct Handshake Logic: Facilitates the critical timing required for "Real-Time" process adjustments during high-temperature wafer deposition.

Application Cases

300mm Epitaxial Growth: Managing the I/O signals for high-precision gas injectors and heating lamp arrays in EPI chambers.

Thermal Uniformity Control: Interfacing with pyrometers and thermocouples to provide millisecond-level temperature feedback to the system VME/SBC.

Process Sequencing: Coordinating the opening and closing of ultra-high vacuum (UHV) gate valves during the deposition cycle.

Related Models & Same Series

The 0190-37833 is often used in conjunction with these related MKS and AMAT modules:

0190-37670: Often listed as a co-requisite or sub-assembly interface (AS01500-5-1).

0190-37771: CDN500R-based Interlock safety module.

0190-36511: DIP294 DeviceNet I/O Block.

0190-20122: Central Processor / VME Controller for the 300mm mainframe.

Unique Product Description

The AMAT 0190-37833 (MKS AS00497-01) is essentially the "Synaptic Bridge" for the 300mm EPI tool. In epitaxial processing, where crystal growth occurs at an atomic level, the timing of gas pulses and temperature shifts is absolute.

This module is engineered to handle the specific "Handshake" protocols of the CDN500R-5 architecture, providing a level of deterministic communication that standard off-the-shelf DeviceNet blocks cannot match.

Installation and Maintenance

Installation Guidelines

Node ID Setting: Before powering the bus, set the MAC ID via the rotary or DIP switches to match the tool’s specific I/O map.

Cable Strain Relief: Ensure the 5-pin micro-connector is secured and the cable has adequate strain relief; vibration during high-speed wafer handling can lead to intermittent "Bus-Off" errors if connections are loose.

Shield Continuity: Verify that the DeviceNet cable shield is grounded at only one point (usually the power supply) to prevent ground loops that could interfere with the 37833’s sensitive logic.

Maintenance Procedures

Network Health Scan: Use a DeviceNet analyzer (like NetCheck) to monitor the "Error Counter" on this node. An increasing error count often indicates a failing transceiver within the 0190-37833.

Thermal Inspection: Because EPI tools run at high temperatures, inspect the module’s plastic housing for signs of warping or discoloration during every major PM cycle.

Firmware Consistency: If replacing a module, ensure the firmware version is compatible with the tool’s software release to prevent "Protocol Mismatch" alarms.
