AMAT 0190-60287 Precision VME/cPCI Interface Control Module

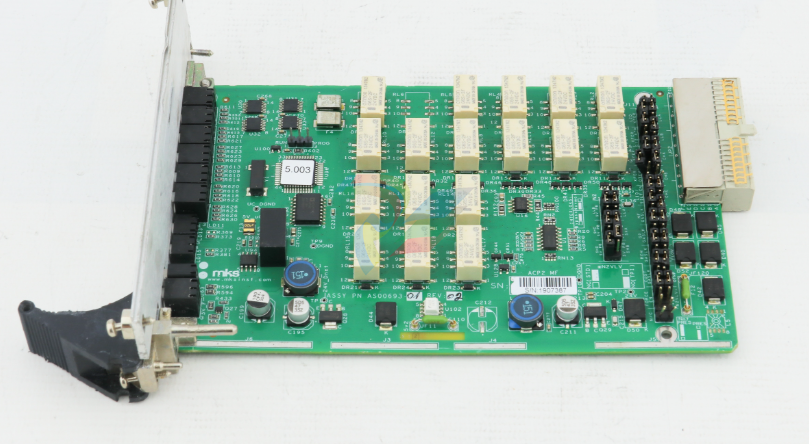

AMAT 0190-60287: Precision VME/cPCI Interface Control Module

The AMAT 0190-60287 is a high-performance communication and logic interface module engineered by Applied Materials.

This module is a core component within the electronics rack of 300mm semiconductor fabrication tools, including the Centura, Endura, and Producer platforms.

It serves as a vital data gateway, managing the high-speed exchange of process commands between the system’s central processing unit and the localized chamber hardware.

Technical Parameter Table

Product Advantages and Features

Advanced Signal Integrity: Engineered with multi-layer PCB shielding to eliminate data corruption in high-EMI environments caused by RF generators.

Deterministic Logic: Features onboard FPGA/Logic arrays that ensure process commands are executed with nanosecond-level repeatability.

Diagnostic Transparency: Equipped with front-panel LED indicators that display real-time status of bus activity, power health, and fault conditions.

Modular Reliability: Built for 24/7 continuous operation in high-volume manufacturing (HVM) environments with an industry-leading Mean Time Between Failures (MTBF).

Application Cases

Chamber Process Control: Synchronizing gas flow timings and RF power ramp rates in Etch and CVD chambers to maintain critical dimension (CD) uniformity.

Wafer Handling Coordination: Managing the interface signals for high-speed vacuum robotics, ensuring collision-free wafer transfers within the mainframe.

Real-Time Data Logging: Converting raw analog signals from chamber sensors into digital data streams for the tool's process monitoring software.

Related Models & Same Series

The 0190-60287 is typically found in the same electronics bay as these related AMAT modules:

0190-20122: Central VME System Controller.

0190-37993: DeviceNet Scanner Pro Interface.

0190-36787: ISAC CP I/O Block (Top).

0190-35764: Power Interface Module.

Unique Product Description

The AMAT 0190-60287 is often described as the "Nervous System Connector" for the tool's control rack.

While other cards provide the "brainpower," the 60287 provides the specialized high-speed pathways required for the tool to speak to its vacuum chambers.

Its unique architecture allows it to handle "burst" data traffic without slowing down process-critical feedback loops, making it indispensable for the high-speed processing required in modern 3nm and 5nm wafer fabrication.

Installation and Maintenance

Installation Steps

System Power-Down: Ensure the tool's electronics rack is fully powered off and Locked-Out (LOTO).

ESD Protection: Wear a grounded wrist strap; this module contains sensitive high-speed logic circuits.

Alignment: Align the card with the upper and lower guide rails in the rack. Slide it in firmly until the backplane connectors are fully seated.

Locking: Secure the captive ejector handles or screws to ensure the card does not vibrate loose during tool operation.

Maintenance Tips

Annual Inspection: During the tool's annual PM, remove the card and check the gold-plated pins for signs of "fretting" or oxidation.

Cleanliness: Use ionized compressed air to clear any dust from the card's surface to prevent localized hot spots.

Software Sync: If replacing a module, verify through the tool's service menu that the hardware ID matches the software's expected configuration to avoid "Invalid Module" errors.
