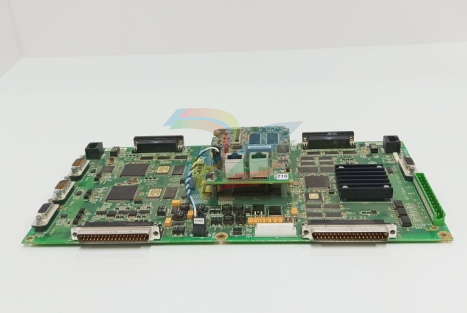

GE 151X1212GC01PC02 LCI Static Startup Controller
GE 151X1212GC01PC02 LCI Static Startup Controller
Control Hardware/Software
Control Hardware
A VME rack in the control cabinet holds the circuit boards that make up the heart of
the DSP-based digital control. The circuit boards contain all the control and
protection features for the Static Starter. The VME rack control cards interface to
circuit cards in the bridge cabinet to provide gating signals for the thyristors and to
collect voltage, current, and status feedbacks. A one-line diagram for the control for
an 8.5 MVA Static Starter is as follows.
The local user interface provides the following functions:
• Display of Static Starter operating status
• Cooling pump and blower selection
• Access the diagnostic lists and help screens
• Diagnostic reset
• Tune-up parameter display and modification
Protection
The Static Starter has internal protection that conforms to the Integrated Control
System (ICS) protection philosophy of relying on the emergency external system
protection only when there is a failure of the primary internal protection. This allows
the Static Starter control to attempt corrective action on partial faults resulting in
more graceful handling of error conditions, such as initiating a controlled shutdown
on loss of feedback rather than letting external over-current emergency protection
activate. Some of the protections provided by the Static Starter control include:
• Instantaneous overcurrent
• Bridge differential current
• Generator overvoltage
• Source bridge undervoltage, overvoltage
• Ground fault
• Bridge coolant over temperature, low resistivity, low pressure, low/high level
• Shorted thryistor
• No generator field at start
Faults and Alarms
The Static Starter control continually tests for abnormal conditions and generates a
diagnostic whenever a problem is found. A diagnostic is either a Trip or Alarm. A
Trip indicates an abnormal condition that shuts the Static Starter off or prevents it
from starting. An Alarm indicates an abnormal condition that requires attention but
does not shut down the Static Starter.
All diagnostics are time tagged with system time obtained from the Ethernet Unit
Data Highway (UDH). The diagnostics are viewable through the local user
interface. Additionally, any PC connected to the Ethernet UDH can view the Static
Starter's diagnostics using the toolbox. For operator viewing, summary diagnostics
are provided to the HMI alarm screens via the Ethernet unit data highway
