CTI 2500C-8-IDO-120V 8 Isolated 120VAC Outputs

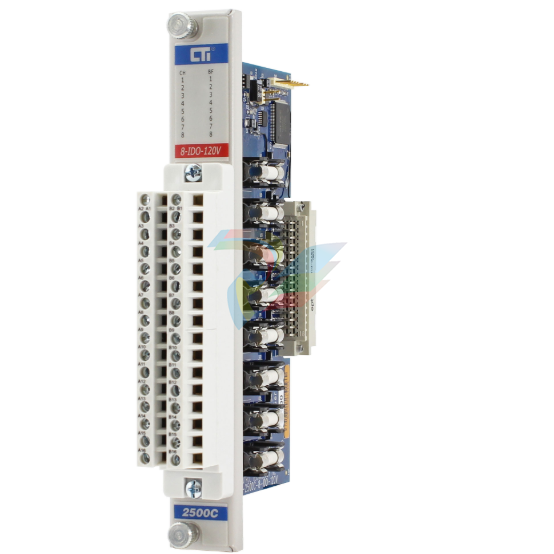

2500C-8-IDO-120V 8 Isolated 120VAC Outputs

The 2500C-8-IDO-120V module outputs a wide range of AC voltage signals. It is designed to provide 8 solid state output circuits to switch  on or off external devices such as pilot lamps, motor starters or solenoids using an externally supplied 120VAC. Front panel LEDs provide visual indication  for output and fuse status.

Features

Single wide module

8 channels isolated channel-to-channel

Output voltages 79-132VAC

Output current 1A max

Each channel is individually fused

Channel On/Off Status Indication

Blown fuse indication and reporting for each channel

Uses 2500C-32F Connector

Blown Fuse Operation Overview..

Blown Fuse detection works when the Output Channel

is wired and the output is turned on. If the fuse is blown

the LED will turn ON and the associated X address will

equal 1. If the Output Channel is turned off the LED

indicator will turn OFF and the associated Blown Fuse

Bit will equal 0 . The module does not Latch the Blown

Fuse Input so the user application should trap for the

reported Blown Fuse Bit while the Output is turned ON.

This will allow logging and notification of the blown

fuse event to your HMI stations and other  reporting

devices.  Blown Fuse reporting on this module is for

each channel.

Outputs per module 8

Module Logon 8X /8Y

Output Voltage Range  79-132 VAC

Maximum Output current per

channel

1 A @ 45ºC

.625A @ 60ºC

Maximum Surge Current 3A for 15 sec

Total  Module Current 8 A @ 45ºC

5A @ 60ºC

“ON” State Voltage Drop NA

“OFF” State Leakage Current 750µA @ 120VAC

Turn ON Time 1/2 AC cycle

Turn OFF Time 1/2 AC cycle

Fusing 8 fuses

Fuses:

8 Field Replaceable Fuses

2.0 amp, 250V

Type Schurter 0034.0904

Module Size Single wide module

Connector 2500C-32F

Backplane Power  (MAX) 1.09 watts

Input ESD Protection IEC 1000-4-2 Level 4

Isolation  1500 VDC Channel to Backplane

300 VAC Channel to Channel

Shipping  Dimensions and

Weight

223.84mm x 109.86mm x 34.93mm,

0.234kg

Operating Temperature Range 0ºC to 60ºC (32ºF to 140ºF)

Storage Temperature Range -40ºC to 85ºC (-40ºF to 185ºF)

Relative Humidity 5% to 95% (non-condensing)
