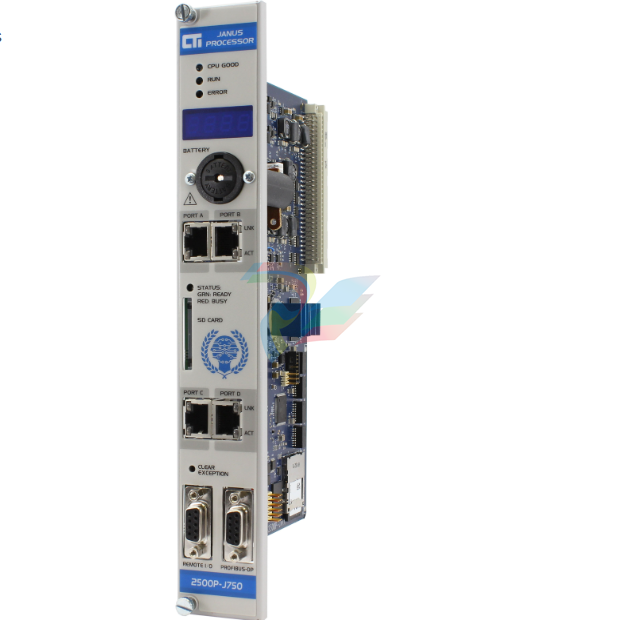

CTI 2500P-J750 Janus PAC with 3MB Project Memory



2500P-J750 Janus PAC with 3MB Project Memory

2500 Series - Classic

Provides PAC performance with PLC usability

Extends the life of your 505 Series® system with NO rewiring or reprogramming

Modernizes your system with smart enhancements and new capabilities

Delivers unmatched reliability and ease of use

Offers lowest Total Cost of Ownership

Features

Up to 10x execution speed compared to current 2500 Series CPUs

Programming is done using CTI’s Janus Workbench Software development package which includes all IEC-61131 languages (SFC, FBD, LD, ST and IL)

Built-in Remote I/O and Profibus interfaces with support for all existing 2500 Series discrete and analog modules

External SD card for user backup and file transfer while in RUN mode

Four Ethernet ports with internal switch that supports simultaneous connection to four different Ethernet networks

Embedded HMI function to easily create and view graphics screens for local operator interface directly from the PLC

Extensive built-in communications capabilities:

Optimized peer-to-peer communications with all CTI CPUs and the ACP1

CAMP server for HMI/SCADA access

CAMP client for communicating with CTI 2572/2572-x and Cxxx processors

Open Modbus client and server

EtherNet/IP Scanner/Adapter/Tag Client/Server

MQTT client for direct access to the IIoT

OPC-UA server (firmware 1.24 and above)

Profinet controller and device (future)

OVERVIEW

The 2500 Series® Classic Programmable Automation

Control System is designed for use in a broad range of

applications, including those that require both discrete and

analog control.  2500 Series® products can be found

worldwide in numerous industries, including food and

beverage, oil and gas, air separation, pulp and paper, mining

and foundry, building products, printing equipment,

chemicals, pharmaceuticals, semiconductor, and

wastewater/water treatment. CTI designed the 2500 Series®

with a focus on operational simplicity, ease of use, and

compatibility across successive product generations to

deliver unsurpassed reliability and the performance you

need at the lowest total cost.

Continuous Evolutionary Improvement

The 2500 Series® has its roots in the “ahead-of-its-time”

Texas Instruments/Simatic 505® Series system known for its

robust performance, intuitive design, and elegantly simple

PID and special function programming.  The 2500 Series®

reinvigorates and modernizes this legendary product line

with more memory, more speed and many new features

while maintaining backwards compatibility.

The most important feature of every product CTI sells is

compatibility — both backward and forward.  We don’t

obsolete our products and expect customers to buy our

latest control system.  Instead, our products are conceived

to allow customers to improve systems incrementally —

building on previous investments in equipment,

programming and training.  A brand new controller with

modern features will work seamlessly with I/O modules from
