CTI 2500P-R16 Sixteen-Slot Base with High-Speed Channel

2500P-R16 Sixteen-Slot Base with High-Speed Channel

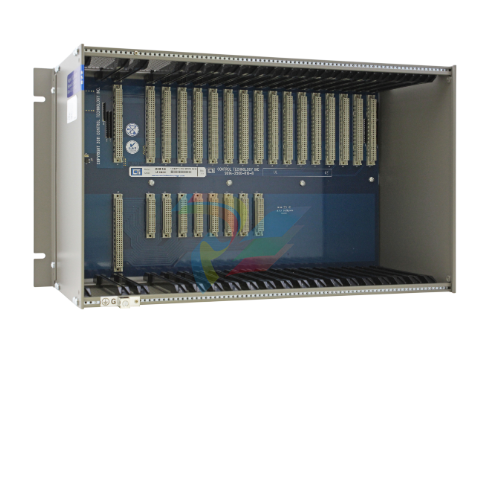

The 2500P-R16 provides sixteen slots for industrial I/O in the 2500 Series® platform.

The rack provide space for a 3-slot wide power supply, a dual-wide CPU or Remote Base Controller (RBC), and slots for up to 16 I/O modules.

In addition it provides a bottom connector row for high-speed communications with CTI Advanced Function Modules

Compatibility Notes for 2500-R11-A

1. CTI 2500-RIO-A Remote Base Controllers are compatible with 2500-R11-A

2. CTI 2512 power supplies are not compatible with 2500-R11-A.  2512-A power supplies should be

used instead.

3. CTI 2500 Series® Processors support operation with dual power supplies beginning with V3.21 firm

ware released Sep2008.

4. When using CTI 2500-RIO-A remote base controllers in 2500-R11-A, it is recommended that firm

ware V7.03 or greater is used in the 2500-RIO-A.

5. All CTI CPUs 2500-Cxxx Series will only access the local IO when plugged in the left most CPU slot

of the R-11-A. Contact CTI Support for a more detail explanation of the support provided for more

than one CPU in a 2500-R11-A.

Features

• Replaces Siemens® 505-6504. 505-6508. 505

6511. or 505-6516

• Four, eight, eleven or sixteen I/O slots

• Mounts from the front or rear

• 2500-R11-A allows use of two power supplies

and two RBCs in a redundant configuration

• High-speed lower backplane for communication

with Advanced Function Modules (2500P bases

only)

• Embedded client/server protocols perform data

transfer based on configuration tables without

the need for any additional logic in the PLC or

2500P-ACP1 application program.
