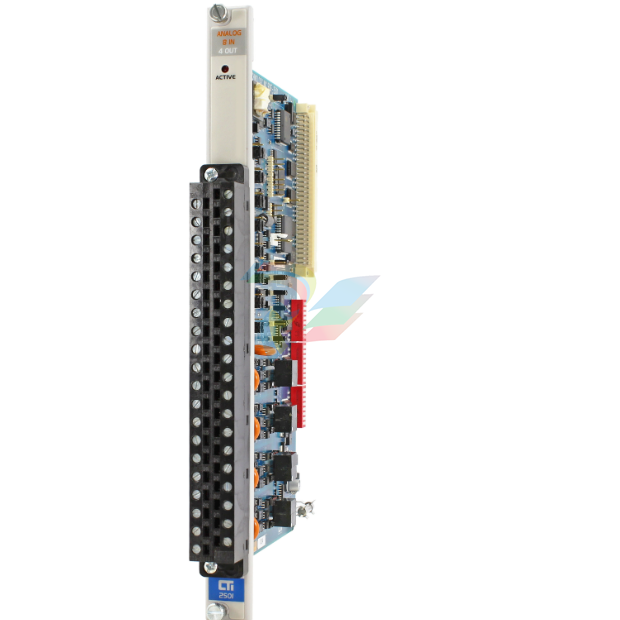

CTI  2501 8in/4out Analog Module

2501 8in/4out Analog Module

The 2501 module provides an eight channel analog input and four channel analog output design in a compact, single-wide module to fit in the 2500 Series® I/O base.

Features

Replaces Siemens® 505-7012 and 505-7016 with no rewiring

Fast 6mSec update time for all channels

Selectable input/output or input only operating modes

0-5V, 0-10V, 0-20mA, 4-20mA, unipolar or bipolar inputs and outputs, selectable per channel

Inputs and outputs isolated 1500V channel-to-PLC backplane

Outputs isolated 1500V channel-to-channel

Voltage and current outputs available simultaneously

Specifications

Classic

Update Time: 6 mSec - LO density 7 mSec - HI

density (all channels including settling time)

Connector: For new installations this module will

require a 2500-40F removable wiring connector sold

separately. Part Number 2500-40F.

Backplane Power: 3 Watts (maximum)

Wire Gauge: 14-22 AWG

Module Size: Single-wide

Shipping Weight: 1.5 lb. (0.68 Kg)

Additional Product Information:

Description

The 2501 module

2500 Series®  PLC System

Product Bulletin

provides an

eight channel analog input and four channel

analog output design in a compact, single-wide

module to fit in the CTI 2500 SeriesTM or Simatic®

505 Series I/O base. It is useful in applications

such as machine control, loop temperature control

and weighing systems. The 2501 replaces

Siemens® 505- 7012 and 505-7016 modules,

except in applications which use the built-in

scaling feature.

Features

• CTI 2500 SeriesTM or Simatic® 505 base

format

• Fast 6 mSec update time for all channels

• Selectable input/output or input only operating

mode

• Bipolar or unipolar inputs per channel

• Inputs: 1500VDC channel-to-PLC isolation

• Outputs:

• 1500V channel-to-channel  isolation

• Voltage and current outputs

available simultaneously

• Bipolar or unipolar outputs per channel

On CTI’s Website you will find links to the 2500 Series

Std Environmental Specifications and the UL

Agency Certificates of Compliance .
