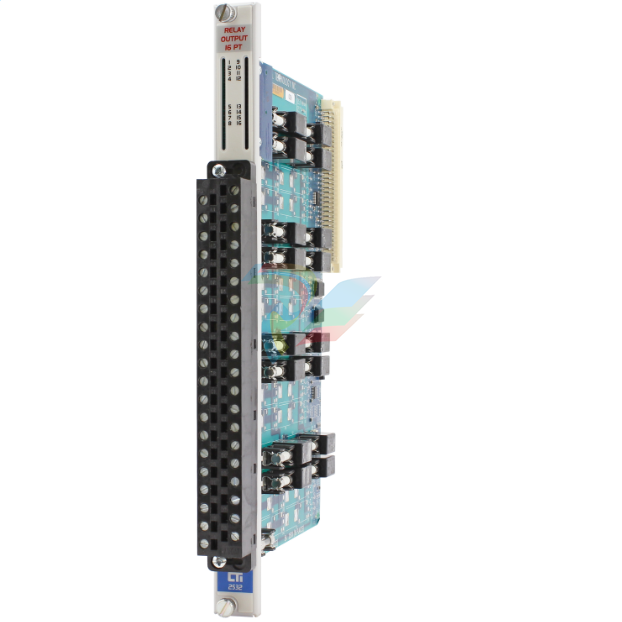

CTI 2532 16-Point Form-A Relay Output Module

2532 16-Point Form-A Relay Output Module

The 2532 module provides 16 Form-A relay outputs isolated in groups of four for the 2500 Series® I/O base.

The module uses relay output circuits to switch on or off external devices such as pilot lamps, motor starters, or solenoids.

The 2532 is designed to switch externally supplied 15 to 240 VAC and 15 to 30 VDC.

Features

Replaces Siemens® 505-4916-A with no rewiring

16 Form-A relay outputs

Isolated 1500V group-to-group

Isolated 1500V channel-PLC backplane

Individually fused outputs

4.0 Amps per output

Description

Product Bulletin

The 2532 16-Point Form A Relay Output Module

provides sixteen Form A outputs isolated in

groups of four for the SIMATIC® 505 I/O base.

The module utilizes relay output circuits to

switch on or off external devices such as pilot

lamps, motor starters, or solenoids. The 2532 is

designed to switch externally supplied 15 to

240 VAC and 15 to 30 VDC. The internal logic

signals are isolated from the external outputs to

2100 VDC.

Specifications

Outputs per module:  16

Isolation: 2100 VDC channel-to-backplane

3000 VDC group-to-group

Output voltage: 15 - 240 VAC

15 - 30 VDC

Indicators: 16 individual LEDs

Maximum output current:

4A per point (resistive)

8A per group (resistive)

Switching rate: 5 ops/sec (no load),

0.5 ops/sec (rated load)

Type of contact: Form A

Type of outputs: Individually fused

Minimum contact load: 10mA @ 5 VDC

Contact life:

@ full rated current, 4A = 400.000 cycles

@ 2A = 1.000.000 cycles

Backplane Power: 1.7 Watts

User Power Supply: 24VDC +10%

300 mA (all outputs ON)

Fuses: field replaceable, channel and unit

16. 5 amp, 250V,

Littelfuse #215.005

1. 1 amp, 250V,

Littelfuse #217.001

Schurter #0001.2511 Schurter #034.1516

Connector: Removable

Wire Gauge:  14 - 22 AWG

Module Size:  Single-wide

Features

SIMATIC® 505 base format

16 Form A relay outputs

Replaces Siemens® 505-4916 with no

rewiring

Isolated 3000 VDC group-to-group

Isolation in groups of 4

Wide 15-240 VAC and 15-30 VDC

output range

4.0 Amps per output

Individually fused outputs

Single-wide module

Operating Temperature:  0o to 60oC

(32o to 140oF)

Storage Temperature:  -40o to 85oC

(-40o to 185oF)

Relative Humidity:  5% to 95%

(non-condensing)

Agency Approvals:

UL, UL-Canada

Agency Approvals Pending:

Class 1 - Div.2. CE

Shipping Weight:  1.5 lb. (0.68 Kg
