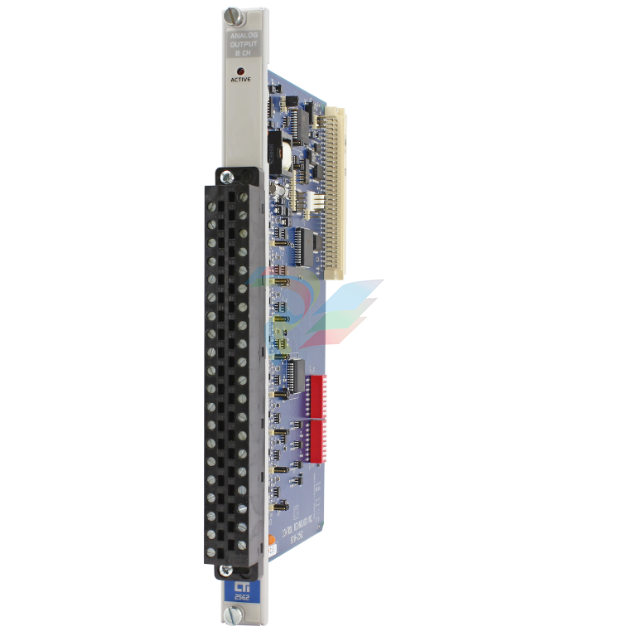

CTI  2562 8-Channel Analog Output Module

2562 8-Channel Analog Output Module

The 2562 is a low-cost, high-speed, 8-channel analog output module designed to be compatible with the 2500 Series® programmable controller I/O base. The 2562 translates digital words from the controller into equivalent analog outputs.

Features

Replaces Siemens® 505-6208-A and 505-6208-B with no rewiring

8 analog output channels

Isolated 1500V channel-to-PLC backplane

Fast 4mSec update time for all channels

Voltage and current outputs available simultaneously

Bipolar or unipolar outputs per channel

Description

The 2562 is a low-cost, high-speed, 8-channel

analog output module designed to be compatible

with the CTI Series 2500® and the SIMATIC®

505 programmable controller I/O base. The 2562

translates digital words from the controller into

equivalent analog outputs. The 2562 is fully

compatible with all versions of CTI Series 2500®

CPUs and the SIMATIC® 545 and 555 PLCs.

Features

• CTI Series 2500® base format

• Replaces Siemens® 505-6208 with no rewiring

• 8 analog output channels

• 1500V channel-to-PLC backplane isolation

• Fast 4 mSec update time for all channels

• 12 bits of resolution

• Voltage and current outputs available

simultaneously

• Bipolar or Unipolar outputs per channel

• Single-wide module

Specifications

Output channels: 8 analog output channels

Response Time:

4 mSec total module (includes settling time)

Output Range:

Unipolar: 0 to +5.12 VDC

0 to +10.24 VDC,

0 to +20 mA

Bipolar:   - 5.12 to +5.12 VDC

-10.24 to +10.24 VDC

-20 to +20 mA

Resolution 12 Bits:

Unipolar 12 bits:

0 - 20 mA range =  5µA/step

0 - 5 VDC range = 1.25mV/step

0 - 10 VDC range = 2.5mV/step

Bipolar 11 bits plus sign:

-5 to +5 VDC range =  2.5mV/step

-10 to +10 VDC range = 5.0mV/step

-20 to +20 mA range = 10µA/step

Isolation: 1500 VDC channel-to-PLC

Capacitance Drive:  0.01 microfarad

Load Resistance:

Voltage:   1KΩ minimum, no maximum

Current::   0Ω to 1KΩ max. @ 24 VDC or greater

Accuracy:

Voltage mode: 0.125% of full scale from

0° to 60°C over total load range

Current mode:  0.225% of full scale from

0° to 60°C over total load range

User Supply:

20 to 30 VDC @ 0.50 Amps max.

(maximum ripple of 0.4 V)

Fuse: 1A 250V FAST BLOW 5X20MM  field

replaceable Type Littelfuse #0217001.HXP

NOTE: Maximum load resistance for current output

drops to 600Ω  @ 20 VDC user supply

Connector: Removable

Wire Gauge: 14-22 AWG

Backplane Power: 1.7 Watts

Module Size: Single-wide

Shipping Weight: 1.5 lb (0.68 Kg)
