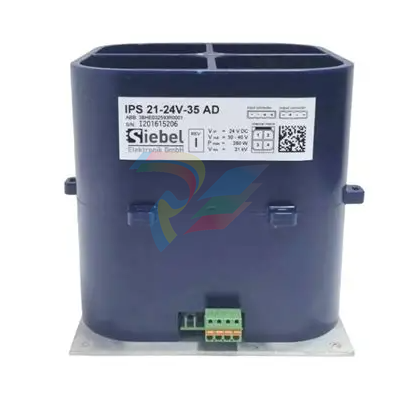

ABB 3BHE032593R0001 Isolated Power Supply

The ABB 3BHE032593R0001 is a high-performance, industrial-grade Isolated Power Supply module engineered for demanding automation and drive control environments.

Specifically utilized within advanced excitation systems (such as the UNITROL series) and heavy-duty industrial drives,

this module provides exceptionally stable, galvanic isolation to safeguard sensitive control electronics from high-voltage transients and electrical noise.

By decoupling the input source from the output load, the 3BHE032593R0001 eliminates ground loops, mitigates harmonic distortion,

and maintains system integrity in high-power applications.

Its rugged architecture makes it the component of choice for facilities requiring continuous, fault-tolerant operations under volatile thermal and electrical conditions.

Technical Parameter Table

Product Advantages and Features

Superior Galvanic Isolation: Effectively blocks ground loops and shields sensitive processor boards from devastating field-side surges.

Low Electromagnetic Interference (EMI): Features specialized filtering to minimize both radiated and conducted emissions, ensuring pristine signal quality across adjacent I/O modules.

Excellent Thermal Regulation: Built with heavy-duty components capable of sustained operation in high-ambient-temperature electrical enclosures.

Rapid Fault Recovery: Integrated short-circuit and overcurrent protections automatically reset once downstream faults are cleared, avoiding permanent module failure.

High-Vibration Tolerance: Meets rigid industrial standards for deployment in environments with heavy mechanical resonance, such as power generation halls and maritime vessel engines.

Application Cases

UNITROL Excitation Systems: Supplies clean, isolated control power to automatic voltage regulators (AVR) managing synchronous generators in power plants.

Large Variable Speed Drives (VSD): Deployed within the control section of medium-voltage drives to handle critical gate-driver power distribution.

Marine Propulsion and Control: Used in onboard vessel automation systems where grid isolation from the ship's main diesel-electric generators is vital.

Heavy Metallurgy Control Panels: Powers localized control networks in rolling mills and blast furnace controls where massive inductive loads cause severe voltage sags.

Related Models & Other Models in the Same Series

The 3BHE series forms the core control and power infrastructure for ABB’s specialized high-power electronics platforms:

3BHE021951R0001: Control Power Supply Interface Module

3BHE032593R0001: Isolated Power Supply Module (Current Model)

3BHE039203R0001: Main Gate Driver Board / Power Module

3BHE014105R0001: Power Supply Unit (Alternative Excitation Tier)

3BHE024577R0001: Fan Control / Auxiliary Power Supply

Installation and Maintenance

Installation Procedures

De-energize the System: Ensure all primary and auxiliary power lines are completely disconnected and locked out before installing or removing the module.

Physical Orientation: Secure the module within its designated rack slot or backplane panel. Maintain clear airflow pathways around the module's ventilation points.

Grounding: Verify that the chassis ground connection is established via the mounting plate or dedicated grounding pin to ensure optimal EMI shielding performance.

Terminal Connections: Connect the input and output lines using appropriate wire gauges, making sure all terminal connections are torqued down securely to prevent high-resistance joints.

Routine Maintenance

Thermal Inspection: Use infrared thermography during routine site inspections to check for abnormal hot spots on the terminal blocks or housing.

De-dusting: Periodically blow out accumulated particulate matter using clean, dry compressed air to ensure heat dissipation remains uninhibited.

Firmness Audits: In high-vibration applications (e.g., paper mills, mining installations), verify the structural tightness of the mounting screws annually.
