MOTOROLA 84-W8973B01A High-Density Industrial Memory Module

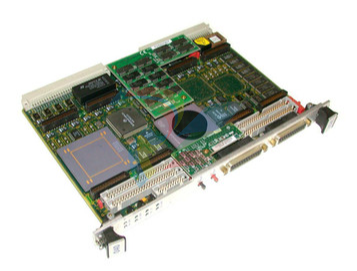

MOTOROLA 84-W8973B01A  High-Density Industrial Memory Module

Introduction

The MOTOROLA 84-W8973B01A (also identified by its fabrication revision, such as FAB REV B) is a specialized industrial memory expansion board.

It is designed to work in conjunction with Motorola MVME (VMEbus) single-board computers,

providing the additional volatile or non-volatile storage required for complex real-time processing, large-scale data logging, and industrial automation control.

This module is a critical legacy component for maintaining the operational integrity of VME-based systems,

 which are widely used in infrastructure that requires decades of reliable service.

Technical Parameter Table

Related Models

The 84-W8973B01A is often associated with specific Motorola VME assemblies and their sub-components:

MVME162-043: A common VME controller card that utilizes this memory module.

01-W3884B-23E: The full assembly part number for specific controller configurations.

MVME172 Series: Advanced VME boards that support similar memory mezzanine expansions.

RAM500: A later-generation memory expansion series for MVME5100 modules.

Application Cases

DCS & PLC Systems: Acts as the extended memory bank for Distributed Control Systems in oil and gas refineries or chemical processing plants.

Power Plant Control: Used in legacy turbine control and grid monitoring systems where high MTBF (Mean Time Between Failures) is mandatory.

Robotic Controllers: Provides the buffer memory needed for complex motion planning in heavy industrial robotic arms.

Aerospace Simulators: Integrated into the processing units of flight simulators and ground-based radar systems for long-term data retention.

Product Advantages and Features

Seamless Integration: Designed as a "drop-in" mezzanine, it allows for memory upgrades without occupying an additional VME slot on the backplane.

Ruggedized Design: Built to withstand the high vibration and electromagnetic interference (EMI) typical of industrial environments.

High Reliability: Manufactured using industrial-grade components to ensure consistent performance over a multi-decade lifecycle.

Deterministic Access: Optimized for real-time operating systems (RTOS) like VxWorks, ensuring low-latency memory access for time-sensitive tasks.

Other Models in the Same Series

84-W8973A01A: The earlier revision of the memory board.

MVIP Series: IndustryPack modules for I/O expansion (often used alongside these memory modules).

MVME162-010 / 020 / 512: Various versions of the base VME processor modules.

Installation and Maintenance

Installation: Align the mezzanine connectors on the 84-W8973B01A with the corresponding headers on the MVME baseboard.

Press down evenly until the board is fully seated. Secure using the provided mounting standoffs and screws.

Handling: This board is highly sensitive to Electrostatic Discharge (ESD). Ensure you are wearing a grounded wrist strap and handling the board only by its edges.

Maintenance: Periodic inspection of the connector pins for oxidation or dust is recommended. Since this is a solid-state memory board,

 it requires no active cooling but should be used in a chassis with adequate airflow.

Unique Product Description

The Motorola 84-W8973B01A is the "silent engine" behind many of the world's most durable industrial controllers.

While the main processor handles logic, this high-performance memory board ensures that data is available exactly when the system needs it.

Its robust architecture and specialized mezzanine design make it an essential asset for engineers tasked with the maintenance and life-extension of Motorola VME systems.

When reliability cannot be compromised, the 84-W8973B01A provides the stable foundation your automation hardware demands.
