Woodward: LS-522-5/P1 8440-2151

Product number: 8440-2151

Manufacturer product number: 8440-2151

Description: woodward: LS-522-5/P1 V2. 5A, Multibreaker Control for complex power management applications

Woodward’s LS-5 Series are synchronizer controllers with integrated mains decoupling and protec

tion features. The applications range from independent synch check relay to complex power man

agement relay with multiple utility feeds, bus tie breakers and group breakers in combination with

Woodward’s easYgen-3400XT/3500XT equipped genset controllers. Wiring efforts are reduced to

a minimum, since only one CAN bus connection is required between all LS-5 and easYgen control

lers to transmit AC measurement signals, I/O states, flags etc.

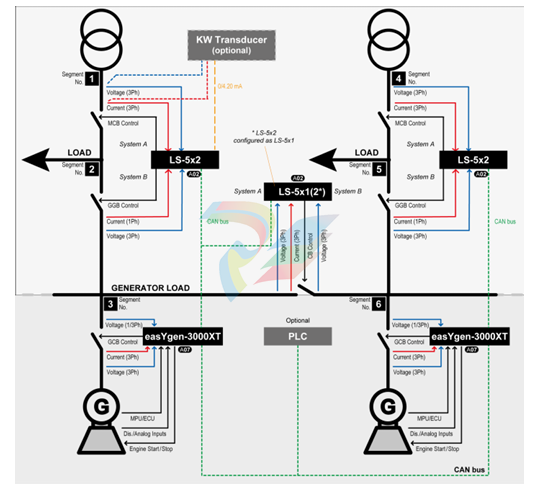

The LS-5x2 relays simplify the applications where load bus is served by a mains circuit breaker

(MCB) and a generator group breaker (GGB). It senses voltage and current, quantifies the syn

chronization parameters and transmits the signals via CAN bus to the easYgen-3400XT/3500XT

genset controllers. The two breakers control capability along with mains decoupling and protection

features make it a perfect choice for transfer switch control under guidance of an external supervi

sory control. The LS-5x2 is software selectable to be applied as an LS-5x1 thereby facilitating hard

ware standardization to OEM switchgear builders, generator packagers, and system integrators.

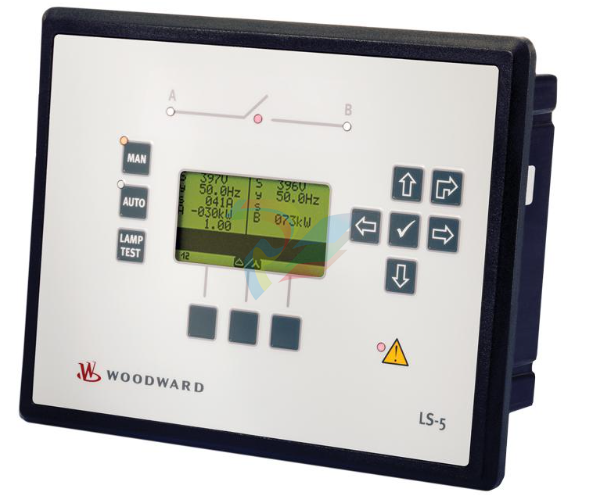

The LS-5x2 Series is available in two different mounting styles. An LS-522 with a plastic housing

and graphic LCD display is designed to be mounted on the cabinet’s front door. An LS-512 with an

aluminum powder coated housing without display is designed to be back panel mounted.

FEATURES

Up to 16 LS-5x2 relays can be operated in one network with up to 32 easYgen-3400XT/3500XT

Remotely selectable breaker transition modes: Open, Closed (short parallel <100ms), Inter

change, Indefinite parallel

Software selectable to function as one breaker control

Internal power calculation with option to feed active power from external transducer

Phase match or slip frequency synchronization with voltage matching

Full protection package (including df/dt (ROCOF), phase shift, and mains voltage increasing

protection according to new German grid code)

Segment control for the load sharing

Event Log with up to 300 entries

Automatic date and time synchronization between the LS-5 units and the connected easYgen

3400XT/3500XT controls

LS-5 “Stand alone” mode without the easYgen-3400XT/3500XT is possible

Preconfigured application modes that simplify the configuration process for complex multi

breaker applications

AUTOmatic and MANual mode

Full remote control via CAN or RS-485 interface

Breaker open/close failure detection

Mains decoupling “Test” mode

Lock keypad feature

4 freely configurable alarms

8 Freely configurable LED`s on the LS-512 back panel mountable device

Multilingual capability: English, German, Spanish, French, Italian, Portuguese, Japanese,

Chinese, Russian, Turkish, Polish
