Woodward: CONTROL-LS-612XT-P1,8440-2222 Cabinet back mounting

Product number: 8440-2222

Manufacturer product number: 8440-2222

Description: Woodward: CONTROL-LS-612XT-P1. Cabinet back mounting without display

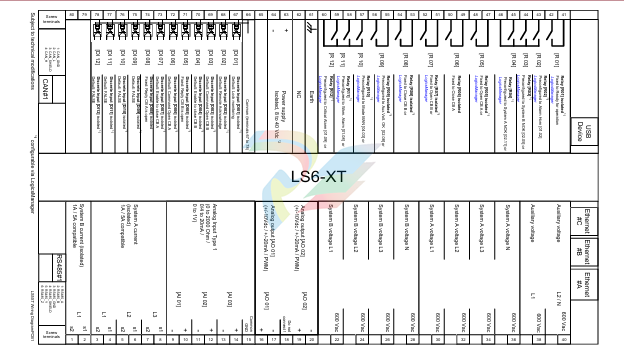

Woodward’s easYgen | LS-6XT control is synchronizer controller with integrated mains

decoupling and protection features. It enables several redundant communication

schemes with peer controls. The applications range from independent synch check

relay to complex power management system with multiple utility feeds, bus tie break

ers and group breakers in combination with Woodward’s easYgen-3400XT/3500XT

equipped genset controllers and/or easYgen | GC-3400XT equipped genset groups. Re

dundant busses running among the peer controls ensure that availability of your power

generation asset is not compromised to a single point of failure.

The LS-6XT control together with easYgen-3000XT controls are designed to support

OEM switch-gear builders, generator packagers, and system integrators standardize on

a single hardware for a multitude of utility parallel or island operations. Off-the-shelf

LS-6XT control is software configurable for one/two breaker control, gensets / genset

groups handling, and stand-alone/multi-unit application.

The LS-6XT controller is available in a rugged aluminum powder coated housing. An

LED Annunciator plate is integrated to the front for local annunciation of alarms that

are customizable on-site. Woodward easYview visualization panels are supported over

a separate Ethernet network that works as remote operator control panel.

Up to 32 LS-6XT controls are supported with up to 32 easYgen-3400XT/3500XT.

• Up to 64 LS-6XT are supported in one network with up to 16 GC-3400XT, each group

consisting up to 31 gensets.

• Purpose-built software to support single bus or redundant bus communications.

• Three independent true RMS AC measurement (system A, system B and auxiliary

voltage).

• Remotely selectable breaker transition modes: Open, Closed (short parallel

<100ms), Inter-change, Indefinite parallel.

• Internal power calculation with option to feed-in active power and reactive power

from external transducer.

• Phase match or slip frequency synchronization with voltage matching.

• Several built-in protection elements (including ROCOF, phase shift and flexible limits

for custom protection).

• Segment control for the load sharing.

• Automatic date and time synchronization between the LS-6XT units and the con

nected easYgen-3400XT/3500XT controls.

• Detailed interface communication diagnostics to monitor, visualize and troubleshoot

all the connected controls in the network.

• LS-6XT “Stand alone” mode without the easYgen-3400XT/3500XT is possible.

• Custom logic and configurable I/Os driven by LogicsManager and AnalogManger.

• HMI supported with RP-3000XT offering standard and customizable screens

• Ethernet interconnectivity and Modbus master functions for enhanced communica tion flexibility
