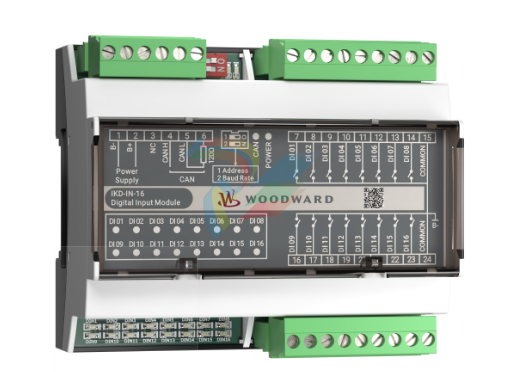

Woodward IKD-IN-16 16 DI Expansion Card 8440-2307

Product number: 8440-2307

Manufacturer product number: 8440-2304

Description: Woodward: IKD-IN-16 (UL, CE), 16 channel discrete input module, 12/24VDC.

The IKD-IN-16 is a smart solution to increase number of digital inputs to Woodward power management controllers or apply it as a remote input module in your PLC based control system.

Predecessor: 8440-2304

IKD-IN-16

Digital Input Expansion Module

The IKD-IN-16 offers a versatile and intelligent solution for expanding

the number of digital inputs on Woodward power management

controllers or serving as a remote input module within your PLC-based

control system.

The IKD-IN-16 input status are transferred over the CAN bus connection to the main controller. Digital input states are available in

the main controller. The two parameters such as module address and CAN baud rate can simply be setup

by onboard DIP switches. It allows you to connect one or more IKD-IN-16 modules (see table Related Products below)

Related products

SUPPORTED POWER MANAGEMENT CONTROLS

easYgen-3000XT

Group Controller GC-3400XT-P1

LS-6XT-P1 (Package 1)

LS-6XT-P2 (Package 2)

easYgen-2000

easYgen-800/1500/1700/1800

DTSC-200 and -200A

› 16 discrete inputs

MA X. # OF IKD- OUT-16

› Effortless plug-and-play compatibility with

Woodward power management controls

› Configuration, if required, is easily done via

DIP switches — no software tools needed

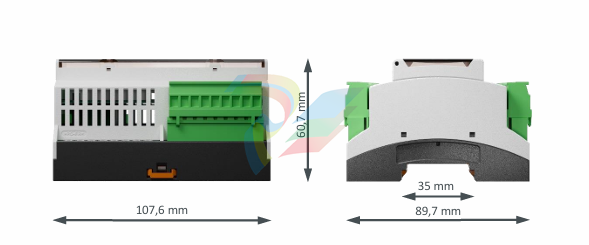

› Space-efficient design

› CANbus communication enables integration

with third-party PLCs (see product manual

37953 for CAN bus data telegram details)

› Visual Indicators: Power and CAN LEDs

show CPU and CAN interface status

IKD-IN-16

Ordering Part Number

8440-2307

Typical application

The monitoring and processing of these inputs are configured

through the main controller, enabling the setup of input names,

alarm classes, Normally Open (NO) or Normally Closed (NC) settings,

and delay times.
