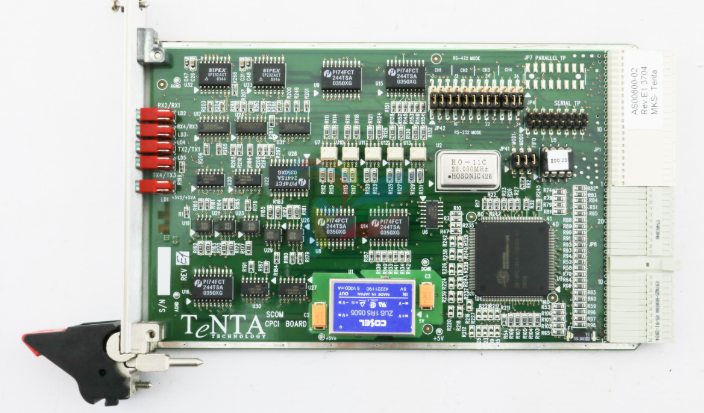

AMAT AS00800-02 Internal PCB Assembly

AMAT   AS00800-02  Internal PCB Assembly

Introduction

The AMAT AS00800-02 is a Serial Communication Control PCB, often designated as an SCOM (Serial Communication) cPCI Board.

 In the architecture of Applied Materials tools, this board facilitates high-speed, multi-channel serial data exchange between the tool's mainframe controller and its various subsystems,

such as robotic handlers, vacuum controllers, and power modules. It is a critical link in the CompactPCI (cPCI) backplane system used in modern 300mm wafer processing equipment.

2. Technical Parameter Table

3. Related Models

The AS00800-02 is part of an evolving series of serial communication boards. Related models include:

AMAT AS00800-04 (0190-07449): An updated version often used in Quad Serial configurations.

AMAT AS00800-08 (0190-23509): A higher-revision SCOM board for 300mm tools.

AMAT AS00800-09-2 (0190-47594): An Octal Serial (8-channel) variant for high-density I/O.

AMAT 0190-17234: Related cPCI board assemblies from the MKS TeNTA series.

4. Application Cases

Robotic End-Effector Control: Managing the serial feedback loop for wafer handling robots in Centura and Endura platforms.

Vacuum Subsystem Monitoring: Interfacing with serial-based vacuum gauges and turbo pump controllers to ensure chamber pressure stability.

Remote Power Management: Communicating with DC or RF power supplies that use serial command protocols rather than analog signals.

Legacy System Upgrades: Serving as the primary communication bridge when upgrading older VME-based systems to the cPCI architecture.

5. Product Advantages and Features

Determinstic Data Transfer: High-speed on-board processing ensures that serial commands are executed without the latency jitter common in standard PC-based serial ports.

Industrial Reliability: Built to MKS Instruments' high MTBF standards, capable of operating in the high-heat, high-EMI (Electromagnetic Interference) environments of semiconductor racks.

Multi-Protocol Versatility: Supports multiple serial standards on a single card, reducing the need for multiple specialized interface boards.

Gold-Plated cPCI Interface: Ensures corrosion-resistant, high-integrity connections with the tool's backplane.

6. Other Models in the Same Series

Within the AS00800 lineage, different suffixes indicate channel density and revision level:

AS00800-01/02: Original Quad Serial configurations.

AS00800-04/05: Mid-cycle revisions for enhanced driver stability.

AS00800-07/08: Late-stage revisions for high-speed 300mm "Enabler" toolsets.

7. Installation and Maintenance

Installation

Anti-Static Precautions: This board contains sensitive CMOS logic; always use an ESD-safe workspace and wrist strap.

Jumper/Switch Configuration: Verify on-board dip switches (if present) are set for the correct protocol (e.g., RS-232 vs. RS-422) as required by the tool's software.

Mechanical Seating: Slide the card into the cPCI slot and engage the lever handles firmly to ensure all 100+ pins on the backplane connector are fully seated.

Maintenance

Diagnostic Verification: Use the AMAT system's built-in "SCOM Test" utility to verify loopback signals and channel integrity.

Visual Inspection: Check for bulging capacitors or thermal discoloration on the driver ICs during annual preventive maintenance.

8. Unique Product Description

The AMAT AS00800-02 serves as the "translator" within the semiconductor tool's nervous system. While the tool's CPU speaks the language of high-level software,

the various mechanical components speak the language of serial data.

This board ensures that those two worlds communicate flawlessly, allowing for the sub-millimeter precision required in modern wafer manufacturing.
