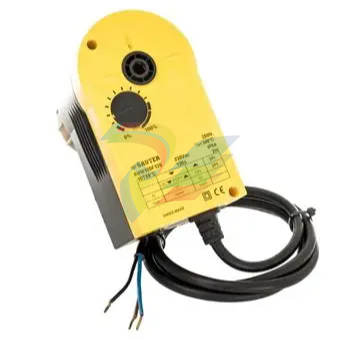

SAUTER AVM105F100 Linear Valve Actuator

SAUTER AVM105F100 Linear Valve Actuator

Valve actuator

AVM 105. 115

Features

Activation of 2-way and 3-way valves of the VUN/BUN, VUD/BUD and VUE/BUE series

For controllers with a switching (2-/3-point) output

Synchronous motor with electronic control unit and time-dependent cut-off

Direction of operation can be selected directly on the cable

Maintenance-free gearbox with magnetic coupling

Gear unit can be disengaged in order to position the valve by hand (hexagon key provided)

Connection with valve spindle performed automatically

Cap nut for valve fitting made of brass

Fitting vertically upright to horizontal, not suspended

AVM 105. 115: Valve actuator

How energy efficiency is improved

Torque-dependent cut-off facility for efficient usage of energy

Features

• Activation of 2-way and 3-way valves of the VUN/BUN, VUD/BUD and VUE/BUE series

• For controllers with a switching (2-/3-point) output

• Synchronous motor with electronic control unit and time-dependent cut-off

• Direction of operation can be selected directly on the cable

•Maintenance-free gearbox with magnetic coupling

• Gear unit can be disengaged in order to position the valve by hand (hexagon key provided)

• Connection with valve spindle performed automatically

• Cap nut for valve fitting made of brass

• Fitting vertically upright to horizontal, not suspended

Technical data

Power supply

Power supply 24 V~ ±20%, 50...60 Hz

Power supply 230 V~ ±15%, 50...60 Hz

Parameters

Actuator stroke1) 0...8 mm

Response time 200 ms

Ambient conditions

Admissible ambient temperature–10...55 °C

Temperature of medium Max. 100 °C

Admissible ambient humidity 5...95% rh, no condensation

Function

Control 2-/3-point

Construction

Weight 0.7 kg

Housing Lower section black, upper section

yellow

Housing material Fire-retardant plastic

Power cable 1.2 m long, 3 × 0.75 mm²

Standards and directives

Type of protection IP54 (EN 60529), horizontal

Protection class 24 V III (EN 60730)

Protection class 230 V II (EN 60730)

CE conformity according to EMC Directive 2014/30/EU EN 61000-6-1. EN 61000-6-2

EN 61000-6-3. EN 61000-6-4

Low-Voltage Directive 2014/35/EU EN 60730-1

EN 60730-2-14

Over-voltage category III

Degree of contamination II

Directive 2006/95/EC EEC (II B)

Machinery Directive 2006/42/EC

(according to Appendix II, 1B)

EN ISO 12100

Overview of types

Type Actuating power (N) Voltage Running time (s) Power consumption

AVM105F100 250 230 V~ 30 2.4 W, 4.5 VA

AVM105F120 250 230 V~ 120 2.0 W, 4.0 VA

AVM105F122 250 24 V~ 120 1.6 W, 1.7 VA

AVM115F120 500 230 V~ 120 2.0 W, 4.0 VA
