Autronica Fire alarm control panel BS-200

Autroprime 2 panels

For small-to-medium sized installations, Autroprime brings simplicity, quality and extensive functionality in one integrated system,

 providing safety and economy in a complete package.

Simplicity is the key feature for this system.

Through the entire process, from installation and commissioning, via use, to service, Autroprime is designed with a focus on simplicity.

Through our SelfVerify technology, the system ensures the daily maintenance routines by itself.

Autroprime is our easy, reliable and flexible fire detection system, providing a high-tech, low-cost alternative for fire detection in applications such as daycare centres, museums, small hotels, office buildings, etc.

The system is approved according to international standards, providing the efficient and reliable detection our customers have come to expect.

Maximum capacity

Panels per system:     8

Detection loops per panel:     4

Addresses per loop:     127*

Alarm units per loop:     40*

Loop units per panel:     508

Serial ports:     1

USB ports:     1

Ethernet RJ45:     1

*Depending on cable choice

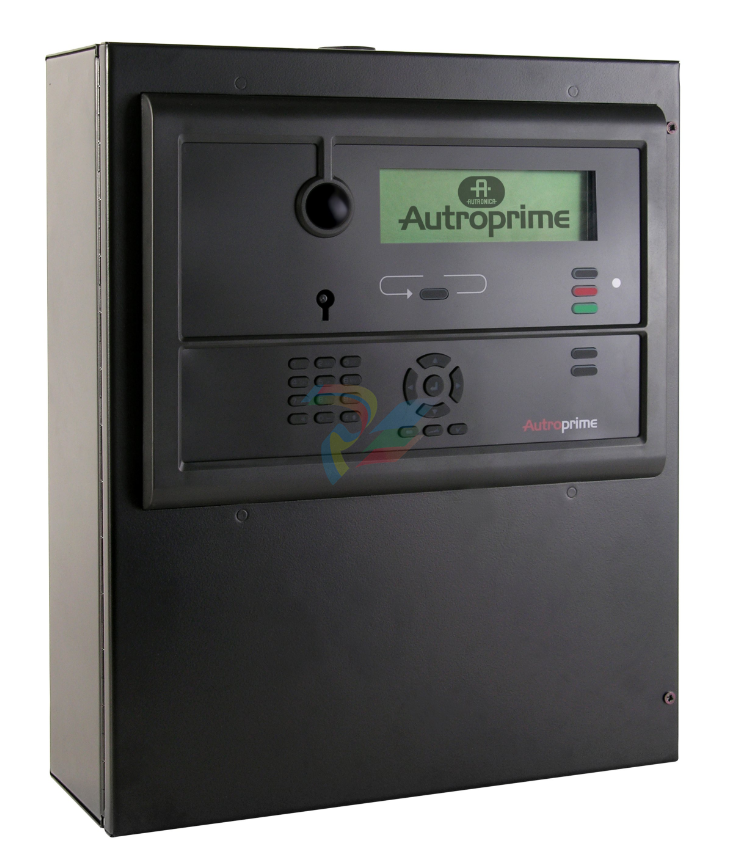

Fire alarm control panel BS-200

Full fire detection system with 2 loop drivers each controlling 127 devices.

The operator panel may be mounted remotely with redundant connections both for signal and power.

The panel serves as a stand-alone panel.

A maximum of 8 additional panels can be freely mixed and connected to the fire alarm control panel via the RS-485 panel bus, including repeater panels BS-211.

information panels BV-210. fire brigade panels BU-210 and mimic drivers BUR-200.

All alarm handling and system features can be configured, controlled and monitored from the panel.

The panel can accommodate up to a maximum of two detection loops.

The loops support most of of our detectors, several types of I/O devices for monitored outputs, open collector outputs, galvanic isolated inputs and monitored inputs.

It has a 5A power module for battery charging, and a built-in emergency battery.

The panel is menu operated on a 8-line display, with 40 characters per line.

The operator panel (BS-210), which is an integrated part of the BS-200 panel, can also be mounted separately outside the cabinet.

116-BS-200    FIRE ALARM CONTROL PANEL

116-BS-200N    AUTROPRIME 254 ADR COMPLETE N

116-BS-200N4    AUTROPRIME 508 ADR COMPLETE N

116-BS-200S    FIRE ALARM CONTROL PANEL SWED.

Part number: 116-BS-200
