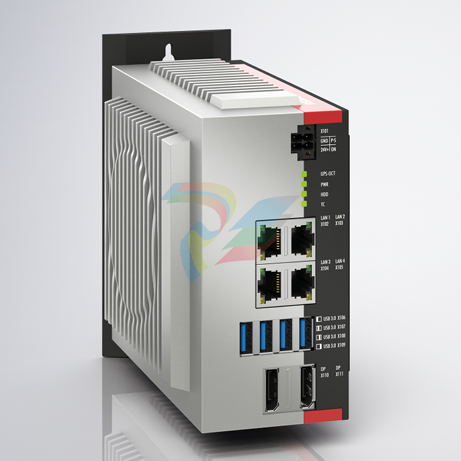

Beckhoff C6030-0060 Ultra-Compact Industrial PC

Beckhoff C6030-0060 Ultra-Compact Industrial PC

The C6030 Industrial PC is part of the series of ultra-compact industrial PCs for space-saving control cabinet

installation. It is a high-performance device.

The industrial PC has sufficient performance reserves for the following applications, among others:

• various automation and visualization tasks

• a wide range of IoT tasks with data preprocessing

• complicated HMI applications

• extensive axis controllers

• short cycle times

• high-volume data handling

• other PC applications

The basic configuration of the C6030 includes the following aspects:

• Intel® processor

• 2 x DRAM SODIMM

• M.2-SSD

• 24 V DC power supply uni

Interface description

In the basic configuration, the C6030 includes the following interfaces:

• Power supply (X101)

• Ethernet RJ45 (X102-X105)

• USB (X106-X109)

• DisplayPort (X110. X111)

3.2.1

Power supply

The industrial PC is supplied with a nominal voltage of 24 V. The 2x2-pin voltage socket (X101) is used for

connection to the power supply and the external wiring of the industrial PC

The plug for the power supply is specified for 8 A and can accommodate wire cross-sections of up to

1.5 mm2. For long supply lines, use 1.5 mm2 cables to achieve a low voltage drop on the supply lines. There

should be at least 22 V at the power supply plug of the industrial PC, so that the industrial PC remains

switched on during voltage fluctuations. The plug is included in the delivery. You can obtain a replacement

plug from your Beckhoff Sales using the following ordering option:

• C9900-P943: power supply connector for C60xx Industrial PC

A maximum cable length of 30 m is permissible for the Power Status output

The device is intended for use as a control system for automation, visualization and communication in

machine and system engineering.

The device has been developed for an IP20 working environment. This involves finger protection and

protection against solid foreign objects up to 12.5 mm. There is no protection against water. Operation of the

devices in wet and dusty environments is not permitted.

The specified limits for technical data must be adhered to.

The device can be used within the documented operating conditions.

Improper use

Do not use the device outside the documented operating conditions.

Fundamental safety instructions

The following safety instructions must be observed when handling the device.

Application conditions

• Do not use the device under extreme environmental conditions.

• Do not use the device in hazardous areas.

• Do not carry out any work on the device while it is live. Always switch off the supply voltage for the

device before mounting it, replacing device components or rectifying malfunctions.

• Never plug or unplug connectors during thunderstorms. There is a risk of electric shock.

• Ensure that the device has a protective and functional earth connection.

Damage to property, loss of data and impairment of functions

• If you change the hardware and software configurations, you must keep within the specified limits of

power consumption and power loss (please refer to the respective data sheet).

• Ensure that only trained specialists with a control and automation engineering background, operate the

device. Use by unauthorized persons can lead to damage to property and loss of data.

• Fuse the power supply line to protect the supply line in the event of a short circuit according to its

cross-section.

• In case of fire, extinguish the device with powder or nitrogen.

2.4

Operator's obligation to exercise diligence

The operator must ensure that

• the products are used only for their intended purpose (see Chapter 2.2 Intended use [

• the products are only operated in sound condition and in working order.

• the products are operated only by suitably qualified and authorized personnel.

• the personnel is instructed regularly about relevant occupational safety and environmental protection

aspects, and is familiar with the operating instructions and in particular the safety instructions contained

herein.

• the operating instructions are in good condition and complete, and always available for reference at the

location where the products are used.
