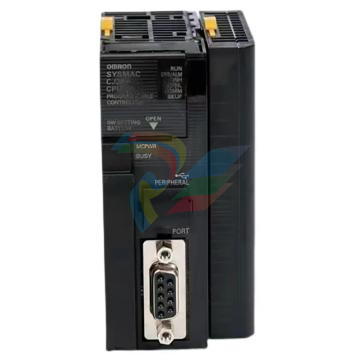

OMRON CJ1M-CPU13-ETN V4.0 PLC PLC

OMRON CJ1M-CPU13-ETN V4.0 PLC PLC

Please refer to the overview page for features of this product.

• Compact 90 × 65 mm (H × D) dimensions are first class in the industry.

• Provides excellent high-speed control performance, with high-speed processing of 0.1 μs for LD instructions and 13.3 μs for floating-point calculations.

• Other models are available with special functions such as the CJ1M-CPU2[], which provides positioning functions and built-in I/O, and the CJ1G-CPU4[]P.

• High-capacity Memory Cards up to 128 MB can be installed, and used to backup the program and system settings, or log customer data.

• The large instruction set can support diverse applications. Four types of programming are supported (ladder, structured text, sequential function charts,

and instruction lists), with approximately 400 instructions and 800 instruction variations.

• These CJ-series CPU Units support structured programming using function blocks, which can improve the customer's program development resources.

• The various protection functions provide improved security to protect valuable software resources and property.

• The CPU Units are compatible with the CX-One Integrated Tool Package. Information for each component can be linked, and the system's data can be integrated into one database.

The software can provide total support from PLC settings to network startup.

Information in this page is a reference that you created on the basis of information in the product catalog before the end of production,

may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

Applicable standards

Refer to the OMRON website or ask your OMRON representative for the most recent applicable standards for each model.

Name Specifications Current

consumption

(A) Model

number

Maximum number of

I/O points and

mountable Units (No.

of Expansion Racks) Program

capacity Data area

memory

capacity LD

execution

time 5 V

system 24 V

system

1638_lu_1_1 640 I/O points and

20 Units max.

(1 Expansion Rack max.) 20K

steps 32K words

DM: 32K

words

EM: None 0.1 μs 0.58 * --- CJ1M-CPU13

320 I/O points and

10 Units max.

(No Expansion Racks) 10K

steps CJ1M-CPU12

160 I/O points and

10 Units max.

(No Expansion Racks) 5K

steps CJ1M-CPU11

Note: These values include the current consumption of a Programming Console. When using an NT-AL001 RS-232C/

RS-422A Adapter, add 0.15A/per Adapter.

When using a CJ1W-CIF11 RS-422A Adapter, add 0.04A per Adapter.

Accessories

The following accessories come with CPU Unit:

Item Specification

Battery CJ1M: CJ1W-BAT01

End Cover CJ1W-TER01 (necessary to be mounted at the right end of CPU Rack)

End Plate PFP-M (2 pcs)

Note: A serial port (RS-232C) connector is not provided. Purchase a connector separately for serial port connection.

Plug : XM3A-0921 (manufactured by OMRON) or equivalent

Hood : XM2S-0911-E (manufactured by OMRON) or equivalent
