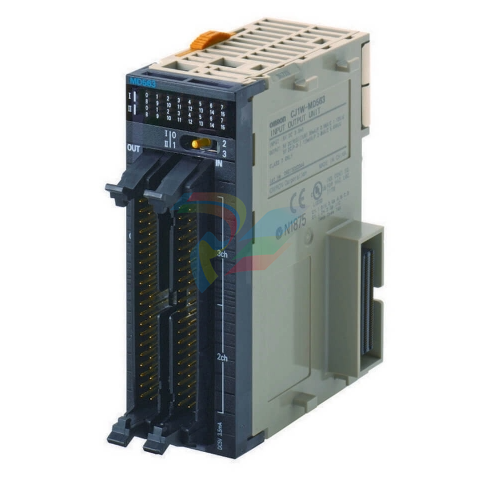

OMRON CJ1W-MD261 Digital I/O

CJ1W-MD261

CJ I/O, 32 in, NPN/PNP 24 VDC schakelvertraging instelbaar, 32 uit, transistor NPN

, 24 VDC / 0.3 A, met 2 x 40 punts Fujitsu aansluiting

Specificaties

I/O system    CJ I/O Bus

Expansion unit type    Basic I/O Unit

Type of module    Digital I/O

Number of digital inputs    32

Digital input type    PNP/NPN

Permitted voltage at input    20.4-26.4 V

OFF/ON delay    0-32 ms

Number of digital outputs    32

Digital output type    NPN

Permitted voltage at output    10.2-26.4 V

Output current    0.3 A

Short-circuit protected outputs

I/O connection type    FCN (plug not included)

Number of I/O connectors    2

Detachable I/O terminal block

Suitable for safety functions

Number of IOV (V+) terminals    4

Number of IOG (V-) terminals    4

Number of COM terminals    4

Product Height (unpacked)    90 mm

Product Width (unpacked)    31 mm

Product Depth (unpacked)    66.5 mm

Product Weight (unpacked)    110 g
