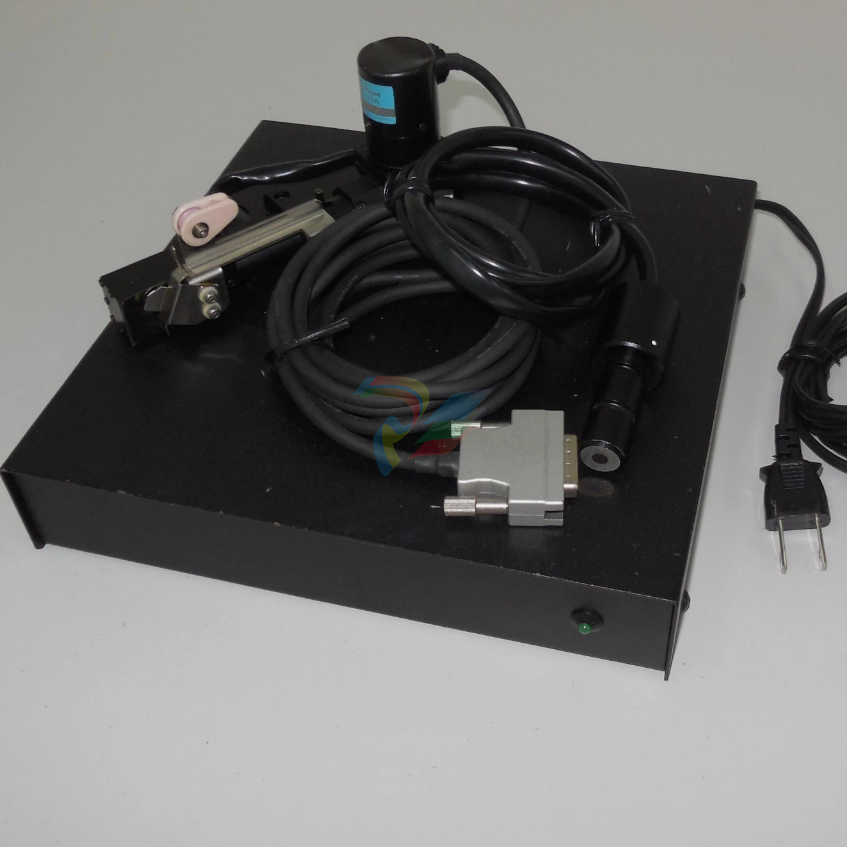

Shinkawa CMU-13A CMU13A Industrial Camera Controller

Shinkawa CMU-13A (CMU13A) Industrial Camera Controller is a high-speed vision processing and camera interface control unit manufactured by Shinkawa Electric.

Specially engineered for automated semiconductor assembly machinery, microelectronic wire bonders, and high-precision pick-and-place equipment,

the CMU-13A coordinates high-resolution optical sensing, pattern recognition trigger logic, and image data acquisition to enable accurate component alignment during ultra-fast manufacturing cycles.

Product Introduction / Overview

The CMU-13A acts as the primary image acquisition hub between specialized industrial cameras, illumination sources, and the machine's central motion controller.

By offloading complex camera synchronization, shutter timing, and raw frame capture from the main processing unit, it ensures zero-latency visual feedback for fine-pitch die bonding, wire alignment, and Automated Optical Inspection (AOI) applications.

Technical Parameter List

Product Features & Core Advantages

Ultra-Fast Hardware Triggering: Provides low-jitter external hardware strobe and camera triggering to synchronize frame capture with precise X-Y-Z stage motion.

High-Speed Frame Capture: Supports multi-camera parallel image processing for simultaneous top-down and multi-angle component alignment.

Hardened Noise Immunity: Multi-layer PCB shielding and optoelectronic I/O barriers protect delicate image data from high-frequency servo drive noise and electro-magnetic interference (EMI).

Seamless Motion Synchronization: Integrates directly with Shinkawa equipment controllers (such as the UTC series) via direct system bus connections.

Compact Footprint: Space-saving enclosure designed for tight mounting inside automated semiconductor assembly enclosures.

Model Classification

CMU-13A: Standard camera controller unit for automated bonding and vision alignment equipment.

CMU-10 / CMU-12 Series: Legacy industrial camera processing units.

EFU-10: Spark generator / Electronic Flame Off unit for wire bonding systems.

UTC-1000: System processor motherboard operating alongside CMU vision controllers.

Environmental Tolerance Conditions

Operating Temperature: 0°C to +50°C (32°F to 122°F)

Storage Temperature: -20°C to +70°C (-4°F to 158°F)

Relative Humidity: 10% to 90% RH (Non-condensing)

Vibration Resistance: Conforms to IEC 60068-2-6 guidelines for semiconductor manufacturing equipment

Enclosure Rating: IP20 (Must be housed within an IP54 or NEMA 12 cleanroom-rated enclosure)

Installation Method

Power Isolation: Ensure main equipment power is isolated before installing or servicing the CMU-13A module.

Mechanical Fastening: Secure the CMU-13A module to the machine's electrical mounting plate or rack frame using screws with split lock washers to prevent loosening from rapid stage accelerations.

Cabling & Shielding: Connect industrial camera lines using high-flex, double-shielded vision cables. Secure cable strain relief clamps near the module connectors.

Grounding Safety: Connect the chassis ground terminal to the main equipment earthing bus using a low-impedance ground strap to suppress high-frequency image noise.

Operating Instructions

Camera Synchronization: Configure frame rate, exposure timing, and strobe pulse duration in the system software interface prior to starting automatic runs.

Cable Handling: Maintain minimum bend radii on industrial camera cables to prevent internal signal line degradation over millions of continuous flex cycles.

Routine Maintenance: Keep panel air vents clear of dust buildup and periodically inspect locking thumb-screws on camera interface ports for tightness.
