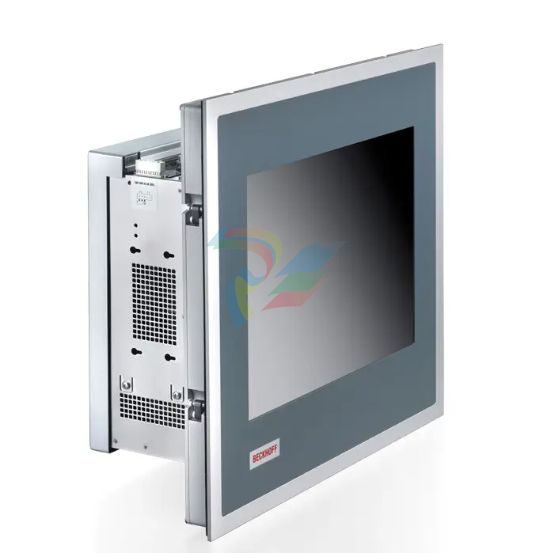

BECKHOFF CP6503-0001-0050 Built-in Panel PC

BECKHOFF CP6503-0001-0050  Built-in Panel PC

CP65xx-xxxx-0090 | Built-in Panel PC

The Panel PC series CP65xx is designed for installation in the front of a control cabinet.

A built-in Control Panel with DVI and USB interface is the front of the Panel PC.

The correct display size and keyboard are thus available for every application.

The CP65xx built-in Industrial PCs represent a powerful platform for machine construction and plant engineering applications, for example with the TwinCAT automation software under Windows 10 IoT Enterprise.

The 7-slot ATX Panel PCs CP65xx can be equipped with 12-, 15- or 19-inch TFT display, as a monitor without keys or with different types of keyboards.

A touch screen or touch pad is optionally available. A large number of push-button extensions are also available.

Product variants    Processor    Product status

CP65xx-xxxx-0090    Intel® Celeron®, 2 cores (TC2. TC3: 50*),

Intel® Pentium®, 2 cores (TC2. TC3: 50*),

Intel® Core™ i3. 2 cores (TC2. TC3: 60*),

Intel® Core™ i5. 4 cores (TC2. TC3: 70*),

Intel® Core™ i7. 4 cores (TC2. TC3: 80*)

(6th generation)

Intel® Core™ i3. 2 cores (TC3: 60*),

Intel® Core™ i5. 4 cores (TC3: 70*),

Intel® Core™ i7. 4 cores (TC3: 80*)

(7th generation)    regular delivery (not recommended for new projects)

Technical data    CP65xx-xxxx-0090    Options

Device type    Built-in Panel PC

Housing    7 slot ATX housing

Installation    pull-out clamping levers for fast installation without loose parts

Protection rating    front side IP65. rear side IP20

Operating temperature    0…55°C

Display size/resolution    12" 800 x 600. 15" 1024 x 768 or 19" 1280 x 1024

Touch screen    single-finger touch screen or touch pad

Front keyboard    alphanumerical or numerical PC keyboard in US layout or only function keys, each variant with 10 PLC special keys and LEDs or front laminate without keys, only display

Processor    Intel® Celeron® G3900 2.8 GHz, 2 cores (TC2. TC3: 50)    up to Intel® Core™ i7 7700 3.6 GHz, 4 cores (TC3: 80)

Motherboard    ATX motherboard for 6th/7th generation Intel® Celeron®, Pentium®, Core™ i3/i5/i7

PCIe® slots    2 x PCIe® x1. 2 x PCIe® x4. 1 x PCIe® x16. 2 x PCI™ for up to 190 mm long plug-in cards

Memory    4 GB DDR4 RAM    up to 64 GB DDR4 RAM

Graphic    integrated in the processor

Ethernet    2 x 100/1000BASE-T on-board

RAID    on-board SATA RAID 1 controller

Hard disks/flash    hard disk, 3½-inch, 1 TB    hard disk up to 4 TB, SSD, CFast

Disk drive    –    multi DVD

Interfaces    4 x USB 3.0. 2 x DVI, 1 x DisplayPort, 1 x RS232. PS/2 keyboard and mouse    8 x USB 2.0. 3 x RS232

Power supply    100…240 V AC    24 V DC, UPS

Operating system    –    Windows 10 IoT Enterprise
