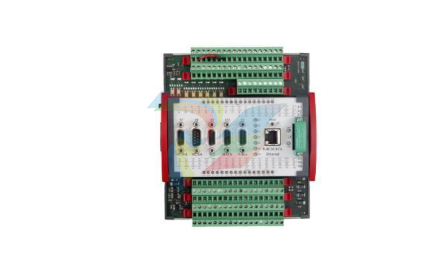

MOOG D136-001-008 D136-001-008a high-performance Digital Control

MOOG D136-001-008 and its variant, the D136-001-008a, are high-performance Digital Control Modules (DCM) belonging to the renowned Moog M3000® automation series.

These units serve as the "brain" for advanced hydraulic and electric motion control systems, providing the processing power required for high-speed closed-loop control of position, force, and pressure.

While the D136-001-008 is the standard hardware configuration, the "a" suffix typically denotes a specific revision or a factory-preconfigured firmware version tailored for standardized industrial axis control.

Technical Parameter Table

MOOG D136-001-007: Similar to the 008 but includes an integrated Profibus-DP interface.

MOOG D136-002-001: The MSC II version with enhanced processing and EtherCAT support.

MOOG G122-824: A dedicated controller often used in tandem for simpler open-loop or specific PID tasks.

Application Cases

Plastic Injection Molding: Precise control of the injection cylinder for consistent part density.

Hydraulic Presses: Synchronization of multiple cylinders to ensure uniform pressure across large die surfaces.

Wind Turbines: Real-time pitch control of blades to optimize energy capture and prevent structural overstress.

Flight Simulators: Managing the high-dynamic motion of 6-DOF (Degree of Freedom) Stewart platforms.

Product Advantages and Features

Millisecond Precision: Executes complex control algorithms with a 400 µs cycle time, essential for high-frequency hydraulic dynamics.

Multi-Interface Connectivity: Features dual CAN interfaces, allowing for redundant communication or separate paths for sensors and actuators.

Compact DIN Rail Design: Minimizes cabinet space while providing high I/O density.

Modular Scalability: The side-mounted E-Bus allows for seamless integration of additional I/O or sensor modules without external wiring.

Industrial Grade: Built-in protection against short circuits, overvoltage, and reverse polarity.

Installation and Maintenance

Installation

Mounting: Snap the module onto a 35mm DIN rail. If using expansion modules, ensure they are clicked together via the E-Bus connector before powering on.

Wiring: Use shielded cables for analog inputs to prevent EMI (Electromagnetic Interference) from high-power motor lines.

Grounding: The DIN rail must be connected to a central grounding point with low impedance.

Maintenance

Visual Check: Inspect the front-panel LEDs (Run, Error, Power) for status diagnostics.

Backup: Regularly back up the application software and parameters using the MACS (Moog Axis Control Software) tool.

Cooling: Ensure vertical airflow is not obstructed; maintain a minimum clearance of 20mm from adjacent non-M3000 components.
