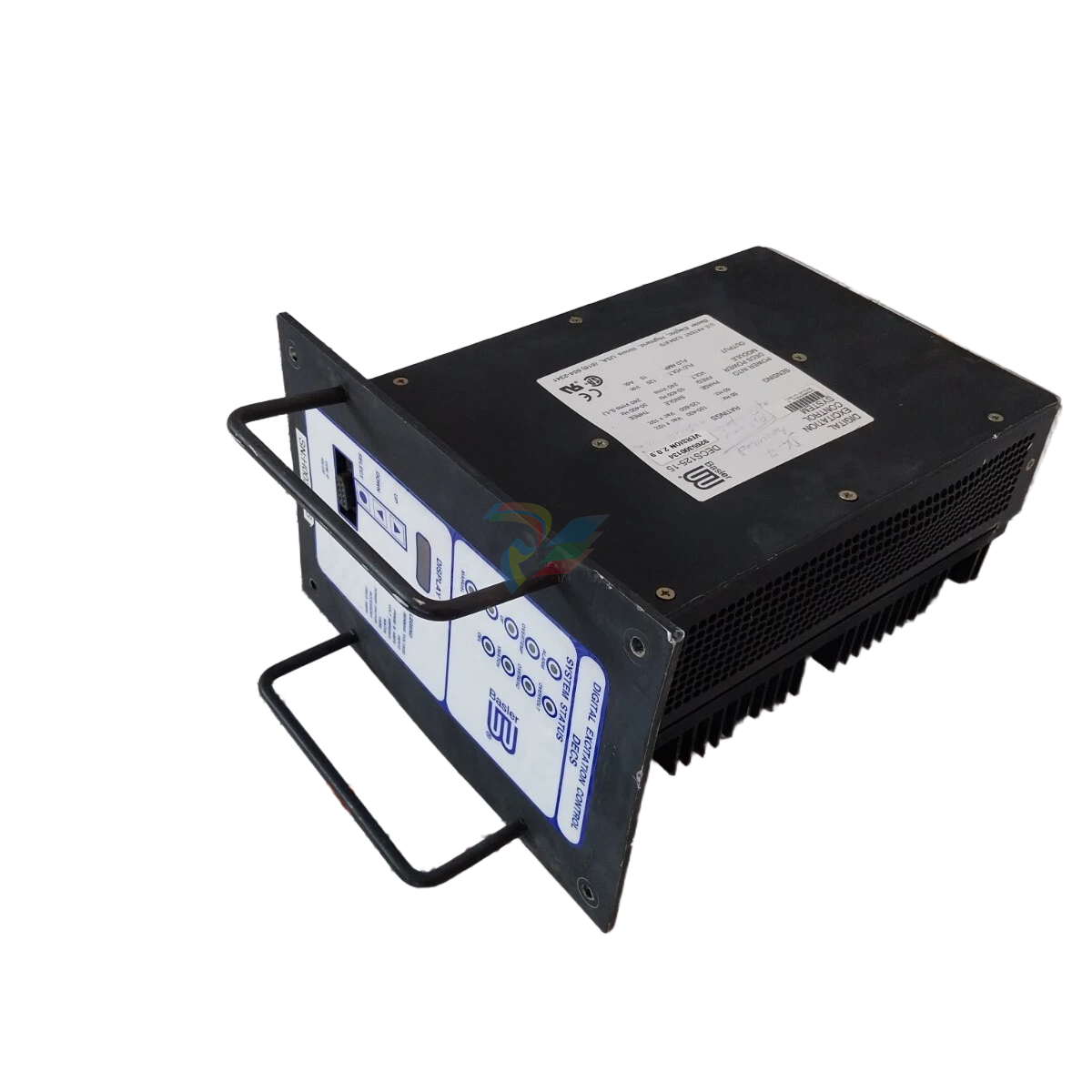

BASLER ELECTRIC DECS125-15-B2C5 DIGITAL EXCITATION CONTROL SYSTEM V 2.0.9

BASLER ELECTRIC DECS125-15-B2C5 DIGITAL EXCITATION CONTROL SYSTEM V 2.0.9

Checking the State of Inputs

You can review the state of the inputs through the front panel HMI, the ASCII command interface, or

BESTCOMS Metering screen. The front panel HMI displays the input status on Screen 1.4.1. A diagram

showing all of the menu tree branches is located in Section 10. Human-Machine Interface. To get to this

screen, press the UP scrolling pushbutton until you reach the top screen in the current branch. You know

when you have reached the top screen because the screen stops changing when you press the UP

scrolling pushbutton. From this position, press the RIGHT scrolling pushbutton until you have reached the

screen titled, REPORT STATUS. From this position press the DOWN scrolling pushbutton one time

(TARGETS) and press the RIGHT scrolling pushbutton three times. At this time, you should see the

OPERATIONAL STATUS Screen. If you press the DOWN scrolling pushbutton from this screen, you

should see the INPUTS Screen (IN 1234).

To check the state of the inputs using the ASCII command interface, type in the RG-STAT command and

press enter. This command only reads the status of the inputs.

Testing

To determine if the relay is responding correctly to each test, the following commands are useful:

1. RG-TARG, (report general targets): reports the targets from the last fault.

2. RF, (report faults): reports a directory listing of the twelve fault summary reports. The fault summary

reports are numbered from 1 to 255. then wrap around, and start over. RF-### reports the ### report.

3. RS-##, (report sequence of events record), ## events: reports the most recent ## changes of state

in the protection and control logic.
