EJ7211-0010 | EtherCAT plug-in module, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT

EJ7211-0010 | EtherCAT plug-in module, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT

The EJ7211-0010 EtherCAT plug-in module with integrated One Cable Technology (OCT) offers high servo performance in a very compact design for motors from the AM8100 up to 4.5 A (Irms).

The One Cable Technology combines a motor cable and an absolute feedback system in a single cable.

The integrated electronic type plate of the AM81xx motors can be read in automatically by the module to configure the motor parameters automatically. Thus, wiring and commissioning expenditure are minimized.

The fast control technology, based on field-orientated current and PI speed control, supports fast and highly dynamic positioning tasks. The monitoring of numerous parameters,

such as overvoltage and undervoltage, overcurrent, module temperature or motor load via the calculation of a I²T model, offers maximum operational reliability.

EtherCAT, as a high-performance system communication, and CAN-over-EtherCAT (CoE), as the application layer, enable ideal interfacing with PC-based control technology.

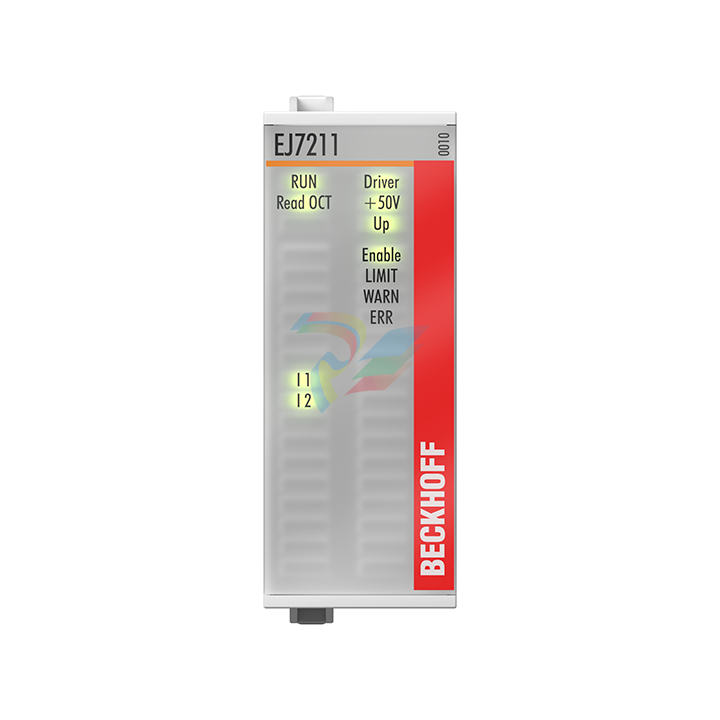

The latest power semiconductors guarantee minimum power loss and enable feedback into the DC link when braking. 16 signal LEDs indicate status, warning and error messages as well as possibly active limitations.

Technical data    EJ7211-0010

Technology    compact drive technology

Connection technology    direct motor connection with OCT

Number of channels    1

Number of inputs    2 x end position, 1 x feedback

Number of outputs    1 x servomotor, 1 x motor brake

Load type    Permanent Magnet Synchronous Motor (PMSM)

Supply voltage power    8…48 V DC (via distribution board)

Supply voltage electronics    24 V DC (via signal distribution board)

Output current (rms)    4.5 A

Peak current (rms)    max. 9.0 A for 1 s

Rotating field frequency    0…599 Hz

PWM clock frequency    16 kHz

Current controller frequency    32 kHz

Rated speed controller frequency    16 kHz

Output voltage motor brake    24 V DC

Output current motor brake    max. 0.5 A

Auxiliary power current    no data

Current consumption E-bus    typ. 130 mA

Distributed clocks    yes

Electrical isolation    500 V (E-bus/field potential)

Safe stop functions    –

Special features    compact and system-integrated, absolute feedback, One Cable Technology (OCT), plug and play

Weight    approx. 50 g

Storage temperature    -25…+85°C

Relative humidity    95%, no condensation

EMC immunity/emission    conforms to EN 61000-6-2/EN 61000-6-4

Vibration/shock resistance    conforms to EN 60068-2-6/EN 60068-2-27

Protect. rating/installation pos.    IP20/see documentation

Approvals/markings    CE, UL

Technical data

Housing data

Housing data    EJ_24_2x16pin_Code18

Weight    approx. 50 g

Protection rating    IP20

Material    polycarbonate

Dimensions | Width (single)    24 mm

Dimensions | Height    66 mm

Dimensions | Depth    55 mm

Installation    2 x 20-pin socket strip on signal distribution board

Connection technology    application-specific plug on the signal distribution board

Mechanical coding    yes

Position of the coding pins    1. 8
