BECKHOFF EL4732 (PKG OF 10) NSMP
❤ Add to collection

BECKHOFF EL4732 (PKG OF 10) NSMP

BECKHOFF EL4732 (PKG OF 10) NSMP

U.S.$6980.00
U.S.$5340.00
U.S.$5073.00
U.S.$4966.20
Weight:1.290KG
Quantity:
(Inventory: 1)
Buy now
Add to cart
Description

BECKHOFF EL4732 (PKG OF 10) NSMP


BECKHOFF EL4732 (PKG OF 10) NSMP

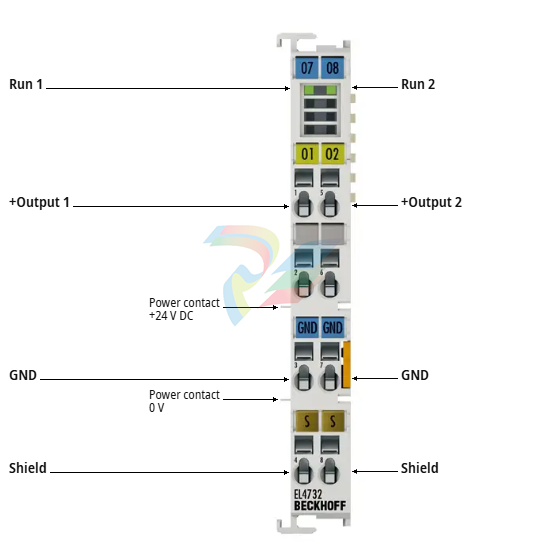

EL4732 | EtherCAT Terminal, 2-channel analog output, voltage, ±10 V, 16 bit, oversampling

EL4732 | EtherCAT Terminal, 2-channel analog output, voltage, ±10 V, 16 bit, oversampling

The EL4732 analog output terminal generates signals in the range between -10 V and +10 V.

The voltage is supplied to the process level with a resolution of 16 bits and is electrically isolated.

The output channels have a common ground potential.

The outputs are oversampled with an adjustable, integer multiple (oversampling factor: n) of the bus cycle frequency (n microcycles per bus cycle).

For each bus cycle, the EtherCAT Terminal receives a process data block that is output consecutively. The time base of the terminal can be synchronized precisely with other EtherCAT devices via distributed clocks.

This procedure enables the temporal resolution of the analog output signals to be increased to n times the bus cycle time. In conjunction with the EL37xx (analog input terminal with oversampling), responses with equidistant time intervals, e.g.

in the event of a threshold value being exceeded, become possible. The EL4732 device can output a maximum of 100.000 values (100 ksamples/s) per channel and second

Technical data    EL4732

Number of outputs    2

Power supply    via the E-bus

Signal voltage    -10…+10 V

Oversampling factor    n = 1…100 selectable

Distributed clocks    yes

Distributed clock precision    << 1 µs

Load    > 5 kΩ (short-circuit proof)

Resolution    16 bit (incl. sign)

Output error    < 0.1% (relative to end value)

Electrical isolation    500 V (E-bus/signal voltage)

Conversion time    ~ 10 µs

Output rate    max. 100 ksamples/s

Current consumption power contacts    –

Current consumption E-bus    typ. 180 mA

Bit width in the process image    n x 2 x 16 bit output, 32 bit CycleCounter

Special features    oversampling

Weight    approx. 50 g

Operating temperature    -25…+60°C

Storage temperature    -40…+85°C

EMC immunity/emission    conforms to EN 61000-6-2/EN 61000-6-4

Relative humidity    95%, no condensation

Vibration/shock resistance    conforms to EN 60068-2-6/EN 60068-2-27

Protect. rating/installation pos.    IP20/variable

Pluggable wiring level    for all ESxxxx terminals

Approvals/markings    CE, CCC, UL, ATEX, IECEx, cFMus

Ex marking    ATEX:

II 3 G Ex ec IIC T4 Gc

IECEx:

Ex ec IIC T4 Gc

cFMus:

Class I, Division 2. Groups A, B, C, D

Class I, Zone 2. AEx ec IIC T4 Gc

Technical data

Housing data

To top

Housing data    EL-12-8pin    ES-12-8pin

Design form    compact terminal housing with signal LEDs    terminal housing with pluggable wiring level

Material    polycarbonate

Installation    on 35 mm DIN rail, conforming to EN 60715 with lock

Side by side mounting by means of    double slot and key connection

Marking    labeling of the BZxxxx series

Wiring    solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver

Connection cross-section    s*: 0.08…2.5 mm²,

st*: 0.08…2.5 mm²,

f*: 0.14…1.5 mm²    s*: 0.08…1.5 mm²,

st*: 0.08…1.5 mm²,

f*: 0.14…1.5 mm²

Connection cross-section AWG    s*: AWG28…14.

st*: AWG28…14.

f*: AWG26…16    s*: AWG28…16.

st*: AWG28…16.

f*: AWG26…16

Stripping length    8…9 mm    9…10 mm

Current load power contacts    Imax: 10 A

Dimensions (W x H x D)    12 mm x 100 mm x 68 mm
