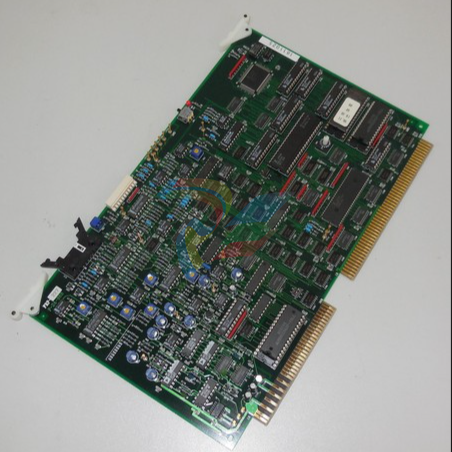

Shinkawa FRP-227 (P-24-86A / P-24-86B) Circuit Board Module

Shinkawa FRP-227 (P-24-86A / P-24-86B) Circuit Board Module

The Shinkawa FRP-227 (Part Numbers: P-24-86A and P-24-86B) is a high-precision industrial printed circuit board (PCB) module manufactured by Shinkawa Electric Co., Ltd. (Japan). It is designed for real-time signal conditioning, system interface management, and machine protection within automated industrial control systems, turbomachinery monitoring frameworks, and Shinkawa semiconductor wire-bonding equipment.

Product Introduction / Overview

The FRP-227 Circuit Board Module serves as a core processing unit designed to receive, filter, and execute control logic or condition monitoring signals. Built for continuous $24/7$ operational environments, it bridges primary field inputs with central rack processing units.

The designations P-24-86A and P-24-86B denote specific physical board revisions, component placement schemes, or trace configurations within the FRP-227 product line. Both hardware iterations maintain operational compatibility across designated rack backplanes and control frames.

Manufacturer: Shinkawa Electric Co., Ltd. (Made in Japan)

Module Code: FRP-227

PCB Revision Part Numbers: P-24-86A / P-24-86B

Category: Industrial Control & Signal Conditioning Circuit Card

Application Scope: Turbomachinery Condition Monitoring, Machine Protection Systems, Industrial Semiconductor Equipment Control

Technical Table

Environmental Tolerance Conditions

To ensure reliable performance and prevent component stress, the FRP-227 module must operate within the following environmental limits:

Operating Temperature Range: 0°C to +60°C (32°F to 140°F)

Storage Temperature Range: -20°C to +70°C (-4°F to 158°F)

Relative Humidity: 5% to 95% RH (Non-condensing)

Vibration Resistance: 10 Hz to 55 Hz, 0.15 mm amplitude (per IEC 60068-2-6)

Shock Resistance: 15g peak acceleration, 11 ms duration

Atmospheric Environment: Free of conductive dust, corrosive gas atmospheres, active organic solvents, and strong electromagnetic field interference (EMI).

Operating Instructions

1.Power Disconnection：Safety Prerequisite。

Isolate and disconnect main power to the target control chassis or rack cage. Ensure all auxiliary supply lines are de-energized prior to touching internal hardware.

2.ESD Grounding Setup：Pre-Handling。

Equip a grounded ESD wrist strap connected to a verified earth ground to protect sensitive integrated circuits from static discharge.

3.Module Installation：Insertion。

Align the edges of the P-24-86A or P-24-86B circuit card with the card cage guide rails. Slide the board smoothly into the slot until the rear multi-pin connector seats firmly into the backplane socket.

4.System Initialization：Verification。

Tighten front panel retaining screws to secure the card and ensure chassis grounding continuity. Reapply system power and verify normal startup status via chassis diagnostic lights.

Fault Diagnosis

When encountering operational errors related to the Shinkawa FRP-227 module, refer to the following diagnostic guidelines:

Symptom 1: Status LED Unlit / Module Unresponsive

Possible Cause: Loose backplane connection, bent connector pins, or power bus failure.

Corrective Action: Power down the rack, remove the module, inspect the rear pins for damage, and re-seat the card firmly into the backplane slot. Verify backplane DC power rails.

Symptom 2: Signal Distortion or Intermittent Readings

Possible Cause: Loose field wiring, oxidation on gold-finger connectors, or excessive electrical noise.

Corrective Action: Clean gold-finger contacts with isopropyl alcohol. Check external shielding continuity and ground loop integrity across all input channels.

Symptom 3: System Fault / Communication Over-range Alarm

Possible Cause: Field sensor loop open-circuit or internal component degradation.

Corrective Action: Swap the suspect FRP-227 module with a verified working unit to determine if the fault originates from field wiring or the circuit board hardware.

Related Models of the Same Series

The FRP-227 module operates within a broader family of Shinkawa industrial control, driver, and interface boards, including:

FRP-226 (P-24-86A / P-24-86B): Sister signal conditioning and control card series.

FRP-249A: Industrial control board series for semiconductor wire bonders.

CPP-107A (P-22-99A / P-22-99B): Vibration monitoring and signal processing board module.

MDP-104 (P-25-83A / P-25-83B): Microprocessor control and system interface board.

IOP-44 / USP-17A: Auxiliary I/O and signal expansion cards.

Storage Conditions

Packaging: Keep the board sealed inside an anti-static ESD shielding bag with moisture-absorbing desiccant packs.

Storage Environment: Store in a clean, climate-controlled indoor space at 15°C to 25°C with relative humidity below 60% (non-condensing).

Placement: Store upright on wooden or metal shelving off concrete floors; protect from direct sunlight, corrosive chemical fumes, and heavy structural vibration.
