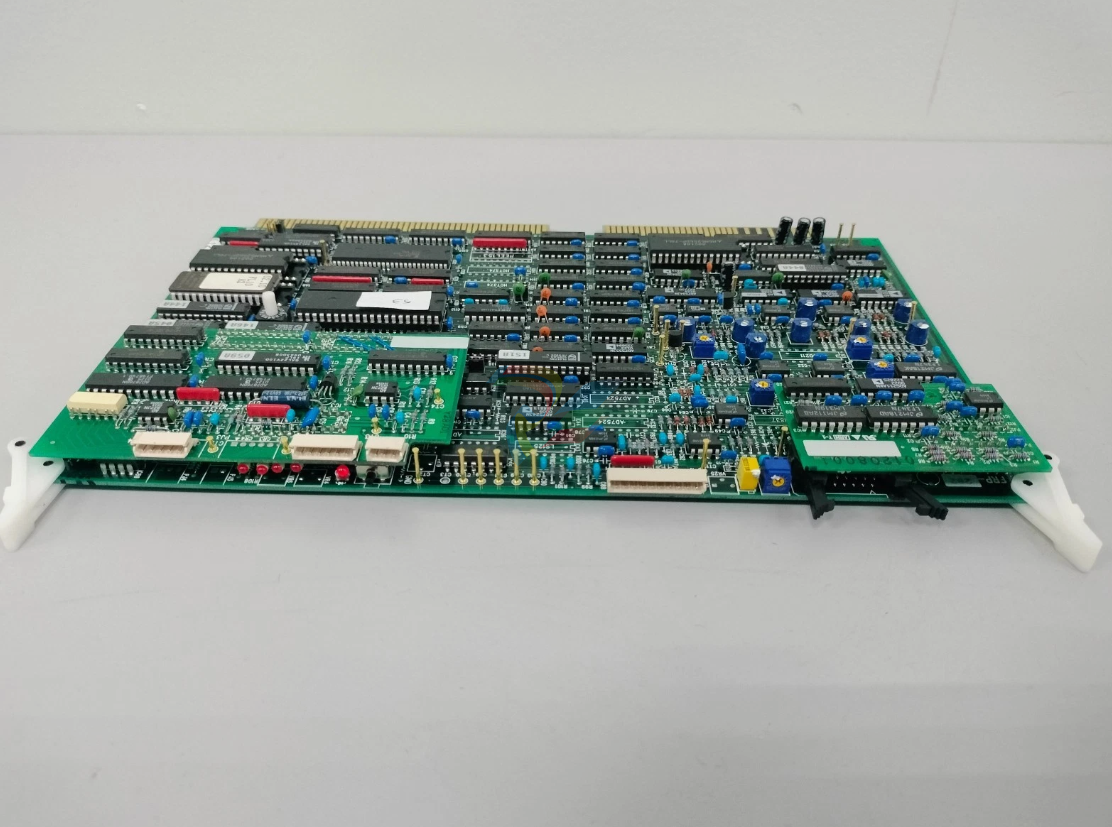

Shinkawa FRP-282 P-24-35A P-24-35B Circuit Board Module

Shinkawa FRP-282 P-24-35A P-24-35B Circuit Board Module

Shinkawa FRP-282 (including hardware sub-variants P-24-35A and P-24-35B) is an industrial-grade circuit board module engineered by Shinkawa Electric Co., Ltd. Built for integration into machinery protection and condition monitoring rack frames, this module conditions, processes, and transmits critical sensor data for heavy rotating equipment.

Product Introduction / Overview

The Shinkawa FRP-282 module acts as a core signal processing card within Shinkawa control systems. It is primarily responsible for converting field inputs—such as eddy-current displacement probe signals, position sensors, or velocity transducers—into standardized control outputs for real-time vibration analysis and automated machinery shutdown routines.

Core Function: Signal conditioning, threshold monitoring, and backplane bus communications.

Target Equipment: Turbines, industrial compressors, generators, large boiler feed pumps, and centrifuges.

Revision Designation: P-24-35A and P-24-35B represent specific manufacturing batch revisions, pinout channel configurations, and internal impedance balancing optimized for distinct system backplane architectures.

Technical Table

Environmental Tolerance Conditions

Operating Instructions

Pre-Installation Safety: Disconnect the main power frame before inserting or removing the card to prevent arc-flash or transient damage.

ESD Precautions: Wear an antistatic wrist strap connected to a grounded chassis point while handling the module.

Card Slot Alignment: Align the PCB edges with the upper and lower slot guides of the Shinkawa card rack.

Insertion & Locking: Push the module firmly into the backplane connector and lock the front panel screws/latches.

System Verification: Apply power and verify that status LEDs report normal operating parameters before initializing the attached machinery.

Fault Diagnosis

Related Models of the Same Series

Shinkawa FRP-338 (P-26-54A / P-26-54B)

Shinkawa FRP-280 Series Signal Conditioners

Shinkawa VM-5 Series Vibration Monitoring Racks

Shinkawa VM-7 Series Condition Monitoring Cards

Shinkawa FK-202F Driver / Phase Reference Units

Storage Conditions

To maintain long-term component reliability and prevent dielectric breakdown, adhere to the following storage parameters:

Storage Temperature: -20°C to +70°C (-4°F to 158°F)

Storage Humidity: 5% to 95% RH (Non-condensing)

Packaging: Must remain sealed in moisture-barrier ESD shielding bags with desiccant packs when not installed in an active rack.

Atmosphere: Keep in a dust-free, climate-controlled indoor space free from corrosive chemicals (e.g., sulfur dioxide, chlorine gas).
