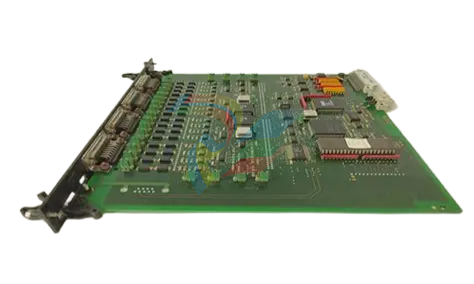

ALSTOM IR139-1 High-Efficiency Inverter / Control Board

Introduction to ALSTOM IR139-1

The ALSTOM IR139-1 is a high-efficiency Control Board Module (often categorized as an industrial motherboard or inverter/rectifier controller) specifically designed for the CE2000 control system.

This module is a mission-critical component in rail transit and power conversion, serving as the bridge between high-voltage electrification systems and onboard electronic control logic.

It is engineered to handle complex data processing tasks, ensuring the reliable conversion of power (DC to AC) while maintaining stable communication with the wider industrial network via protocols like Modbus and Ethernet.

Technical Parameter Table

Related Models & Same Series

The IR139 series is part of the modular CE2000/ALSPA infrastructure:

IR139-2: A variant often featuring modified I/O density for specific rail signaling.

IR140 / IR142: Higher-power inverter modules within the same traction control family.

AS111 / AL132: Companion analog and logic modules that frequently interface with the IR139-1 in DCS racks.

GE Fanuc Compatibility: Often cross-referenced as GE ALSTOM IR139-1 due to heritage product support.

Product Advantages and Features

High Processing Power: The integration of i7-class processors allows the board to handle real-time power conversion algorithms without latency.

Railway Grade Reliability: Designed to operate in high-vibration and electrically noisy environments typical of locomotive or substation use.

Efficient Power Conversion: Specifically optimized for converting DC line voltage to regulated AC power for onboard systems with minimal heat loss.

Robust Connectivity: Equipped with multi-interface support (Ethernet/Serial), making it compatible with both legacy and modern SCADA systems.

Extended Life Cycle: Built with industrial-grade components and aging-tested to ensure a long MTBF (Mean Time Between Failures).

Application Cases

Railway Traction: Installed in high-speed trains to manage the conversion of overhead line power for onboard lighting, HVAC, and computers.

Power System Automation: Used in electrical substations to monitor and control rectifier units.

Heavy Industry: Managing frequency conversion for large-scale pumps and fans in chemical and metallurgical plants.

Marine Systems: Providing stable frequency and voltage regulation for shipboard propulsion and auxiliary power grids.

Installation and Maintenance

Installation

Chassis Mounting: The module should be installed in a standard CE2000 rack or a dedicated IP-rated enclosure. Ensure the IP65 seal is intact if mounting in outdoor cabinets.

Thermal Management: While the module is rugged, ensure adequate spacing for airflow; the i7 processor requires active or passive heat dissipation depending on the load.

Configuration: Parameters can be set via the onboard display interface or by connecting via the RS-485 port using the Alstom engineering software.

Maintenance

Visual Diagnostics: Use the onboard LEDs to monitor system health (Link, Activity, Status).

Memory Health: For units in high-vibration areas, periodically verify the seating of DDR4 modules and SSD storage to prevent intermittent data errors.

Cleaning: Keep the communication ports free of carbon dust, which is common in railway environments, to prevent signal tracking or shorts.

Unique Product Description

The ALSTOM IR139-1 is where high-performance computing meets raw electrical power.

 It is one of the few industrial modules that packs the computational power of a high-end workstation (Intel i7) into a ruggedized, rail-certified form factor.

It is unique because it doesn't just "switch" power; it "thinks" about power—calculating thousands of adjustments per second to maintain a perfect 50kHz output frequency.

For engineers managing modern rail or grid infrastructure, the IR139-1 is the definitive "smart" heart of the power converter.
