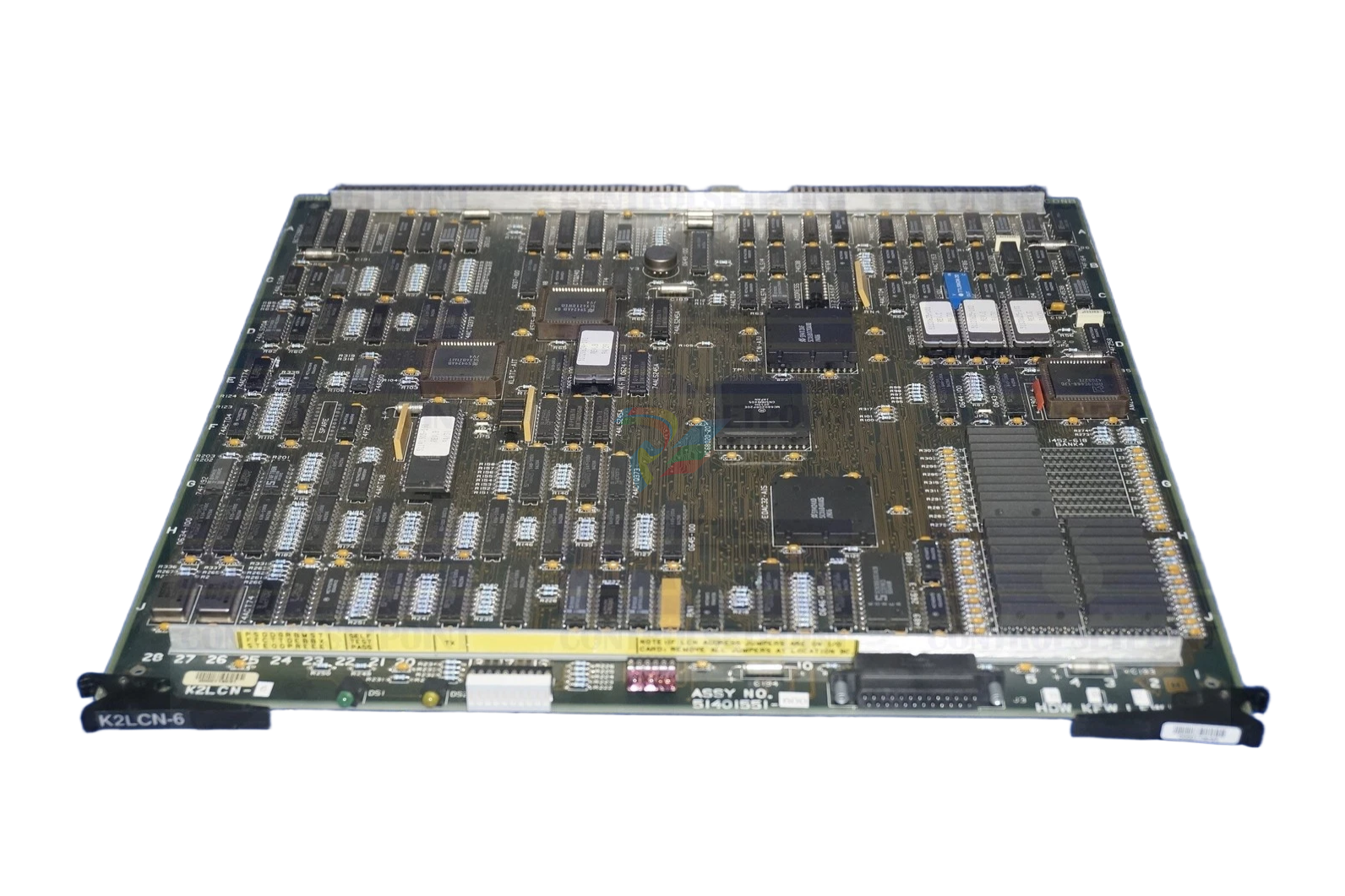

Honeywell TDC‑3000 BASIC,AM Application Module CPU,51401551‑600.K2LCN‑6

TDC‑3000 BASIC,AM Application Module CPU,51401551‑600.K2LCN‑6

1.2.2  After Startup

1. Continue your "no-smoking" rule in the operating area.  Smoke and fine dust particles

can damage cartridge disks and drives.

2. Maintain humidity levels (ideally) between 40 and 60% (lower humidity may cause

static-discharge problems).

3. Control humidity fluctuations to a rate-of-change less than 6% per hour.

4. Do not defeat temperature and humidity controls by opening doors and windows (for

example, to enhance operator comfort).

5. Keep traffic in the control-room operating areas to a minimum.  Restrict access to

authorized personnel, whose duties require control room entry.

6. Review procedures for extinguishing electrical fires and establish fire-fighting

procedures.  Refer to a qualified fire-fighting systems contractor for assistance

Plant personnel frequently use hand-held radios ("walkie-talkies"), or citizens-band

radios mounted in maintenance vehicles, for communications.  To avoid RFI problems,

review the following:

• If radio communications must take place within an operating area or process

controller area, a base-station transceiver with an external antenna should be

used.

• For other applications, radio transmitters with outputs rated as high as 5 watts

must be kept at least 3 meters (10 ft.) from the Enhanced Micro TDC3000

equipment during operation.  Transmitters with outputs higher than 5 watts

must be kept as far as possible from your equipment.  Keep equipment doors

closed while operating.

Other sources of RFI include generators, arcing relays, or motor contacts, etc.

8. Follow proper cleaning procedures when cleaning the operator area or the control room:

• Do not use water freely.  Mop should be only dampened, not wet or dry.

• Use a lint-free, antistatic-type dust cloth to remove dust.

• Do not sweep around areas containing cartridge disks or drives.

• Use a vacuum cleaner on carpets—preferably one connected to an external

system.

• Do not allow liquids to be placed on the Enhanced Micro TDC3000 keyboards

and equipment.  Liquid spills will damage electronic components
