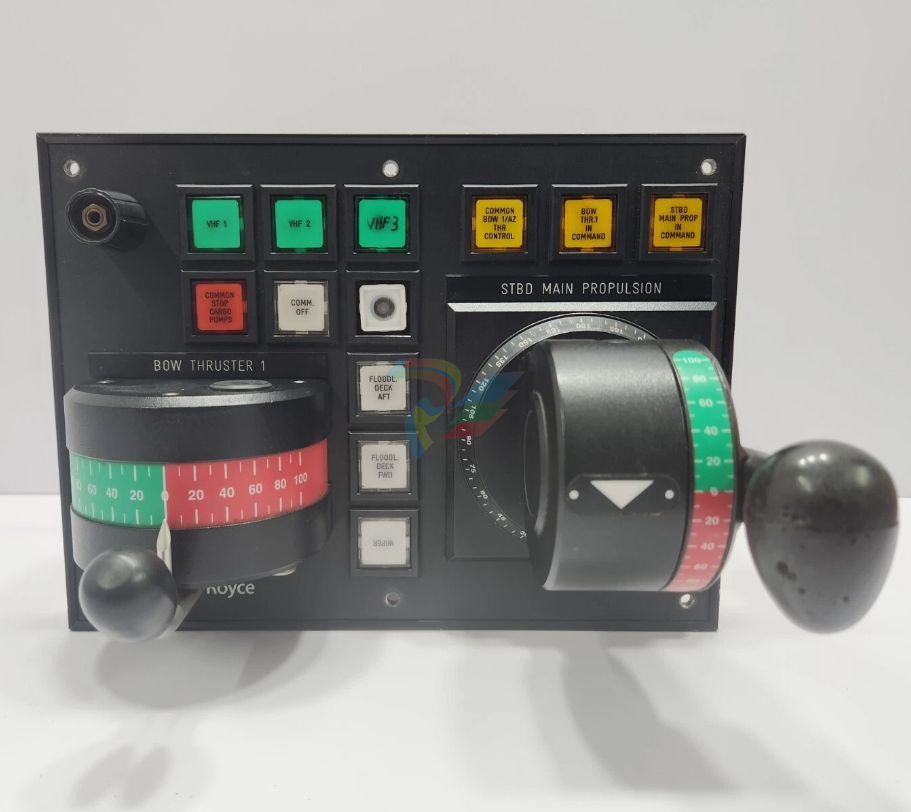

ROLLS-ROYCE HELICON THRUSTER CONTROL PANEL LF90S-01-06

ROLLS-ROYCE HELICON THRUSTER CONTROL PANEL LF90S-01-06

Control panel functions

Any operation of the system can be performed through the graphical interface. The most vital operations

can in addition be performed by using dedicated pushbuttons in the control lever base (see next section).

Display pages

Summary of features on the screen: - - - -

The Main View Page includes the following:

LAN contact

Dimmer

Speaker (not used)

24V power input - A shortcut area where the detail-level pages can be reached. - An area for COMMON IN COMMAND for all the thrusters.

- A vessel overview area with graphical and numeric information of all thrusters: - Indication thruster pitch command and actual pitch feedback - Indication thruster steering command and actual steering feedback.

- Indication thruster speed command and actual propeller speed.

When selecting one of the detail pages these will replace the overview area. The short-cut area will

remain available from all pages.

Thruster page information is project dependent. Below are typical examples of each propeller/ thruster

Main Thruster (diesel-electric system) pages includes the following functions: - Indication thruster steering command and actual steering feedback.

 - Indication thruster speed command and actual propeller speed. - Selection and indication of IN COMMAND.

 - Indication of STEERING LOCAL CONTROL. - Indication of SPEED LOCAL CONTROL. - Indication of ZERO LEVER. - Selection and indication of START/ STOP OF SYSTEM.

 - Selection and indication of START/ STOP OF THRUSTER. - Selection and indication of COMMON PORT CONTROL.

(Common control of both thrusters from port lever). - Selection and indication of AUTOPILOT ON/OFF. - Indication of DP/JOYSTICK CONTROL. - Indication of POWER REDUCED. - Dimming of lever.

Tunnel Thruster page includes the following functions: - Indication thruster pitch command and actual pitch feedback.  - Selection and indication of IN COMMAND.

 - Indication of SPEED LOCAL CONTROL. - Selection and indication of START/ STOP OF SYSTEM. - Selection and indication of START/ STOP OF THRUSTER.

 - Indication of DP/JOYSTICK CONTROL. - Indication of POWER REDUCED. - Dimming of lever.
