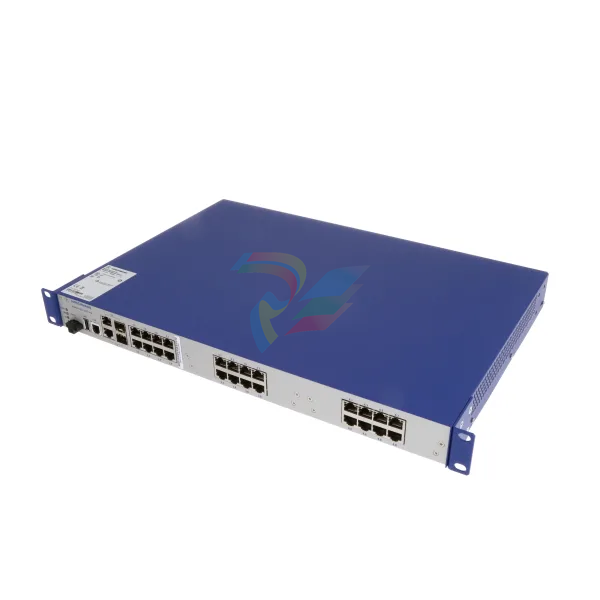

Hirschmann MACH102-24TP-FR Gigabit Ethernet industrial workgroup switch

Product information

MACH102-24TP-FR

Industrial Ethernet:Workgroup Switches:Fast-/Gigabit Ethernet Workgroup Switches, 10/24 ports :MACH102-24TP-FR

26 port Fast Ethernet/Gigabit Ethernet Industrial Workgroup Switch (2 x GE, 24 x FE), managed, Software Layer 2 Professional, Store-and-Forward-Switching,

fanless Design, redundant power supply

Delivery informations

Availability available

Product description

Description 26 port Fast Ethernet/Gigabit Ethernet Industrial Workgroup Switch (2 x GE, 24 x FE), managed, Software Layer 2 Professional, Store-and-Forward-Switching,

fanless Design, redundant power supply

Port type and quantity 26 ports in total; 24x (10/100 BASE-TX, RJ45) and 2 Gigabit Combo ports

Type MACH102-24TP-FR

Order No. 943 969-501

More Interfaces

Power supply/signaling contact 1 x plug-in terminal block, 2-pin, output manual or automatic switchable (max. 1 A, 24 V DC bzw. 24 V AC)

V.24 interface 1 x RJ11 socket, serial interface for device configuration

USB interface 1 x to connect auto-configuration adapter ACA21-USB

Network size - length of cable

Twisted pair (TP) 0 - 100m

Multimode fiber (MM) 50/125 µm Fast Ethernet: cf. SFP LWL module M-FAST SFP-MM/LC; Gigabit Ethernet: cf. SFP LWL module M-SFP-SX/LC and M-SFP-LX/LC

Multimode fiber (MM) 62.5/125 µm Fast Ethernet: cf. SFP LWL module M-FAST SFP-MM/LC; Gigabit Ethernet: cf. SFP LWL module M-SFP-SX/LC and M-SFP-LX/LC

Single mode fiber (SM) 9/125 µm Fast Ethernet: cf. SFP LWL module M-FAST SFP-SM/LC and M-FAST SFP-SM+/LC; Gigabit Ethernet: cf. SFP LWL module M-SFP-LX/LC

Single mode fiber (LH) 9/125 µm (long haul

transceiver)]

Fast Ethernet: cf. SFP LWL modul M-FAST SFP-LH/LC; Gigabit Ethernet: cf. SFP LWL modul M-SFP-LH/LC and M-SFP-LH+/LC

Network size - cascadibility

Line - / star topology any

Ring structure (HIPER-Ring) quantity switches 50 (reconfiguration time < 0.3 sec.)

Power requirements

Operating voltage 100 - 240 VAC, 47 - 63 Hz (redundant)

Power output in Btu (IT) h 58

Rated current 0.4 - 0.2 A

Power consumption 17 W

Software

Management serial Interface, web interface, SNMP V1/V2. HiVision file transfer SW HTTP/TFTP, LLDP-MED

Diagnostics LEDs, log-file, syslog, relay contact, RMON, port mirroring 1:1 and n:1. egress/ingress traffic configurable, topology discovery 802.1AB, cable tester (TX),

address conflict detection, network error detection, SFP diagnostic [temperature, optical input and output power (μW and dBm)], Trap for configuration saving

and changing, duplex mismatch detection, disable learning, Port Monitor

Configuration Comand line interface (CLI), TELNET, BootP, DHCP, DHCP option 82. HIDiscovery, auto-configuration adapter (ACD11. ACA21-USB), Watchdog configuration;

integrated DHCP server

Security Port security (IP and MAC), SNMP V3. SSH, authentication (802.1x)

Redundancy functions HIPER-ring (ring structure), MRP (IEC-ring functionality), RSTP 802.1D-2004. redundant network/ring coupling, dual homing, link aggregation, redundant 100

240 VAC power supply

Filter QoS 4 Klassen, Portpriorisierung (IEEE 802.1D/p), VLAN (IEEE 802.1Q), shared VLAN learning, Multicast (IGMP Snooping/Querier), Multicast Detection unknown

Multicast, Broadcastlimiter, Fast Aging, Multicast GMRP IEEE 802.1D

Industrial Profiles EtherNet/IP, PROFINET, configuration and diagnostic via automation software tools like e.g. STEP7. or Control Logix

Time synchronisation SNTP client/server

Flow control Flow Control 802.3x, Port Priority 802.1D/p, Priority (TOS/DIFFSERV), Prio (MAC/IP), Prio Mapping (TOS Layer2), Traffic Shaping (Unicast, Multicast, Broadcast)

Ingress / Egress

Ambient conditions

Operating temperature 0° - +50°C

Storage/transport temperature-20° - +85°C

Relative humidity (non-condensing) 10% to 95%

MTBF 14.93 years (MIL-HDBK-217F Gb 25°C)

Mechanical construction

Dimensions (W x H x D) 448 x 44 x 310 (without fixing bracket)

Mounting 19" control cabinet

Weight 4.10 kg

Protection class IP20

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD) 4 kV contact discharge, 8 kV air discharge

EN 61000-4-3 electromagnetic field 10 V/m (80 - 2700 MHz)

EN 61000-4-4 fast transients (burst) 2 kV power line, 4 kV data line

EN 61000-4-5 surge voltage power line: 2 kV (line/earth), 1 kV (line/line), 4 kV data line

EN 61000-4-6 conducted immunity 10 V (150 kHz - 80 MHz)

EMC emitted immunity

FCC CFR47 Part 15 FCC 47 CFR Part 15 Class A

EN 55022 EN 55022 Class A

Approvals

Safety of industrial control equipment cUL 508

Safety of information technology equipment cUL 60950-1

Scope of delivery and accessories

Scope of delivery MACH100 device, terminal block for signal contact, 2 brackets with fasteningscrews (pre-assembled), housing feet - stick-on, non-heating appliance cable

Euro model, CD-ROM with user manual, installation user manual

Accessories to order separately Fast Ethernet SFP modules, Gigabit Ethernet SFP modules, autoConfiguration Adapter ACA21-USB, terminal cable, Industrial Hivision Network Management

softwar
