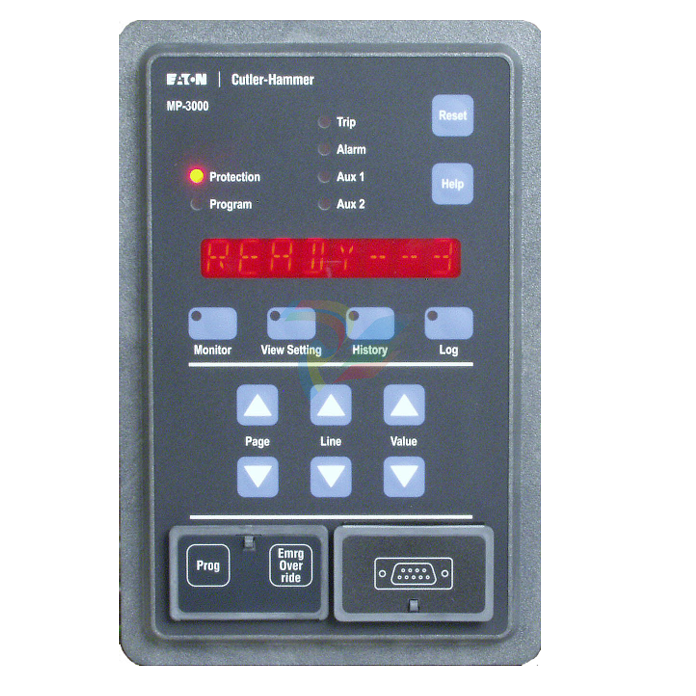

EATON MP-3000 SAFETY RELAY 66D2032GX1

EATON MP-3000 SAFETY RELAY 66D2032GX1 5A

MP-3000    Motor    Protection    Relay

IM02602002E

Instruction Leaflet for Installing, Operating, and Maintaining the

relay that is easy to set up and use.  It monitors, controls, and protects

motors against overload, thermal damage to rotor or stator, electrical

faults, and excessive starting, and many process equipment failures.

Advanced algorithms and thermal models give safe operation over a

wide range of conditions.

The MP-3000 protects 50 or 60 Hz three-phase motors of any size

or voltage level.  It can protect induction or synchronous motors, with

or without RTDs.  The relay is frequently installed in motor starters or

switchgear.

The MP-3000 Motor Protection Relay provides the following pro

tection, alarm, and control functions.  ANSI device numbers are in

parentheses.

Protection

Intel-I-Trip I2t Overload Protection (49/51)

Locked-rotor protection (49S/51)

Ultimate trip current (51)

Negative sequence current/phase unbalance and reverse

phase protection (46)

Instantaneous overcurrent trip (50)

Ground fault protection (50G)

RTD trip with accessory URTD module (49/38)

Underload trip power and current (37)

Starts per time limit (66)

Jam or stall trip (51R)

Zero-speed switch trip (14)

I2t Auto or manual reset (86)

Fail-safe or non-fail-safe trip modes

alarming

Ground fault

I2t Overload

Jam / Stall

Underload

Phase unbalance

RTD temperature with URTD module

Control    features

Transition control for reduced voltage starters

Incomplete sequence (process feedback) detection and trip

Permits user-set number of cold starts

Limits number of starts per time

User sets minimum time between starts

Antibackspin (time from stop to next start) delay

Current-based process load shedding and restoration

Long acceleration timing feature

Motor stop input for synchronous motor and condenser

applications

Remote trip input

Differential trip input

Emergency override clears blocks to motor restarting (if

enabled)

Program settings while motor runs, with controlled change

over (if enabled)

Disarmed mode for commissioning and checking in a

running process

MP-3000 features and Enhancements

The MP-3000 Motor Protection Relay incorporates the field proven

motor thermal models and sequence component measurement

techniques that were pioneered in the IQ 1000 II relay thermal models.

The MP-3000 also adds several enhancements. Significant enhance

ments and features include:

1. Recognized to meet UL 1053 Standards for Ground Fault Protec

tion Devices.

2. Power supply operates continuously at 55% of nominal supply

voltage.  It can ride through a voltage sag or loss for 30 cycles

without dropping out and taking the motor off line.

3. Optional Quick Release Drawout Case that makes removal and

replacement fast and easy.

4. New Armed/Disarmed feature for trip-free installation with Quick

Release Drawout Case.

5. User selectable trip or alarm only on relay internal failure detec

tion.

6. Real-time clock for date and time stamping of trips, alarms, and

events (Y2K compliant).

7. Expanded memory for extensive recording and logging of events,

trips, alarms, history, and motor starting current profiles.

8. Motor starting profile plot versus protection limits.

9. Easy-to-use faceplate and user interface.  Settings and data are

organized into pages under six main modes.  The modes are

Default (motor state), Monitor, View Setting, History, Logs, and

Program (change settings).

10. intel-i-trip Intelligent Overload Protection with adaptive trip char

acteristics based on RTD readings and motor operating history.

11. RTD diagnostics and communications error checking for addi

tional security against operation from RTD failures.

12. Mechanical Process Load Shedding feature provides overload

indication to control upstream processes, averting unnecessary

motor overload shutdown or jam trips, and maintaining process

continuity.

13. Download settings or retrieve metered and historical values via

the communications port.

14. Flexible user-configurable inputs and outputs for broader applica

tion.

15. Options for transition function control and monitoring on time

and/or current.

16. Emergency override function resets jogging limit functions and

clears thermal model bucket to permit restart with a time-tagged

event log.  Unit uses a secured button; this function can be dis

abled.

17. Relay can be programmed while motor runs, and new settings

are all put into effect at once in a controlled fashion.  Or, User can

set unit so programming is allowed only after motor stop.

1.3 Use of This Manual

This manual contains the following sections:

MP3010 Fixed Case, 5A CT 66D2205G01

MP3010INCOM Fixed Case, 5A CT, with INCOM Communications 66D2205G02

MP3010MODBUS Fixed Case, 5A CT, with Modbus Communications 66D2205G03

MP3010DEVICEN Fixed Case, 5A CT, with DeviceNet Communications 66D2205G04

MP3110 Fixed Case, 1A CT, Communications Capable with PONI 66D2205G05

MP3110INCOM Fixed Case, 1A CT, with INCOM Communications 66D2205G06

MP3110MODBUS Fixed Case, 1A CT, with Modbus Communications 66D2205G07

MP3110DEVICEN Fixed Case, 1A CT, with DeviceNet Communications 66D2205G08

MP3011 Drawout Case, 5A CT, No Communications 66D2207G01

MP3012 Drawout Case, 5A CT, with INCOM Communications 66D2207G02

MP3013 Drawout Case, 5A CT, with Modbus Communications 66D2207G03

MP3014 Drawout Case, 5A CT, with DeviceNet Communications 66D2207G04

MP3111 Drawout Case, 1A CT, No Communications 66D2207G05

MP3112 Drawout Case, 1A CT, with INCOM Communications 66D2207G06

MP3113 Drawout Case, 1A CT, with Modbus Communications 66D2207G07

MP3114 Drawout Case, 1A CT, with DeviceNet Communications 66D2207G08

MP3010VPI Fixed Case, 5A CT, with INCOM, URTD, and FOC 66D2036G51

MP3010VPM Fixed Case, 5A CT, with Modbus, URTD, and FOC 66D2036G52

MP3010VPD Fixed Case, 5A CT, with DeviceNet, URTD, and FOC 66D2036G53

MP3110VPI Fixed Case, 1A CT, with INCOM, URTD, and FOC 66D2036G54

MP3110VPM Fixed Case, 1A CT, with Modbus, URTD, and FOC 66D2036G55

MP3110VPD Fixed Case, 1A CT, with DeviceNet, URTD, and FOC 66D2036G56

Section 1 - Introduction - Describes the upgrade changes

from the existing IQ-1000II to the MP-3000. including retrofit

and new features list.

Section 2 - Product Overview - Benefits, feature list, use of

manual, and list of options.

Section 3 - Specifications - Provides hardware specifics

Section 4 - Operator Panel - Describes the pushbuttons,

LEDs, display window, and security door on the MP-3000’s

faceplate, plus the different modes of operation and detailed

mode description tables.

Section 5 - Programming the MP-3000 - Gives specific guid

ance for selecting setting values.

Section 6 - Installation and Wiring - Outlines procedures for

the plant electrician to follow when installing and wiring the

MP-3000.

Section 7 - Startup - Lists step-by-step procedures for ener

gizing the MP-3000 for the first time after installation.

Section 8 - Motor Thermal Protection Basics - Gives an

overview of how the hardware and software function to

gether to control, monitor, and protect the motor.

Section 9 - Application and Settings - Is intended as an aid

to the application engineer considering how and when to

apply the various features of the MP-3000.

Section 10 - Data Communications - Describes what is

needed for the MP-3000 to communicate with host com

puter systems.

Section 11 - Testing - Describes how to use the MP-3000

test functions and details recommended maintenance.

Section 12 - Troubleshooting - Provides information on how

to use the Operator Panel to recognize malfunctions.  Also,

gives specific troubleshooting procedures.

Section 13 - Drawout Case Option - Describes installing and

using MP-3000 drawout case models.

When the User is familair with the basics of operating the MP-3000.

Tables 4.1 through 4.5 should be used as guides to program and

monitor the relay.

The following accessories and options are covered in other instruction

manuals
