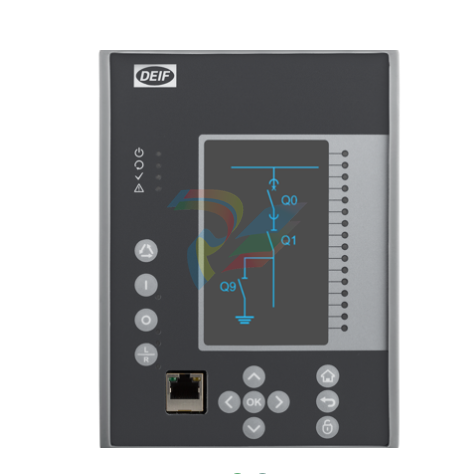

DEIF MVR-F205 Directional Feeder Protection

MVR-F205

Directional Feeder Protection

The MVR-F205 feeder and earth fault protection relay is ideal for any application requiring directional overcurrent and earth fault protection.

The MVR-205 protection device comes with comprehensive measuring, monitoring and communication features. Its standard configuration provides additional digital inputs and outputs compared to the basic variant.

- 5x Current input (configurable 0.2…10A)

- 4x Voltage input (1.00…480.00V (RMS)

- 11x Digital input

- 10x Output relay (4NO, 1CO)

- 1x IRF output (1CO)

- 2x Remote com port (1 x RJ45 Ethernet and 1 x RS-485)

- Modbus TCP/RTU, IEC 60870-5-104/103/101. DNP 3.0. SPA protocols

- DT, IEC or ANSI time/overcurrent curves with settable release delays

Marine approvals:

- DNV/GL

- Lloyds Registeres LR

- Bureau Vertias BR

- ABS (USA)

- CCS (China)

- CNK (Japan)

- IEC (Israel)

- KR (Korea)

- UKCA (UK)

- RINA (Italy)

Features

Protection Functions:

(Sensitive) Earth fault protection stages INST, DT or IDMT (ANSI 50N/51N(S))

Auto-reclose (ANSI 79)

Breaker failure protection (ANSI 50BF)

Cable-end differential protection (ANSI 87)

Cold-load pick-up block (ANSI 68)

Current transformer supervision (ANSI 60L)

Current unbalance/broken conductor protection stages INST, DT or IDMT (ANSI 46 /R/L)

Directional (sensitive) residual over-current protection stages DT or IDMT (ANSI 67N)

Directional three-phase over-current protection stages DT or IDMT (ANSI 67)

Fault locator (ANSI 21FL)

Frequency protection stages (ANSI 81O/U)

Fuse failure (ANSI 60)

Harmonic over-current protection/inrush blocking stages INST, DT or IDMT (ANSI 50H/51H/68)

Overvoltage protection INST, DT or IDMT (ANSI 59)

Positive/negative sequence under-/over-voltage protection INST, DT or IDMT (ANSI 27P/47/59P)

Rate of Change of Frequency ROCOF (ANSI 81R)

Residual voltage protection INST, DT or IDMT (ANSI 59N)

Restricted low-impedance earth fault protection (ANSI 87N)

Reverse-/under-/over-power protection INDT, DT or IDMT (ANSI 32)

Switch onto fault logic (SOTF)

Synchrocheck (ANSI 25)

Thermal overload protection (line) (ANSI 49L)

Three-phase over-current protection INST, DT or IDMT (ANSI 50/51)

Under-voltage protection INST, DT or IDMT (ANSI 27)

Voltage memory
