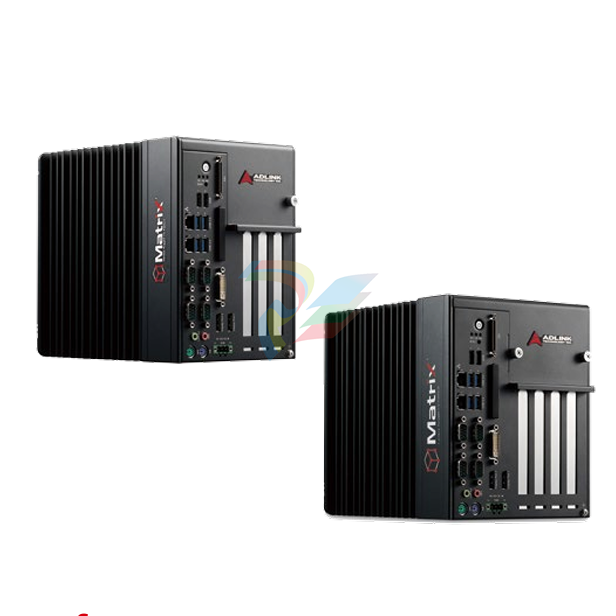

ADLINK MXC-6322D(G) Industrial Fanless Computer working

ADLINK MXC-6322D(G) Industrial Fanless Computer working

MXC-6300/6310/6320 Series

3rd Generation Intel® Core™ i7/i5/i3/Celeron® PGA Processor-based Expandable

Fanless Embedded Computer

Features

● Supports 3rd generation Intel® Core™ i7/i5/i3/Celeron®

processor + QM77 chipset

● 2 x DDR3 SO-DIMM sockets, supporting up to 16 GB memory

● 1 PCI +2 PCIe x8 slots or 1 PCI + 1 PCIe x16 for MXC-6300 series;

1 PCI + 1 PCIe x16 for MXC-6310 series, 3 PCI + 1 PCIe x16 for

MXC-6320 series

● 3 independent displays: 2 DisplayPort + 1 DVI-I

● 6 external USB ports (4 USB 3.0 + 2 USB 2.0) + 1 internal USB 2.0

● 2 Intel® GbE ports with teaming function, Intel® iAMT 8.0

● 2 CFast sockets, internal SATA III for 2 x 2.5” HDD/SSD

installation, SATA 6Gb/s and RAID 0.1 support

● Rugged, up to -20°C to 55/60°C fanless operation

(w/ industrial SSD/CFast)

Introduction

The Matrix MXC-6300/6310/6320 series is a high-performance

fanless embedded computer integrating a 3rd generation Intel®

Core™ i7/ i5/i3 processor and QM77 chipset to provide powerful

computing and superior graphic performance. Graphic-intensive

and computing-oriented applications including image and vision

measurement, machine automation, maritime automation,

surveillance and high-resolution medical imaging all benefit.

Increased PCI & PCI express (Gen2) expansion slots allow installation

of a variety of PCI, PCIe x8 or PCIe x16 add-on cards, meeting the

needs of application platform development environments. In

addition, the MXC-6300/6310/6320 series offers 2 DisplayPort and

one DVI-I port for three independent display support connections,

four USB 3.0 and two USB 2.0 ports, and 2 GbE LAN ports with

teaming function. The two 2.5” onboard SATA III ports with high

speed SATA 6 Gb/s and RAID 0. 1 ensure all data in the RAID array

is fully backed up. Built-in 16 CH isolated DIO provides overall

industrial control.

Delivering high quality, durable and compact construction, the

MXC-6300/6310/6320 series leverages a reliable fanless and

cable–free configuration, optimal thermal dissipation, and easy

installation for flexible and user-friendly system development and

application implementation in harsh environments.

Applications

● Factory Automation / Machine Vision

● Intelligent Transportation Systems / Surveillance

● Maritime Automation

● High Resolution Medical Imaging

Software Support

● Win10/ Win7/Embedded standard 7/WES 2009

● Linux (by request)

Ordering Information

● MXC-6301/ 6302/ 6303/ 6305

Intel® Core™ i7/i5/i3/Celeron®, w/ 1 PCI + 2 PCIe x8 or

1 PCIe x16 slots

● MXC-6311/ 6312/ 6313/ 6315

Intel® Core™ i7/i5/i3/Celeron®, w/ 1 PCI + 1 PCIe x16 slots

● MXC-6321/ 6322/ 6323/ 6325

Intel® Core™ i7/i5/i3/Celeron®, w/ 3 PCI + 1 PCIe x16 slots

Optional Accessories

● Optional Fan Kit

Fan kit for MXC-6300/ 6320

Fan kit for MXC-6310

● 8/ 16 GB DDR3 Upgrade

Upgrade to 8/ 16 GB DDR3 memory

● HDD/ SSD/ CFast storage

Factory-installed and test

● 160 W AC-DC Adapter

160 W industrial grade AC-DC adapter

● Wireless Kit Option

WiFi/ BT/ 3G/ 4G LTE/ LoRa wireless kit (w/ Antenna)

● Extended Temperature Option

Optional screening to extended temperature of

i7 CPU to -20 to 55°C; i5/i3/Celeron® CPU to -20 to 60°C
