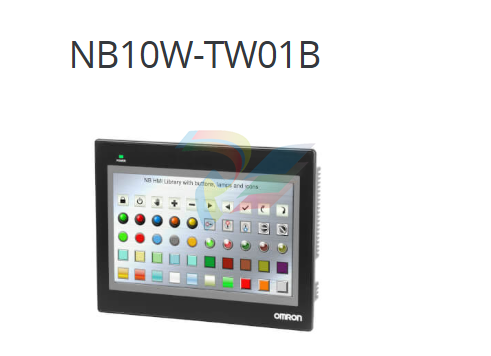

Touch screen HMI, 10.1 inch WVGA (800 x 480 pixel), TFT color, Ethernet + USB Host

Specifications

Screen diagonal    10.1 in

Number of pixels, horizontal    800

Number of pixels, vertical    480

Type of display    TFT

Frame color    Black

Number of Ethernet ports    1

Number of USB ports    2

Number of RS-232 ports    2

Number of RS-422 ports    1

Number of RS-485 ports    1

Number of colors of the display    65536

Number of grey-scales/blue-scales of display    64

Degree of protection (IP), front side    IP65

Width of the front    268.8 mm

Height of the front    210.8 mm

Width of panel cutout    258 mm

Height of panel cutout    200 mm

Built-in depth    54 mm

Product Weight (unpacked)    1950 g

Heater Burnout Alarms and SSR Failure

Alarms

CT input (for heater

current detection)

Models with detection for single-phase

heaters: One input

Maximum heater current 50 A AC

Input current

indication accuracy

CompoWay/F, or Modbus

Baud rate *

Transmission code

9.600. 19.200. 38.400. or 57.600 bps

ASCII

Heater burnout alarm

setting range *1

±5% FS ±1 digit max.

0.1 to 49.9 A (in units of 0.1 A)

Minimum detection ON time: 100 ms *3

0.1 to 49.9 A (in units of 0.1 A)

SSR failure alarm setting

range *2

Data bit length *

Stop bit length *

Error detection

Flow control

Interface

Retry function

7 or 8 bits

1 or 2 bits

Vertical parity (none, even, odd)

Block check character (BCC)

with CompoWay/F or

CRC-16 with Modbus

None

RS-485

Minimum detection OFF time: 100 ms *4

*1.For heater burnout alarms, the heater current will be measured

when the control output is ON, and the output will turn ON if the

heater current is lower than the set value (i.e., heater burnout

detection current value).

*2.For SSR failure alarms, the heater current will be measured when

the control output is OFF, and the output will turn ON if the heater

current is higher than the set value (i.e., SSR failure detection

current value).

*3.The value is 30 ms for a control period of 0.1 s or 0.2 s.

*4.The value is 35 ms for a control period of 0.1 s or 0.2 s.

Communications buffer

Communications

response wait time

217 bytes

0 to 99 ms

Default: 20 ms

*The baud rate, data bit length, stop bit length, and vertical parity can

be individually set using the Communications Setting Level.

Communications Functions

Programless

communica

tions *1

You can use the memory in the PLC to read and write

E5@C parameters, start and stop operation, etc.

The E5@C automatically performs communications with

PLCs. No communications programming is required.

Number of connected Digital Temperature

Controllers: 32 max. (Up to 16 for the FX Series)

Applicable PLCs

OMRON PLCs

CS Series, CJ Series, CP

Series, NJ Series, or NX1P

Mitsubishi Electric PLCs MELSEC Q Series, L Series,

FX3 Series, or iQ-R Series

KEYENCE PLCs

KEYENCE KV Series

Electrical Life Expectancy Curve for

Control Output Relay (Reference Values)
